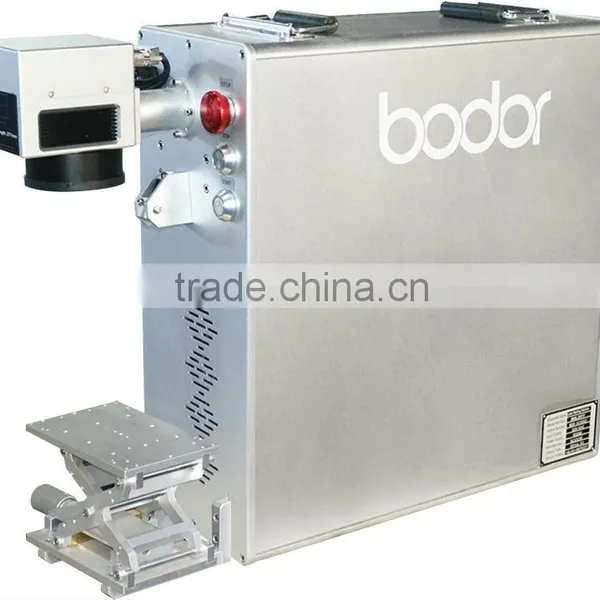

Fiber Laser Marking Machine for Marking Metal
US$ 3,999 - 8,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Laser Marking Machine for Mobile Phone Keypad and Plastic Translucent Keys 2year WarrantyUS$ 3,999 - 8,999MOQ: 1 Set -
50w Desktop Fiber Laser Marking Machine 2 Years Warranty CE ISO SGS BV TUV FDAUS$ 14,000 - 20,000MOQ: 1 Set
-
China Manufacturers 30w Desktop Fiber Laser Marking Machine 2 Years WarrantyUS$ 8,000 - 20,000MOQ: 1 Set
-
Laser Marking Machine for Jewelry and Auto Parts 2 Year WarrantyUS$ 3,999 - 8,999MOQ: 1 Set
-
Laser Marking Machine for Marking Integrated Circuits and Plastic Translucent Keys 2 Years WarrantyUS$ 4,000 - 10,000MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
EZcad
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy
0.001
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BML10FP
Power(W)
10w
Certification
CCC, CE, Other, CCC, CE, FDA
After-sales Service Provided
Overseas service center available

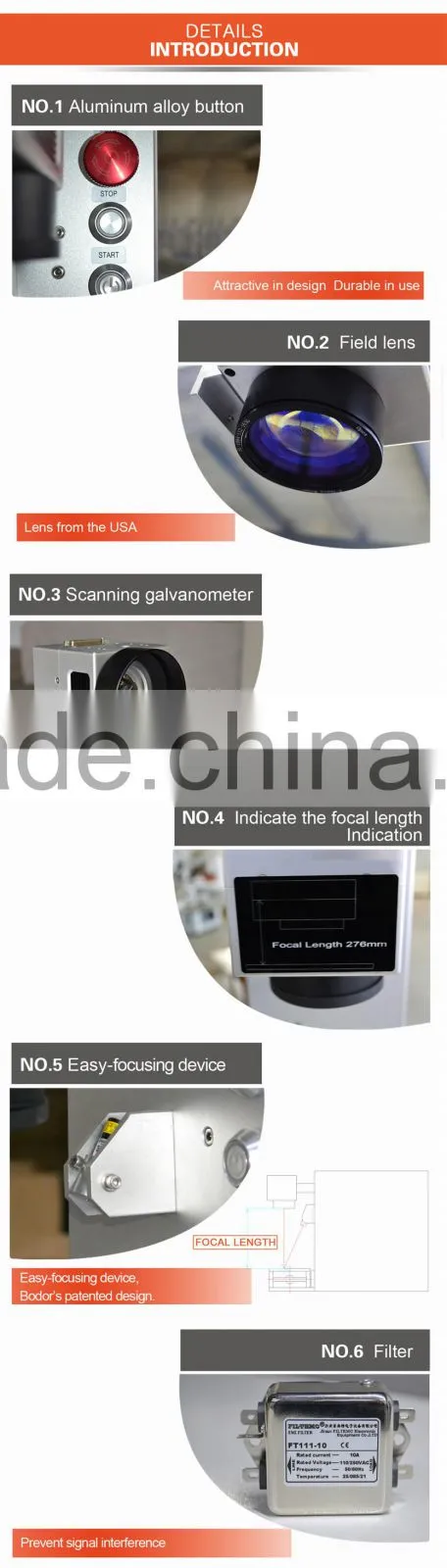

fiber laser marking machine for marking metal
Product Description
Main Features
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
Technical Parameter
| Model | BML10FP | BML20FP | BML30FH | |
| Laser Power | 10W | 20W | 20W | |
| Laser Wavelength | 1064nm | |||
| Q-frequency | 20KHz~30KHz | |||
| Divergence | 0.3mard | |||
| Marking Range | 100*100mm | |||
| Minimum Line Width | 0.02mm | |||
| Minimum Character | 0.15mm | |||
| Marking Depth | 0 ~0.5mm | |||
| Engraving Line Speed | ≤7000mm/s | |||
| Repeatability Accuracy | ±0.001mm | |||
| Beam Quality | M2:1.2~1.8 | |||
| Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber,Serialnumber,Frequency,etc. |
|||
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |||
| Working Voltage | 220V±10%/50Hz/4A | |||
| Unit Power | <0.5kw | |||
| Use of the Environment | Clean and Dust Free or Dust less | |||
| Working Condition:Humidity | 5%-75%,Free of Condensed Water | |||
| Laser Module Life | >100000 hours | |||
Applicable Industries:
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts,luggage buckle, cooking utensils, stainless steel products and other industries
Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

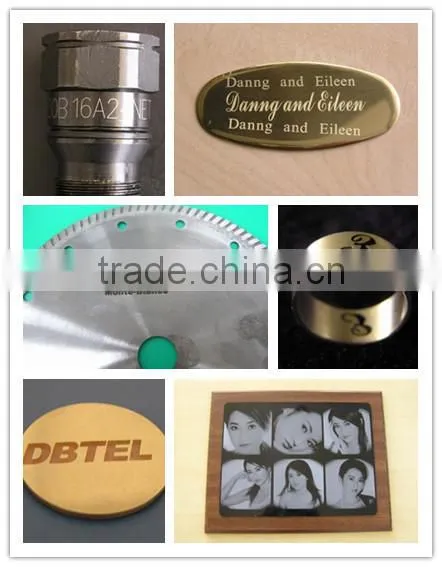

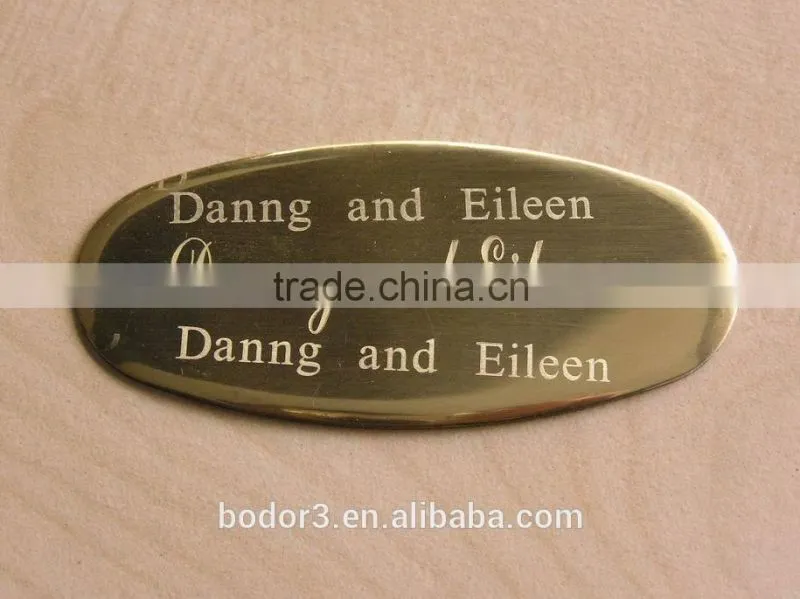

Samples
About Bodor

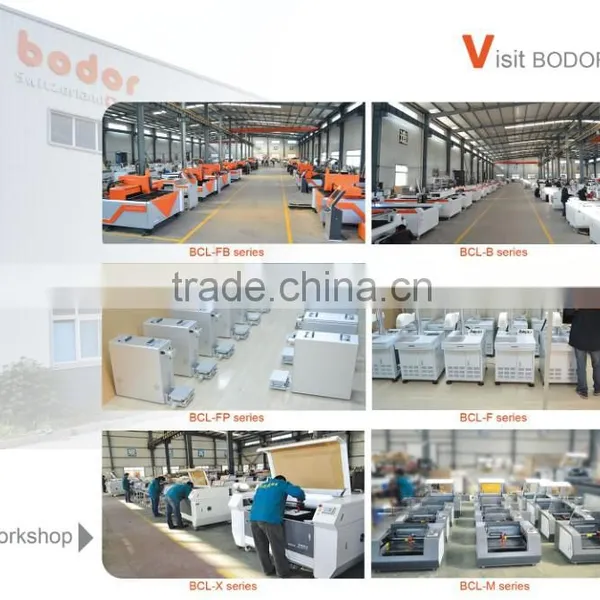

More series
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2008
Factory Size
5,000-10,000 square meters
Total Employees
201 - 300 People
