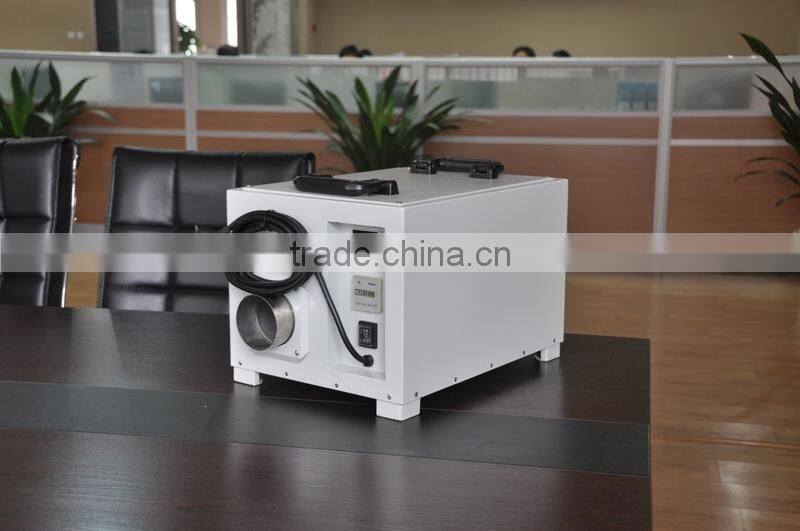

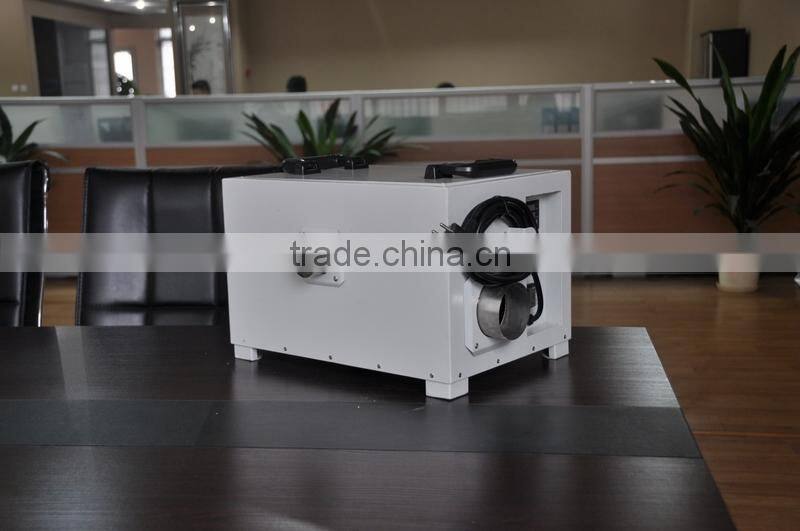

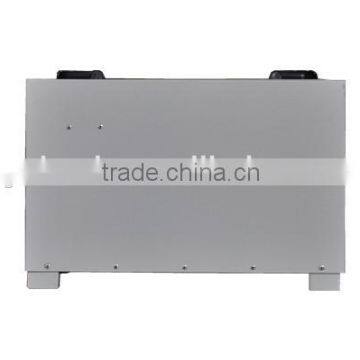

2016 New Compact Portable Proflute Rotor Dehumidifier
This New Compact Portable Proflute Rotor Dehumidifier designed for drying basement, garage, cellar or any samll/narrow space area. Good quality products come from strict control of moisture content. Incorporating Proflute rotor from Sweden. The machine has a stable performance. Quality of the end products is ensured (in respect of strength, hardness and transparency etc). Standard control by P.I.D. temperature controller from Germany, PLC controller with LCD touch control panel and dew point meter available as option.
Certifications of product: Proflute Rotor Dehumidifier
Applications: Proflute Rotor Dehumidifier
We recommend the use of Proflute Rotor Dehumidifier in the following situations:
Basement after floor;
Cellar;
Garage after floor;
Single pass air flow applications;
Process air systems
Photographic/film archive stores
Clean rooms
Electronics manufacture
Cold stores
Drying & corrosion prevention inside power station turbines
Injection moulding machines
Tank drying
Specifications:
Model |
RY-190M |
Dehumidifying capacity(20°C,60%) |
0.6kg/h |
Process Air Flow Rate |
190m3/h |
Reactivation air flow |
60m3/h |
Applied Temperature |
-10°C-45°C |
Max Power |
1300W |
Power rating |
1200W |
Voltage |
220V |
Current |
5.7A |
Dimension |
484*356*371mm |
Weight |
20kg |
Certification |
CE+RoHs |
Lead time |
10day |
Warranty time |
3year |
Competitive Advantage:
1.Accurate camputer contral system
2.Timer function
3.Proflute Rotor, imported from Sweeden, washable
4.Delaytime protection circuit
5.Silence, economical, saving, and easy operation
6.Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance
7.Real dehumidifying capacity
8.Real thickness of stainless steel, protecting the machine well
9.Front and back doors are equiped, ensure client check the machine easily
Features
1.Accurate camputer contral system
2.Timer function
3.Proflute Rotor, imported from Sweeden, washable
4.Delaytime protection circuit
5.Silence, economical, saving, and easy operation
6.Fault locator system
7.Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance
Principle of desiccant rotor dehumidifier
The core part of rotor desiccant dehumidifier is cellular structure desiccant rotor, formed by special ceramic fiber composite and silica gel. The rotor is divided into two area by a seal device, one is process area(dehumidification area), the other is reactivation area. When the dehumidifier is in operation, two streams of air pass through two areas simultaneously. One is the air that will be dehumidified by silica gel in rotor, the other is hot air used to dry the running rotor so that it will be able to remove moisture again. The moisture is taken away by the hot and very humid air steam.
As per the below picture showing:
Others:
This is a Proflute Rotor Dehumidifier that has been designed and then made to exacting standards. It can extract up to 14.4 litres of moisture per day and can continue working right down to -10°C.
Part of the design brief for the Proflute Rotor Dehumidifier series was to make a machine that removing as much moisture as possible with as low a running cost as possible.
We have been devoting to dehumidifier for many years and we are happy that we developed successfully the Ya Ke series, providing the best quality units for customers. Quality is very important because this type of dehumidifier is often used in dirty and demanding situations but it is important that the customer receives several years problem free use.
The body is made of stainless steel to provide a long lasting finish, and they have a proven history of reliability.
As one of the largest factory of industrial dehumidifier and industrial humidifier in China, we have been focusing on satisfiying the needs of customers, and we have been offering various customized goods to meet customer’s individual requirements about humidity countroling, regardless of which field using. Thanks to our advanced quality controling system and good partners and customers, our “YAKE” brand industrial dehumidifier and industrial humidifier becomes more and more popular in this humidity controling field all over the world now.
Factory Certifications
Our team has the skills our clients demand and the knowledge to provide high efficiency dehumidification solutions.
Warranty
1.The rotor dehumidifier has three-year free warranty from the date of purchase.
2.The warranty shall not apply: (i) to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper use, improper testing or unauthorized repair or (ii) to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the Product.All warranties are void if the product is opened, altered, and/or damaged.
3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR FREE WARRANTY SERVICES
4. Service Hotline: (86) 571-86817211-811 Fax Hotline: (86)571-86817100
IMPORTANT NOTICES
IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT INDIRECT GENERAL SPECIAL INCIDENTAL CONSEQUENTIAL EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT INCLUDING WITHOUT LIMITATION DAMAGES FOR INJURY LOSS OF PROPERTY BUSINESS PROFITS BUSINESS INTERRUPTION OR FROM ANY BREACH OF WARRANTY EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES IN NO CASE SHALL OUR COMPANY OR SUPPLIER S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT
Specifications designs and dimensions subject to change without prior notice;
