PZB-40 syrinige packing machine

Specifications

1.Soft pack for disposagble medial products
2. Automatic feeding for syringe
3. Capacity:12cycle/min
4.Stable peformance

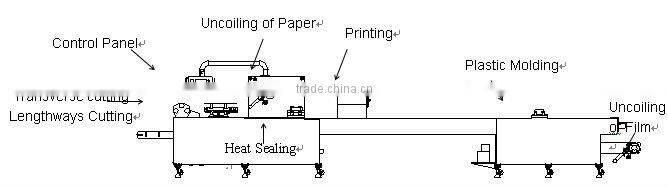

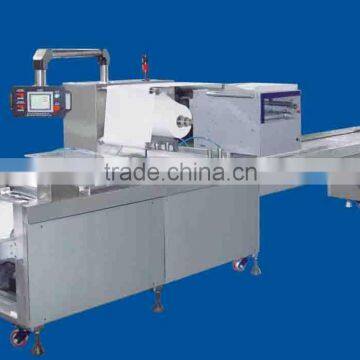

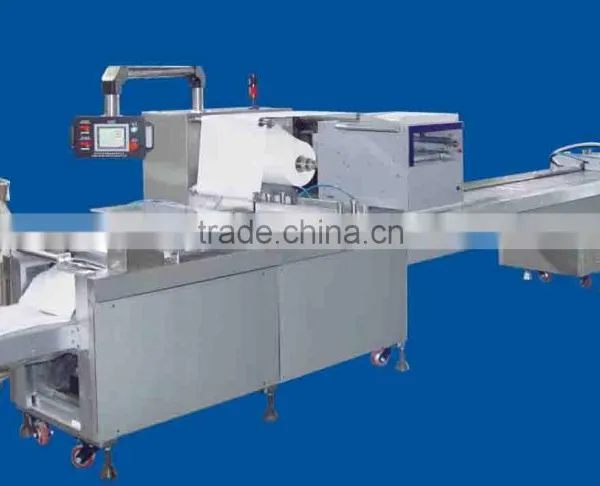

PZB Serial Thermoforming Package Machine





1. The equipment is suitable for paper/plastic composite packing, plastic/plastic composite packing

2. Equipped the  soft printer to this equipment,  it is able to print words and graphs directly on the packing product.

3. Adopt color code positioning tracking device, it can adape for matching pattern packing demand

4. As long as  changing the mold, The equipment can pack different  specification product by one machine

5. Machine parts  are mainly composed of  alloy aluminum and stainless steel.  It ensure the production environment  clean, bacterium-free

6. One-time molding and suitable for mass production

7. Easy to produce various products just by changing the mould

8. The machine is made of stainless steel and aluminum alloy, thus ensure the clean products.

Use Mitsubishi, Omron, SMC and so on import components, the vacuum pump is from Germany BECKER that can  work very  well for a long time without any  malfunction





Maximum packing width:	400mm	Maximum packing length:	398mm
Minimum packing width:	19mm	Maximum plastic-forming epth:	60mm
Working cycle:	4-7s	Film width:	422-423mm
Paper width:	410mm	Power:	380V×50HZ×9KW×3P+N+PE
Extra air-pressure:	≥0.6Mpa	Cooling water:	>5L/Min,<25°C
