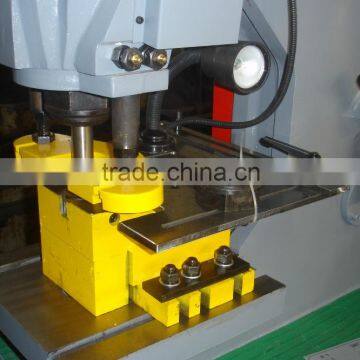

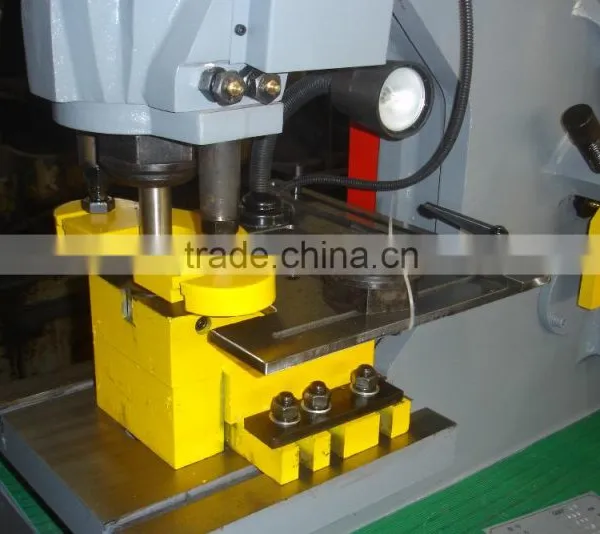

Product advantage
Full range of universal punches and dies are available unique style allow for large angle iron punching and large channel punching.large viewing window on stripped swing away design for ease of operation.large two piece gauging table with rules and stop as standard fittings.Quick charge coupling nut and sleeve for rapid replacement of charge.

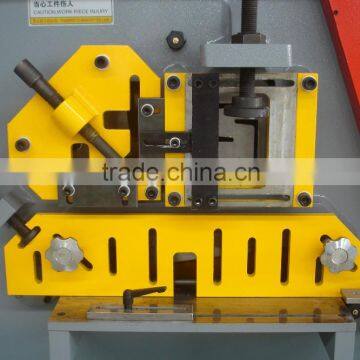

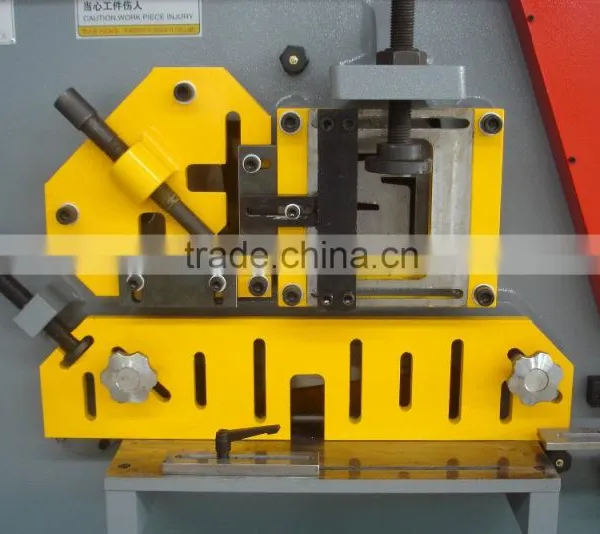

Shearing
Round and square bar shear has multiple holes for a variety of sizes.Adjustable hold down device for round or square bar,channel or beam cutting,large strong guarching for has safety.The angle shear has the ability to cut angle at 45 both top and bottom leg.
Notching
Unique design allows for cutting angle and flat bar.Electrial interlock safety guardand three gauging stop for precise positioning.
The notching section of this hydraulic ironworker is perfect for notching out metal plate,angle iron and much more,The notching station also has an oversized table with material stops.This section of the machine can be outfitted with the optional vee notcher.
bending
Also bend the plate below 500mm,ALL the components of Machine are the highest quality in their safty,function,capability and maintence.

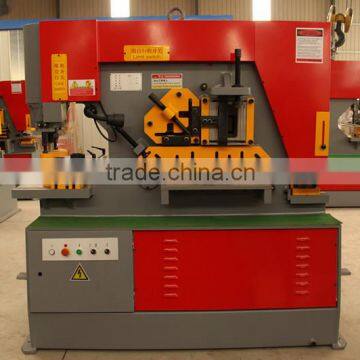

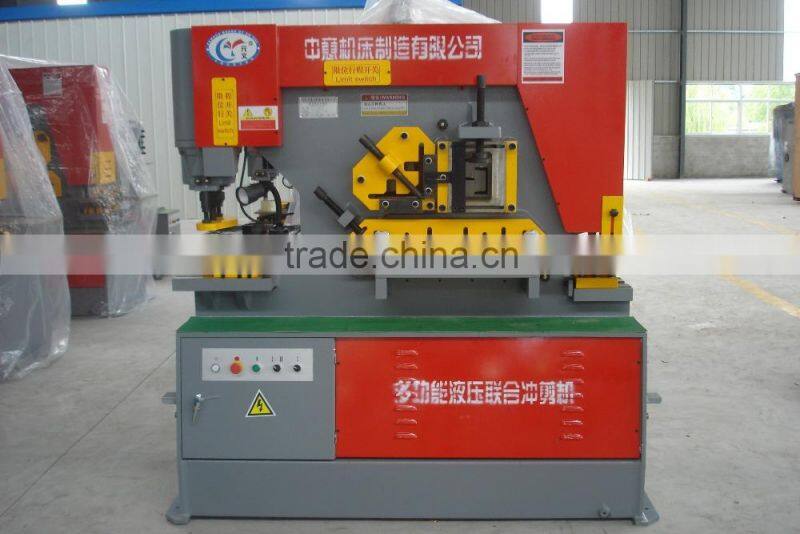

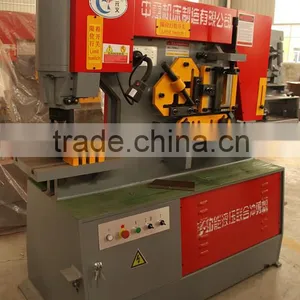

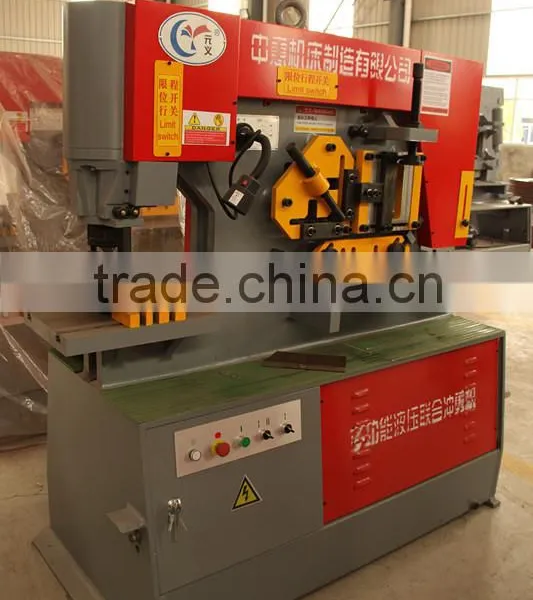

the front view of Ironworker

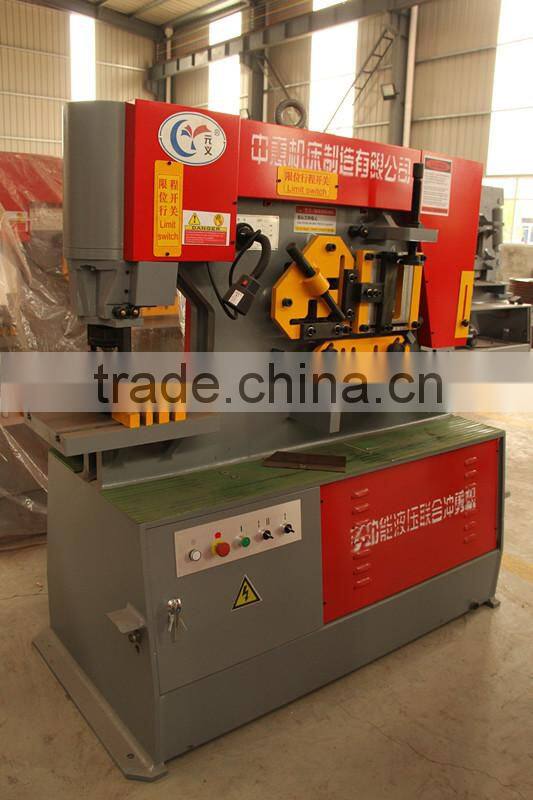

the right of ironworker

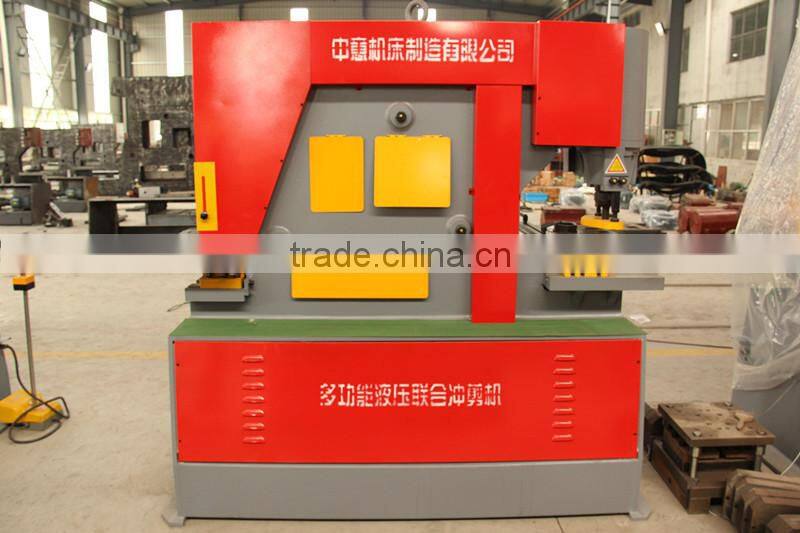

the back of ironworker
Main Use
The machine is mainly used for cutting flat bar,profile,punching hole and notching.It van be widely used in shipyard,Electric,Bridge,Automobile,Hoisting Transpotation,Metal Construction and other machinery factories etc.
Performance Features
Flat bar cutting,profile cutting,punching hole and notching work can be performed on the machine witthin the rated specification.With extra equipment ,the machine is ableice to cut,punch and bend in special shape.
The machine adopted hydraulic driving system and has a perfect structure,with light weight and low moise,stable performance and overload protecting device.
Round and square bar hasmultipe holes for a variety of size,Adjustable hold down device for round or square bar,channel or beam cutting,large strong gruarding for max safety, The angle shear has the ability to cutting angle at 45 both top and bottom leg.This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that in minimal material lost and deformity.Easyily adjustable hold-down device for accuratre plate cutting.large 15 squaring arm with inlaid scale special anti-distorted blade for quality cutting,lower blade for usable edges.There is scerm allow for grap adjust no skim needed.
Our product are widely used in steel,coal,high-speed railway,highway,automobile,electric power and other industries,products are sold throughout the country and more than 20 countries and regions,welcome to order .
China Famous Brand
CE.COC.ISI900 etc
A Grade service supper
Actual Maching Picture

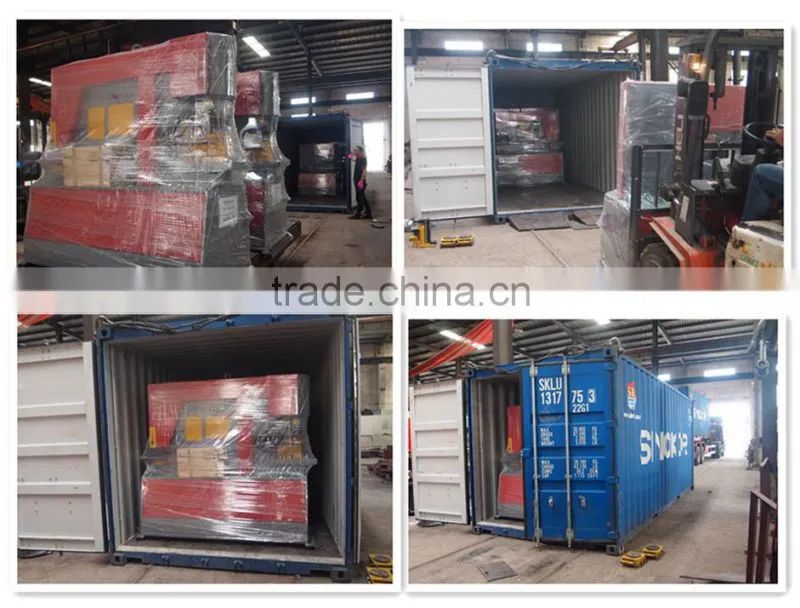

Packing Detail :Plastic film wrapped or as client's requirements.
Delivery detail:20 Days
