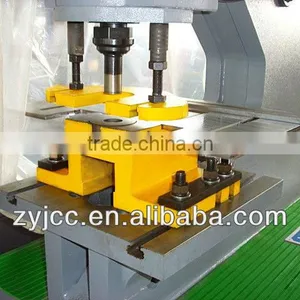

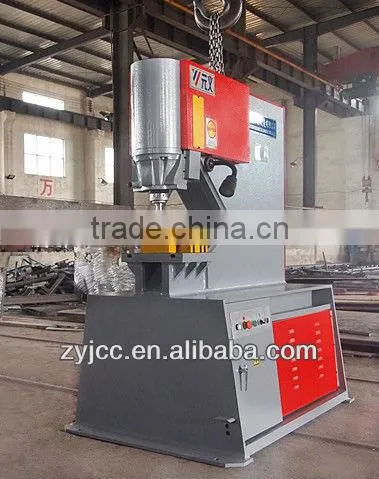

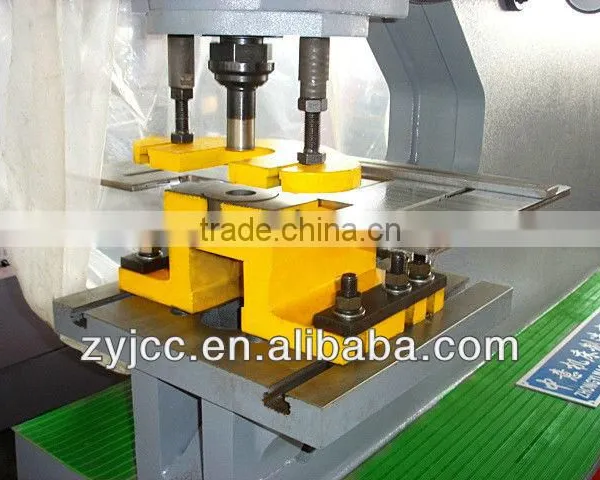

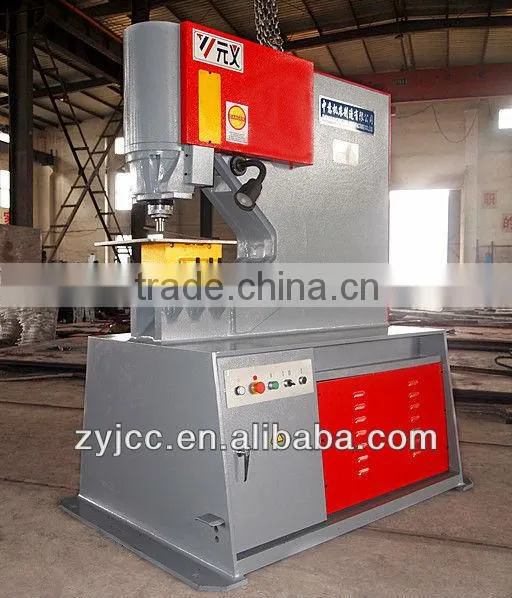

90T Hydraulic punching press machine
- 50 Set / Sets per Month
- Shanghai
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | Yuanyi | Model Number: | 30Y-140T |
Voltage: | 380V | Power(W): | 11KW | Weight: | 6.4T |
Dimension(L*W*H): | 2200x1000x2300 | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.hydraulic system2.manufacturer factory
3.high quality with good price
4.easy to operat
5.high performance
Features:
1.Our hydraulic punching machine adopts hydraulic transmission has reasonable structure,
light weight, low noise, convenient and reliable.
2.Punching machine is suitable for various kinds of steel, iron, copper, aluminum, steel,
angle steel, channel steel, forming, punching, bending, cutting operation; hydraulic
transmission, has the advantages of light weight, small volume, low noise, easy operation
and other advantages, is the modern machinery manufacturing industry. This machine is
matched with other mold, stamping, can do the special shape of sheet metal bending 90°,
V notch shear
3.This machine is mainly used for plate punching, suitable for shipbuilding, electric power,
bridge, automobile, lifting transport, metal structure and various mechanical processing
plants and other departments
Technical parameters:
Model | 30Y-140T |
Punching Pressure(T) | 140 |
Plate strength(N/mm2) | ≤450 |
Slider trip(mm) | 80 |
Trips frequency(times/min) | 8-16 |
Punching Thickness(mm) | 26 |
Max.punching diameter(mm) | 38 |
Throat depth(mm) | 600 |
Main Motor Power(KW) | 11 |
Overall diamensions(L×W×H)(mm) | 2200×1000×2300 |
Model you can choose:
Pictures:
