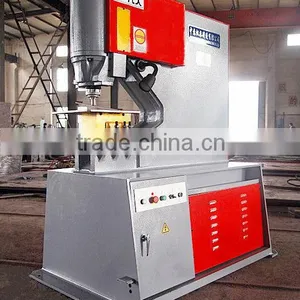

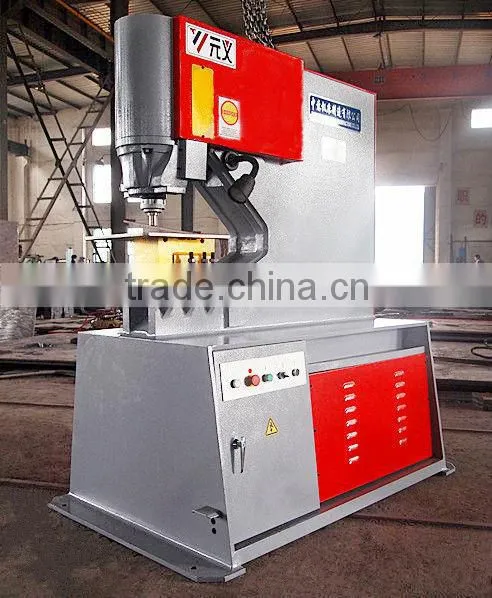

25Y-115T Hydraulic punching machine, Hydraulic Punching Machine For Steel
- 50 Set / Sets per Month
- Shanghai
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | Yuanyi | Model Number: | 25Y-115T |
Voltage: | 380V | Power(W): | 7.5 | Weight: | 3.3T |
Dimension(L*W*H): | 1800x960x2000 | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Machine features:
Punching machine is suitable for various kinds of steel, iron, copper, aluminum, steel, angle steel,
channel steel, forming, punching, bending, cutting operation; hydraulic transmission, has the
advantages of light weight, small volume, low noise, easy operation and other advantages, is the
modern machinery manufacturing industry. Our punching machine is matched with other mold, can
do the special shape of sheet metal bending 90°,V-notch shear
Hydraulic punching machine is mainly used for plate punching, suitable for shipbuilding, electric power,
bridge, automobile, lifting transport, metal structure and various mechanical processing plants and
other departments. Our hydraulic punching machine adopts hydraulic transmission, the reasonable
structure, light weight, low noise,convenient and reliable
Technical parameters:
Model | 25Y-115T |
Punching Pressure(T) | 115 |
Plate strength(N/mm2) | ≤450 |
Slider trip(mm) | 80 |
Trips frequency(times/min) | 10-18 |
Punching Thickness(mm) | 25 |
Max.punching diameter(mm) | 35 |
Throat depth(mm) | 480 |
Main Motor Power(KW) | 7.5 |
Overall diamensions(L×W×H)(mm) | 1800×960×2000 |
Model you can choose:
Pictures:
