Home > Products > Hydraulic punching machine > 30Y-140T Single-head Hydraulic Punching Machine

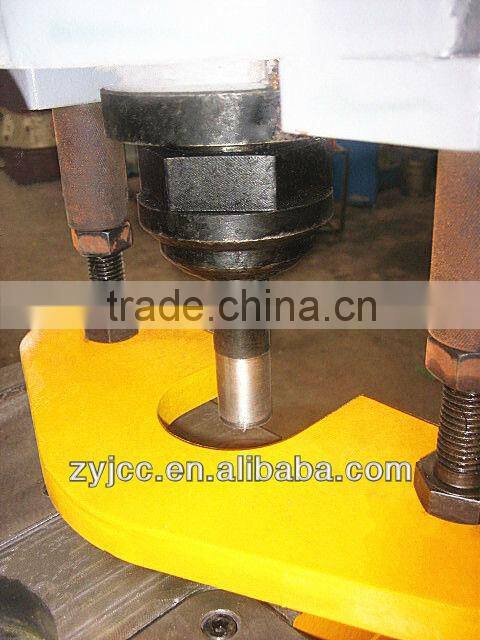

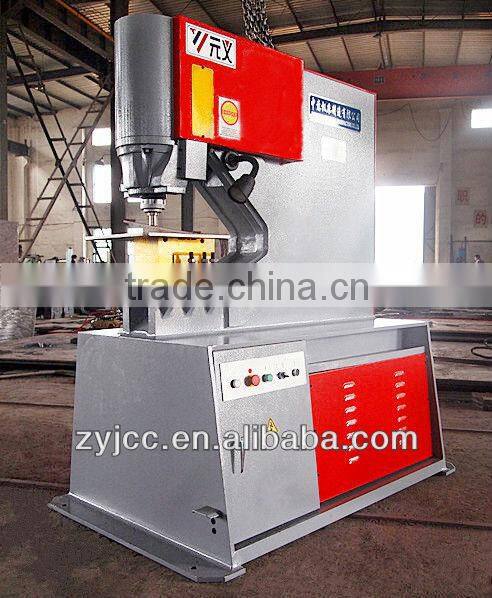

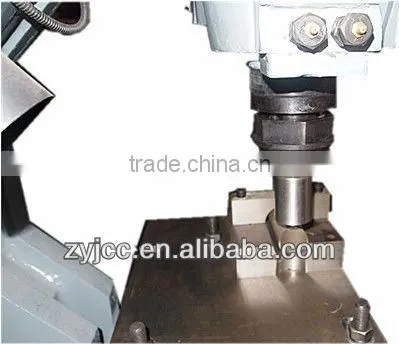

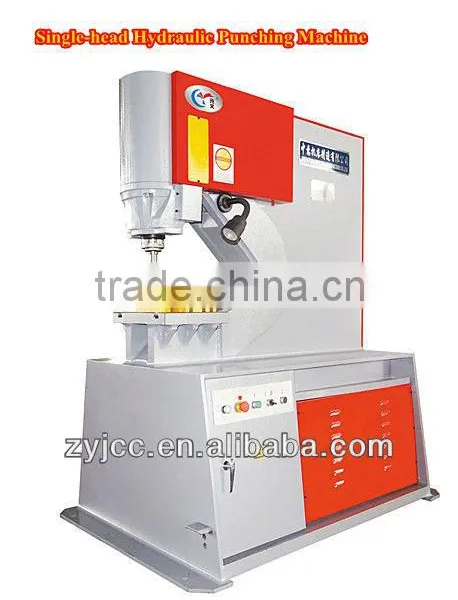

30Y-140T Single-head Hydraulic Punching Machine
- 50 Set / Sets per Month
- Shanghai
- T/T
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | Yuanyi | Model Number: | 30Y-140T |
Voltage: | your factory | Power(W): | 11KW | Weight: | 5.8T |
Dimension(L*W*H): | 2200x1000x2300 | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Simple structure2.High precision &Easy operate
3.Hole punchine machine
4.Our lastest new model
5.ISO9001:2000
Technical Parameters | |
Model | 30Y-140T |
Punching Pressure(T) | 140 |
Plate strength(N/mm2) | ≤450 |
Slider trip(mm) | 80 |
Trips frequency(times/min) | 8-16 |
Punching Thickness(mm) | 26 |
Max.punching diameter(mm) | 38 |
Throat depth(mm) | 600 |
Main Motor Power(KW) | 11 |
Overall diamensions(L×W×H)(mm) | 2200×1000×2300 |
Features
Using hydraulic transmission , is China’s currently latest Multi function United punching machine products , can plate Flat steel ,
square steel , round steel , angle steel , channel steel ,I beam to punch
Company Introduction
Anhui Zhongyi Machine Tool Co., Ltd. specializes in the production of "Yuanyi" series
bending machines, metal plate shearing machines, Press brake , punching & shearing
machines and forging and pressing dies. Our company was established in 2003 and
there are 78 staff members. Our products have won good appreciation from customers
since entering the market. We supply good pre-sales service, during-sales service and after-sales service. These services meet users' demands.
Equipment
Contact Us
- Anhui Zhongyi Machine Tool Manufacturing Co., Ltd.
- Contact nameLeaves Ye
- Phone0086-0555-6769789
- AddressLiangbo Road, Bowang Town, Bowang District
