10.9 or 12.9 grade zinc wheel shoulder stud

Specifications

1) lower price, higher quality, best service
2) passed over 72hrs neutral salty spary test
3) ISO 9001, TS16949, TUV, BV, SGS

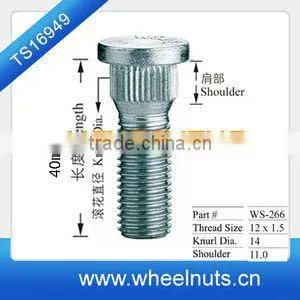

10.9 or 12.9 grade zinc wheel shoulder studs

Item no.: WS-266#

Thread size: M12*1.5

Knurl Dia.: Φ 14.0mm

Shoulder Height: 11.0mm



Electroplating

* We are the first and unique one in China, own autometic electroplating production line,  Our products passed above 72 hours NSS neutral salty spray test.  the thinckness of nickle  more than and equal to 30 μm,  thinckness of chrome equal to 3 μm.







Thread Size Available

* M12*1.25, M12*1.50, M14*1.25, M14*1.50, M14*2.0, 3/8"-24,7/16"-20, 1/2"-20, 9/16"-18, etc.



Finish Available

* Chrome, Zinc, Dacromet, Blacking, Color Electrophoretic, etc



Availabe in different colors. color code like below list





Material

* Carbon Steel, Alloy Steel, Heat-treatment, we purchase 80% steel from Shanghai baogang ------ one of China's most famous company


Mechanical performance grade

* 10.9 or 12.9 grade,  acquiesce in 10.9 grade



Packages Available

* double blister (clamshell) , cardboard box, head card, plastic box, foam box or  brown paper.

All wheel locks can be packed in 4 locks +1 key (called 4+1 for short). 4+2, 5+1, 5+2, 16+1,......







*We here only list the regular specification, please inform us if you have any requirement for different design or size.
