Specifications
1) lower price, higher quality, best service2) passed over 72hrs neutral salty spary test
3) ISO, TS16949, BV, SGS, TUV

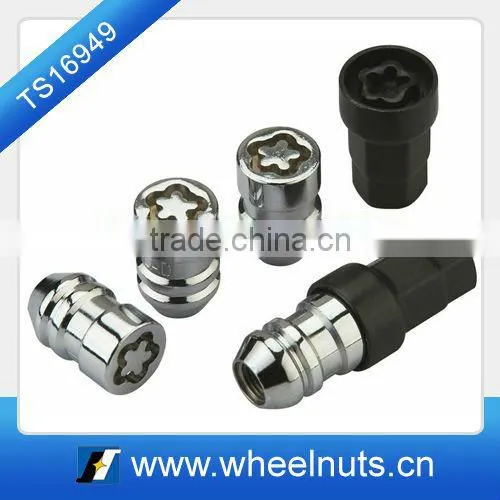

M12 socket puzzle locks
Item No,: lock: 42236 Φ23mm 35.7mm long 60 degree cone seat
key: K778 Φ28mm 42.3mm long 2/3" & 3/4" hex or 3/4" & 13/16" hex
Electroplating
* We are the first and unique one in China, own autometic electroplating production line, Our products passed above 72 hours NSS neutral salty spray test. the thinckness of nickle more than and equal to 30 μm, thinckness of chrome equal to 3 μm.
Thread Size Available
* M8*1.25, M10*1.25, M10*1.50, M12*1.25, M12*1.50, M14*1.25, M14*1.50, M14*2.0, 3/8"-24,7/16"-20, 1/2"-20, 9/16"-18, etc.
Finish Available
* Chrome, Zinc, Dacromet, Blacking, Color Electrophoretic, etc
Material
* Carbon Steel, Alloy Steel, Heat-treatment, we purchase 80% steel from Shanghai baogang ------ one of China's most famous company
Mechanical performance grade
* 8 or 10 grade, acquiesce in 6 grade for both key and lock
Packages Available
* double blister (clamshell) , cardboard box, head card, plastic box, foam box or brown paper.
* all wheel locks can be packed in 4+1, 4+2, 5+1, 16+1, 20+1.........
* The tamper-resistant clamshell package can save your space and enhance the apperance of your retail display
*We here only list the regular specification, please inform us if you have any requirement for different design or size.
Certificate
Utility Model Patent
Manufacturing Systems
Test and Measurement Center
