KEYLAND PV Panel Xenon Flash Lamp Solar Simulator for Sale

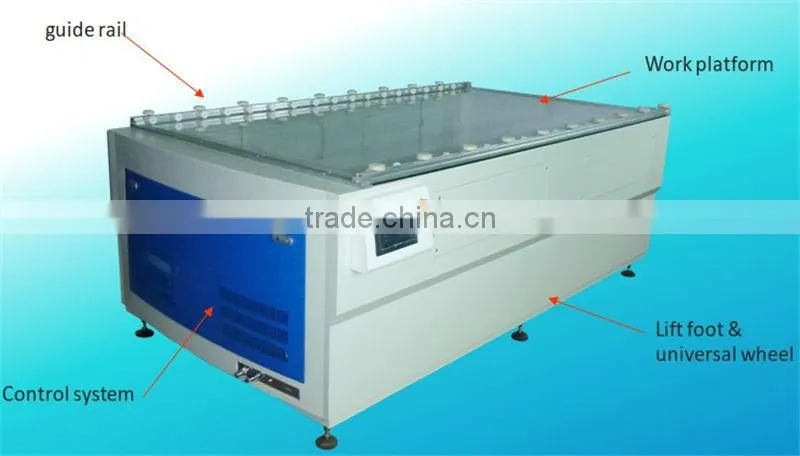

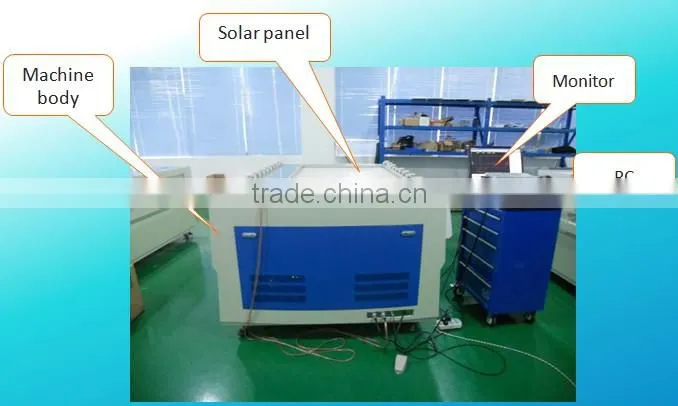

KEYLAND AM 1.5 Xenon Flash Lamp Solar Simulator can test either crystalline or thin film modules and can be integrated into your fully automated module production line, or operated in manual mode. In automatic mode, a programmed process sequence provides consistent module testing and offers optional automated loading and unloading of modules. In manual mode, the controls can be operated as desired.
Measuring parameters
| SL | Parameters |
| 1 | I-V characteristics under illumination |
| 2 | Open circuit voltage (Voc) |
| 3 | Short circuit current (Isc) |
| 4 | Maximum power (Pmax) |
| 5 | Maximum Power Current (Im) |
| 6 | Maximum Power point Voltage (Vpm) |
| 7 | Module/Cell Efficiency (EFF) |
| 8 | Filling Factor (FF) |
| 9 | Series Resistor (Rs) |
| 10 | Shunt Resistor (Rsh) |
| 11 | Module temperature (Temp) |
| 12 | Intensity of illumination |
| 13 | Date and time of measurement |
| 14 | Serial number of module |
- Wide application
Adjustable flash pulse width of 10-100ms. Can measure Crystalline Silicon PV module and Thin Film solar panels.
- Easy operation

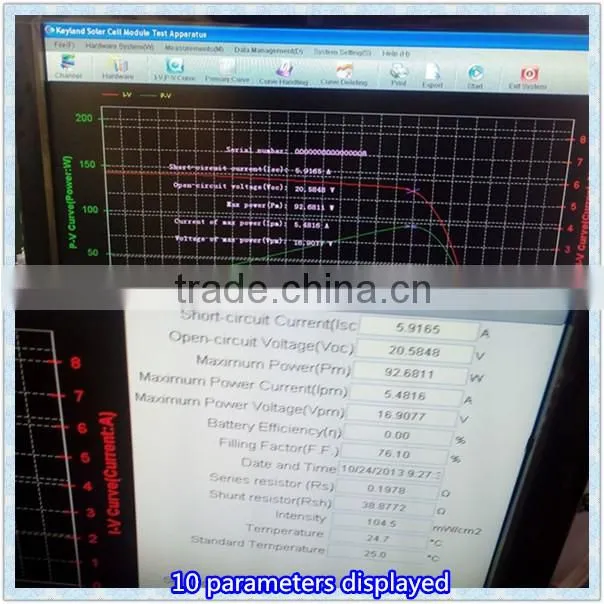

10 parameters displayed in Tabulated and Graphical.

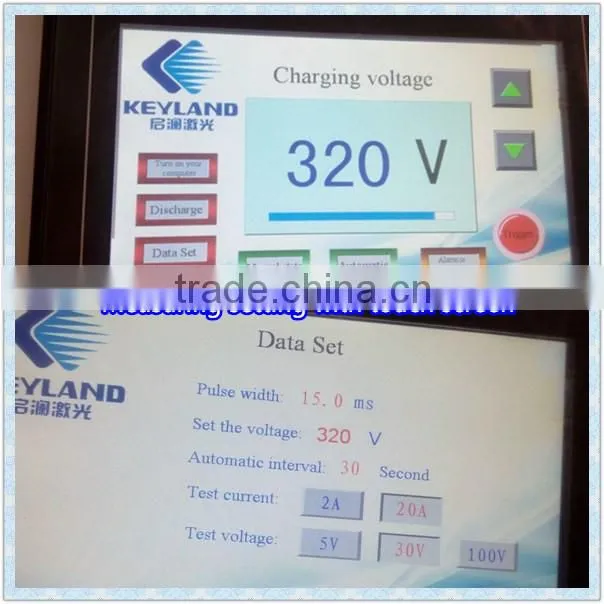

Touch screen can reduce the cost of operator.
Voice prompt & Flashes counting display
- Long lifespan
German made Xenon Lamp with 200,000 times flashing.
- High accuracy
4-wire measuring
High speed 14bits synchro data acquisition card
8,000 data collection points
Third party inspection certificates for class AAA

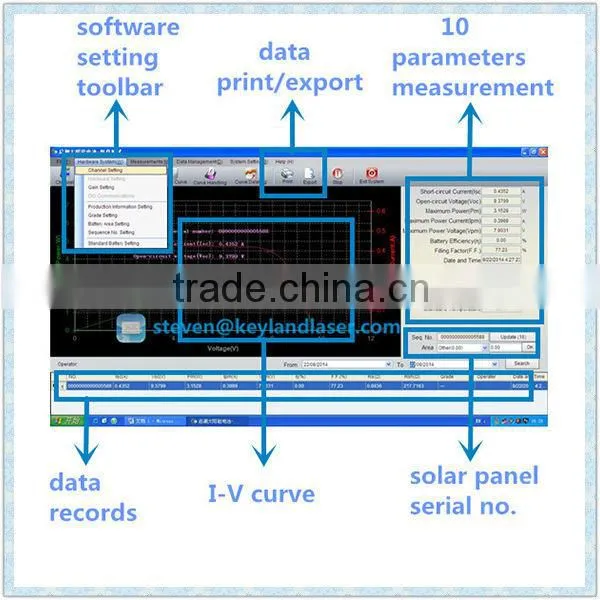

- Data record
All the testing data can be printed.
Export as excel file.
Saved in the data base compatible with PLC system.
Xenon Flash Lamp Solar Simulator has Class AAA and Class B grades.
| Model | GTM-AAA | GTM-B |
| Solar simulator | Comply to IEC60904-9/JISC8933 | |
| Irradiance | 100mW/cm²(20-120mW/cm² adjustable) | |
| Degree of ununiformity | ≤±2% | ≤±3% |
| Degree of instability | ≤±2% | ≤±2% |
| Degree of test result conformity | ≤±0.5% | ≤±1% |
| Error tolerance of electrical properties | ≤1% | ≤±2% |
| Pulse duration | 10-30ms / 100ms(customized) | |
| In effective irradiated area | 1200x2000mm(48"x80"), 5W-300W | |
| Testing voltage | 0-100V (resolution 1mV) | |
| Testing current | 0-20A (resolution 1mA) | |
| Testing parameters | Isc, Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh | |
| Optional accessories |
1. Manul/Automatic sliding tack feed-in match production line |
|
DEMO VIDEO
| Solar panel measuring | http://youtu.be/MuYI3yO-46Y |
| automatic solar panel testing | http://youtu.be/KYLIq0_MR3o |
KEYLAND AM 1.5 Xenon Lamp Sun Simulator Solar Panel Tester after sale services include email, online chat, video, remote control and on-site installation and training.
More about KEYLAND PV Panel Xenon Flash Lamp Solar Simulator price please contact us.
