High cost-effective solar cell testing equipment Distributors/Agents wanted !
High cost-effective solar cell testing equipment Model KEL830/KEL160
What's the function of solar cell testing equipment ?
solar panel /cell el tester for detecting mechanical defects such as brokens, cracks,
faulty electrodes, and other flaws that could compromise the long-term reliability of a crystalline solar module of solar panel production line.
What are the main parameters of the solar cell testing equipment ?
| Operation table height | 950mm |
| Capture Mode | Single camera/ Dual camera optional |
| Caramer type | High Performance Cooled CCD Camera with Air cooling system |
| Module laying platform | Ultra toughened glass |
| Max testing area | 1200*2100mm / 48"x84" |
| Resolution | 8.3 Megapixels / 16 Megapixels |
| Sensitivity | can detect crack width less than 0.2μm |
| Exposure time | 0 ~ 9s continuously adjustable |
| Image acquisition time | 1-60s adjustable |
| Power supply | 220V 10A |
| Configuration | 1set machine frame |
| 1set SONY infrared camera | |
| 1set Industrial-grade near-infrared optical module | |
| 1set Computer | |
| 1pc user manual | |
| Software functions | Barcode scanning input File name auto saved acc. to barcode Auto save defects classification easy to check |
What are the features of the solar cell testing equipment ?
- SONY high resolution NIR camera brings good quality image.
- Semi-auto/Full auto for selection
- SQL Data base available
- Mitsubishi/SIEMENS/Beckoff PLC for selection
- Single/Double camera available
- Powerful software can mark defects type/position which highly improve the working effiecieny

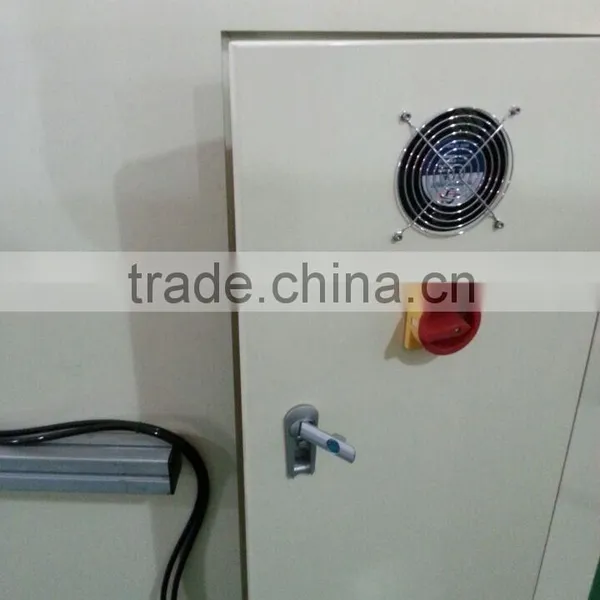

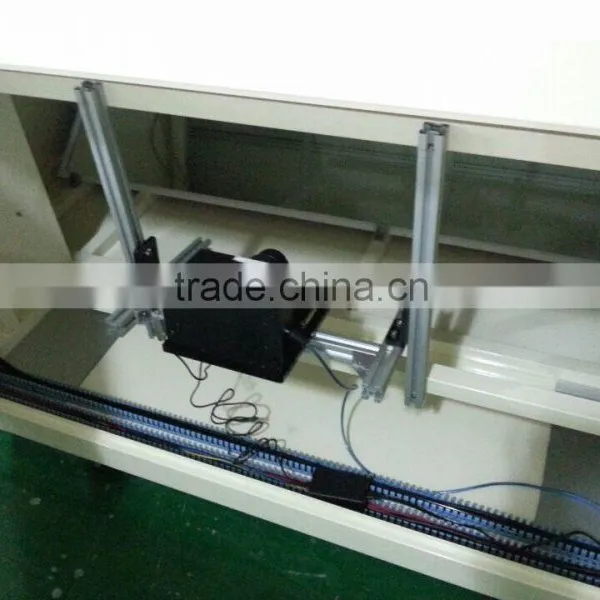

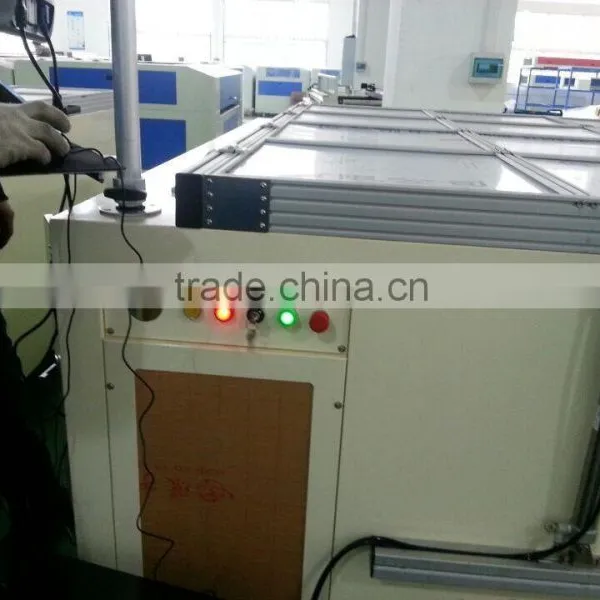

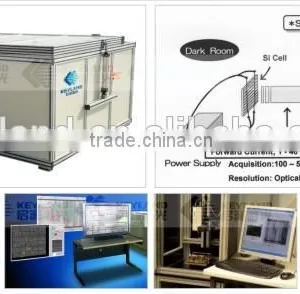

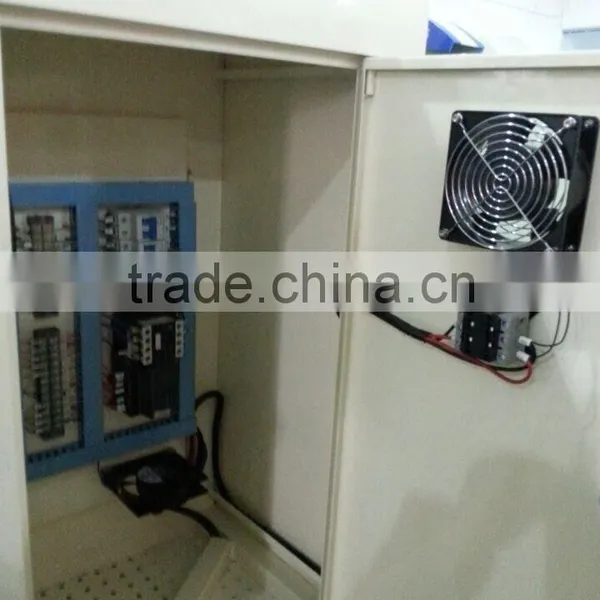

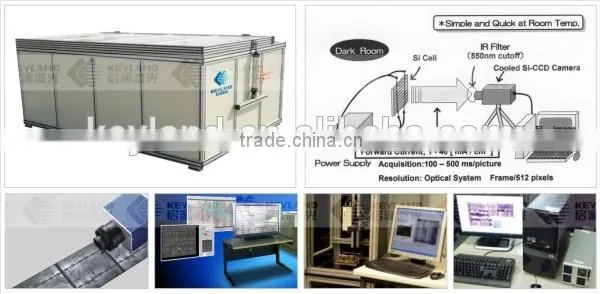

Detailed pictures for you to know more about the machine:
More reasons to choose us:
Price advantages:
We are direct manufaturer,no middle man, you can get competitive solar cell testing equipment price .
Quality advantages:
More than 20 years experience in laser industry, we are able to provide
professional design machine.
We are CE/ISO/compliant, you can get high quality product;
Service advantages:
We can ship the machinery to your door. All you need is providing us your address in the inquiry.
We are direct manufacturer ,you can get a satisfactory after sales service.
One year guarantee period for product quality.
Lifelong maintenance and spare parts supply.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.
Package:
Standard export Veneer Case.
Delivery time:
5 to 10 working days after receiving payment.
Our service:
1.12 Months warrenty on the whole machine (laser tube and lens are consumble parts)
2. Long life time technical support.
About us
Machines we supply:
Certificate:
Lizzy offers faster and better services! Just click "send"now!
You are welcome to contact us for getting more information about solar cell testing equipment .
