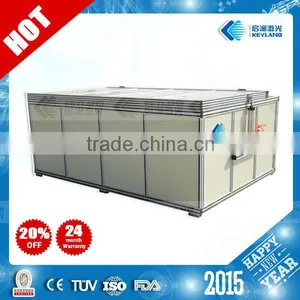

30% Promotion Electroluminescence test for the production of solar panel
EL Tester Equipment
Over 10 Years Solar Experience / SENC Solar Exhibition / Service Over 35 Country Customer
Broken Solar panel Testing Machine Application:
Testing and inspect the micro-cracks,breakage,broken fingers of the cells and pseudo-soldering of the modules;Also applicable to check or find the unmatch of the cells or solar panel in different power by using EL tester machine.
Broken Solar Panel testing Machine Features
1, Key parts we adopt original assembly form Japan,
2,The camera lens adopt form Japan,can adjustable the site of focus,enhance the picture charity.
3,Closed type of design for optical path to ensure the long-standing stable operation and suitable for the environment.
4,Design of Software more hommization, easy operation with comperhensive functions
Technical Data of Broken Solar Panel Testing Machine
| Model | EL-K-1600 | EL-K(D-1600) | EL-K-2100 |
EL-K(D)-2100
|
| Camera Chip | Sony | |||
| Camera Brands | Nikon | |||
| Shooting mode | Single Camera | Dual Camera | Single Camera | Dual Camera |
| Max.Resolution | 4928H*3264V | 4928H*3264V*2 | 5616H*3744V | 5616H*3744*2 |
| Exposure Time |
0~60s Adjustable
|
|||
| Current / Voltage | 10A/60V |
|||
| Software |
1.Automatic barcode scanning and file naming with barcode scannd 2.User-defined defect type,Automatically creating defect folders,image files and data-querying 3.Extendable MES interface,automatic image data uploading 4.Image solution adjustable to satisfy different user's demend |
|||
| Detection Ability | Crack,Black Spot,Mixed Wafters,Process Defect,Cold Solder Joint | |||

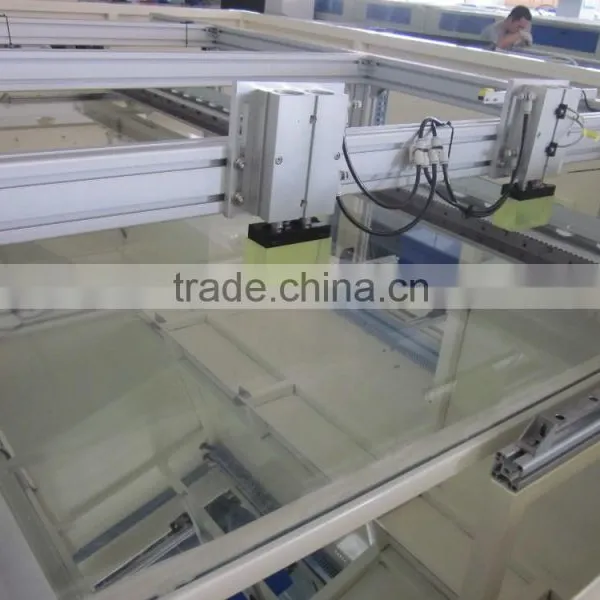

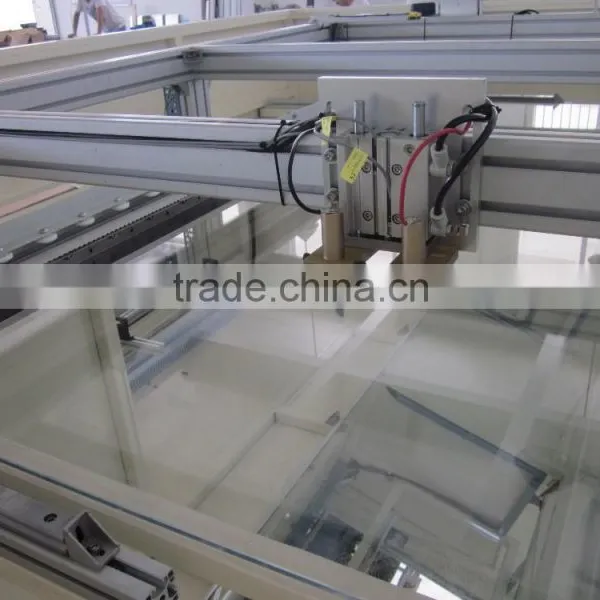

Automatic Main Point:
1> High Strength structural steel frame to ensure Moving stable.
2> Equip with long - short side of product to provide Suitable platfrom
3> Automatic-door design can make sure the checking process no light damge.
4> Automatic locate machine can moving the product to the assigned place
5> Automatic high definition CCD to identify produce good or bad.
6> Belt translation can make sure CCD vedio area no barrier.
7> Equip with software to design automatic product in and out.
EL-Tester System Configuration
|
Image-retrieving module
|
High resolution and sensitivity near-infrared camera; High SNR cool sensor; Exposure time ranges from 1s to 60s to satisfy user's varied demand; Lens with high transmittance and large field of view; |
| Power module |
Highly stable current/voltage source with short-circuit protection; nnovative design of probe, enable the solar module to be powered on easier. |
|
Software suite |
Main interface panel System configuration panel; Hardware debug panel; User management panel. |
| PC | Normal use model |
The capture picture take from the EL-Tester
If you are interesting in or have plac to purchase, pls contact me freely.
skype;simmer991
Phone:+86-159-2648-1511 & Whatsapp: +86 159 2648 1511
Office:+86-27-8797-0568
