Keyland Solar Electroluminesc Tester with Brand Camera
Who need to use Keyland Solar Electroluminesc Tester ?
- Solar panel production line
- Seller or re-seller of solar panels
- Lab. / R&D
- University
"Electroluminescent" of solar photovoltaic module defect tester,
USE highly sensitive infrared camera with specialized optical imaging systems, and high-sensitivity camera module which can help users know the solar module and panels from defects in material or workmanship defects.

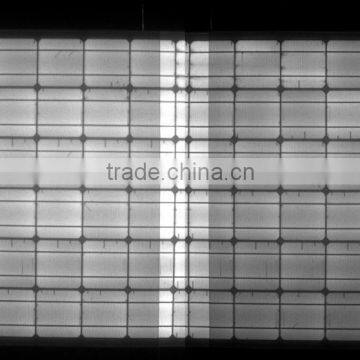

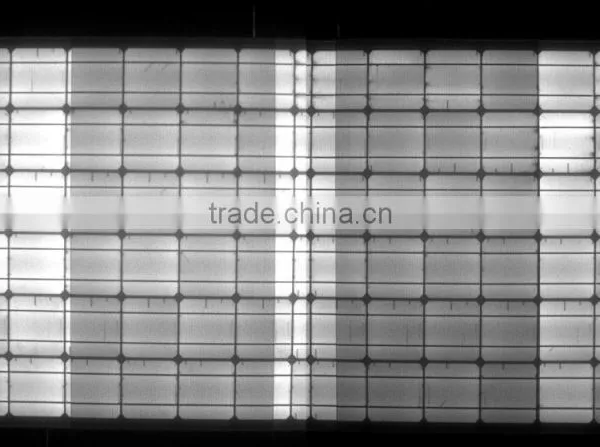

What can be test by Keyland Solar Electroluminesc Tester ?
Defect detection types:
- Defects of Solar cell material (debris, cracked, broken gate, pollution)
- Defects from the welding process (Weld, Desoldering)
- Mix different levels Cell

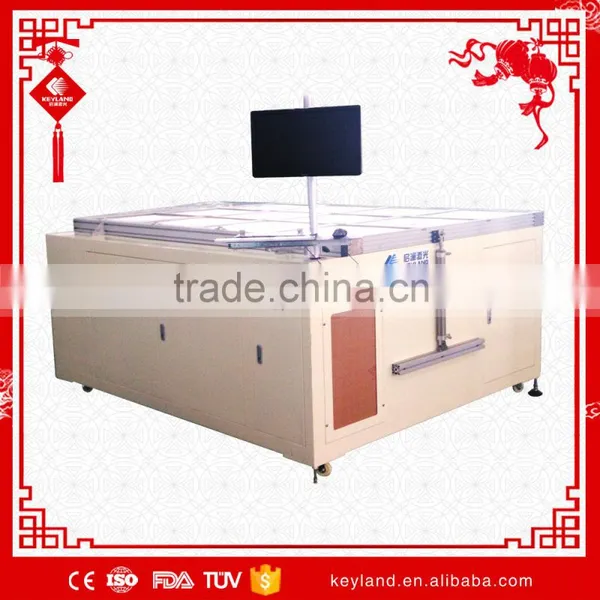

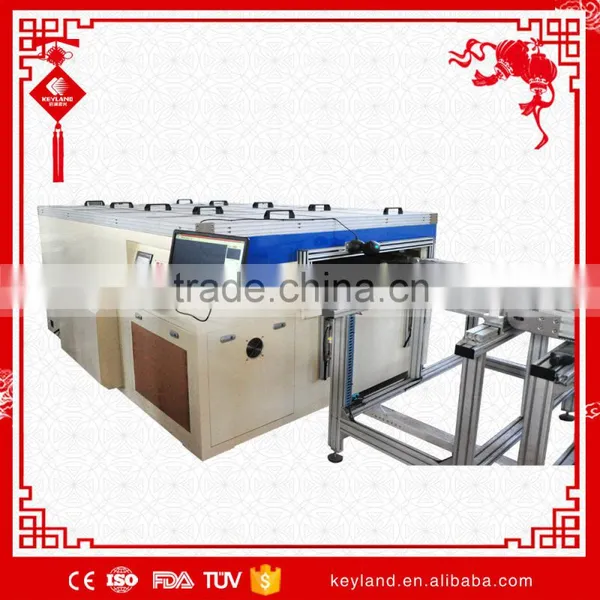

Exact Photos of Keyland Solar Electroluminesc Tester :
Electric control part: The main control system of device is relay ;
Electronic control components including: relays, contactors, solenoid valves, lights, etc
Pneumatic part:cylinder
Test Power:0~20A 0~100V
Camera:uses near-infrared 600W pixel optics camera(option)
Keyland solar El defects Tester can be applied before and after lamination process ,
Defect Tester is an important and effective process monitoring and testing equipment.
Main technical characteristics:
- 1. High-sensitivity, high-resolution near - infrared camera
- 2. High signal-to-noise ratio cooled CCD sensor
- 3. Exposure time 1s to 60s (adjustable settings) to facilitate different testing needs
- 4. High transmittance lens apparatus
- 5. Short circuit protection, high-performance and stable constant current / voltage source
- 6. Unique probe design mode allows successful power modulelocations in the greater error
Option
1. Seamless joint with the assembly line, the detection process is fully automatic
2. Automatically identify defects by software
Main Parameter:
Product name |
Solar Electroluminesc Tester | |
Resolution | 16 million pixels (option) | |
Clear imaging time | 1-30s | |
Test cycle | 35s(before laminate) | 30s(after laminate) |
Detector Manufacturer | starsense | |
Detector type | Cooling type(-50℃) | |
Image surface noise | no | |
Software | Keyland software Images automatically saved, statistics, query and print | |
Detection of defect types | Processes pollution, material defects, cracked, debris, broken gate, missing solder, low efficiency. | |
Test type | Solar module | |
Test size | Max.:2000mmx1000mm | |
Machine size | 2360x2000mmx900mm | |
Test voltage | 0~10A 0~100V | |
Working environment | +15℃~+40℃(Temperature) 20~60%(Humidity) | |
Equipment placement environment | +5℃~+40℃(Temperature) 5~ 85%(Humidity) | |
Cases of Keyland Solar Equipments
Video by our Keyland Solar Electroluminesc Tester :
| http://youtu.be/or0tkRTmd4M | http://youtu.be/_wHzhUDjosM |
Keyland OverSea Service
Welcome to contact Lucia Lv for more details
We will design suitable solar line project with competitive cost to you .
Hope to buid cooperation
