Xenon Arc Lamp Flash Test PV Solar Cell Voc Isc / Sun Simulation Lab Testing Equipments
4-Grid-Line Reverse Current Solar Cells Testing

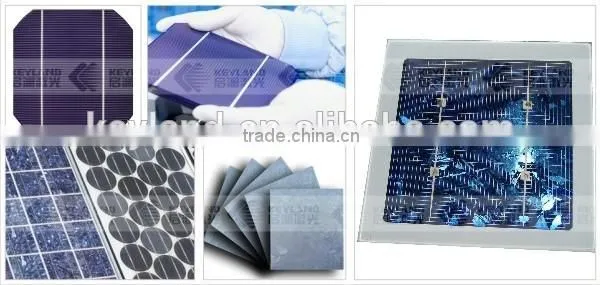

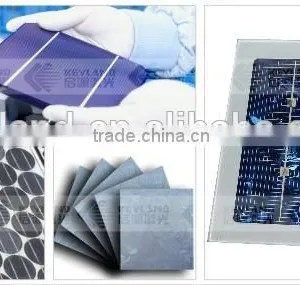

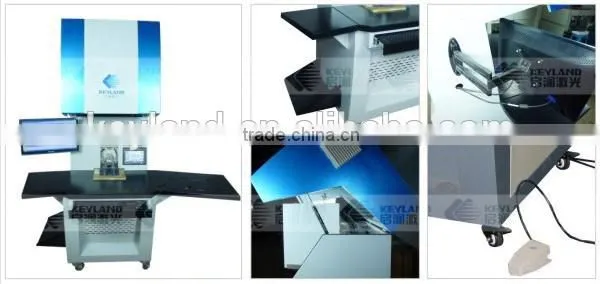

Solar Cells Tester is Mainly used in automatic test and result record of solar mono-Si, poly-Si solar cell module.
Testing Range:0.1-5W 200mm*200mm

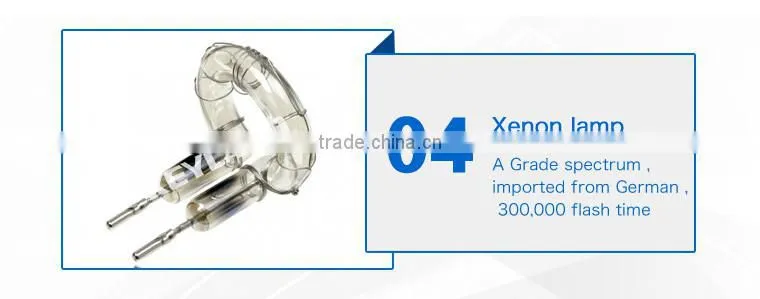

Xenon lamp liftspan is ≥100,000 times
ONline Full Automatic Pv Solar Cell Testing and Sorting Machine can be supplied according to your full solar line

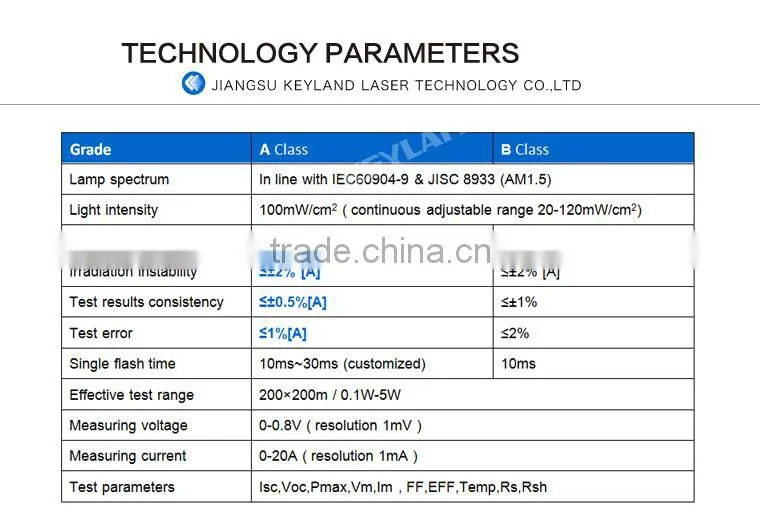

A grade spectrum;
A grade unevenness degree of irradiance;
A grade instability degree of irradiation;
A grade test error,
A grade repeat test error;
Options of Solar Cells tester
To satisfy the test requirements of double grid lines,3-grid-line,0-grid-line ,4-gfrid-line.

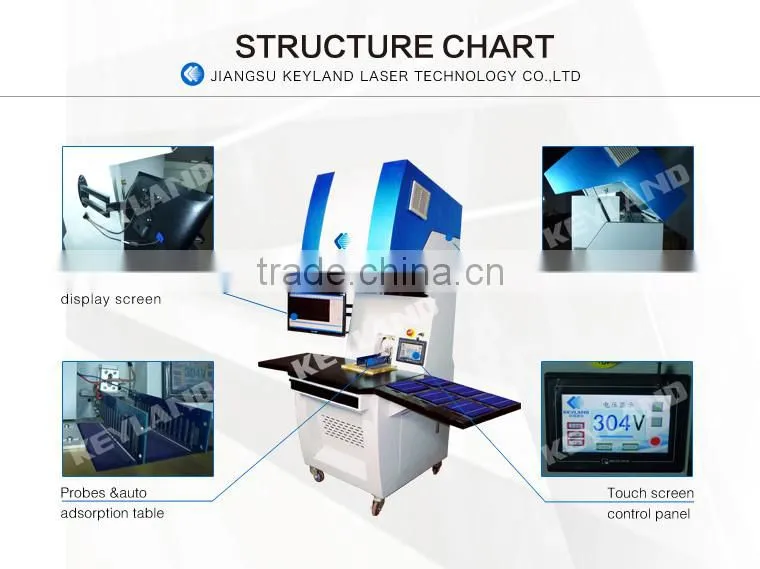

Technology characters of Solar Cells tester :

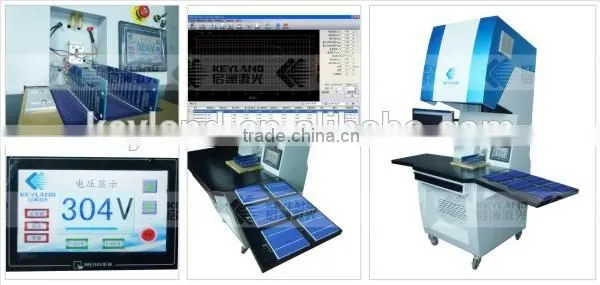

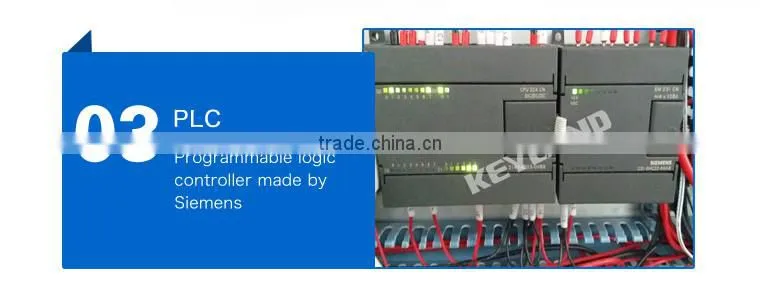

HMI and PLC intelligent control,touch screen control;
Built-in host,industrial integration design,and more in line with the industrial application environment;
360 degree freely show frame,facilitate date collection.

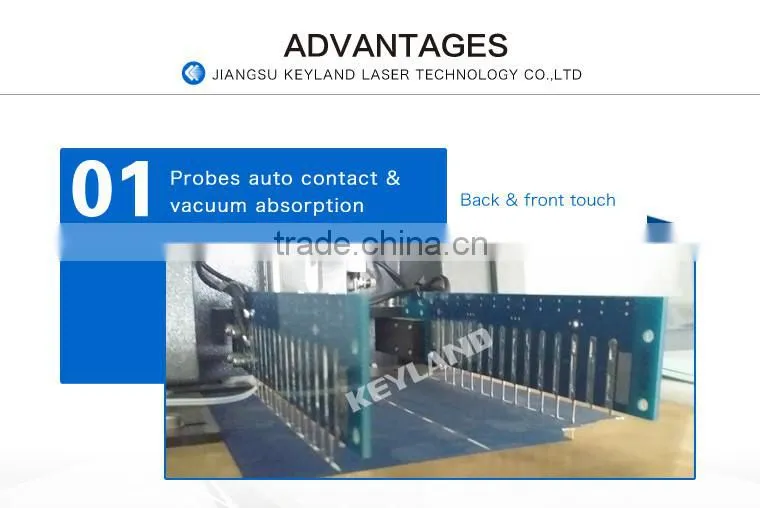

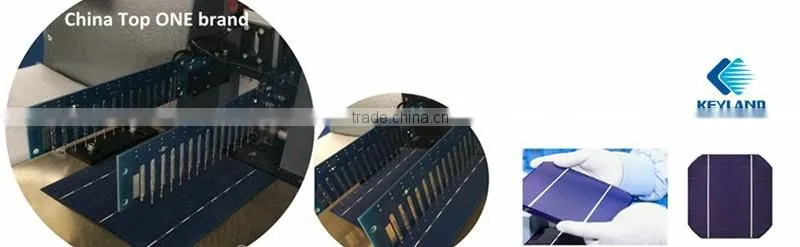

Pneumatic and buffering contact, front probe contact, back contact
4-line survey,14-bit 4-channel high-speed synchronous acquisition
10 parameters display;8000 data collecting dots
Irradiance&Temperature compensating automatically

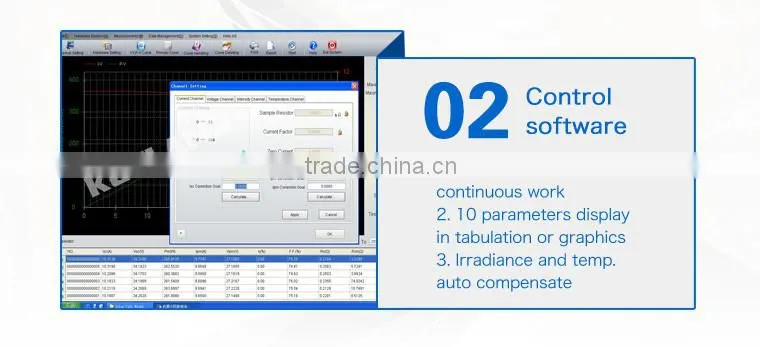

Measurement parameter displays in tabulation and graphic way;
Voice counts off and prompts; Counting prompt of flash times;24hrs continuous working.
We also manufacture a series solar panel production line machines
Service & Train of Solar Simulator in our clients factories
Video by our Keyland solar Equipments
Step 1 | |
solar cell tester and sorter |
http://youtu.be/MSrkobsylco |
Step 2 | |
Solar cell scribing Processing |
http://youtu.be/pAb8eW0Qby0 |
Step 3 | |
Full Automatic Solar tabbing ans string |
http://youtu.be/UpK_Qm7I27Y |
Ribbon cutting |
https://youtu.be/XAVlA2d4Ki8 |
Solar cell string welding |
http://youtu.be/c3D-lOTIPLc |
Solar cell single welding |
http://youtu.be/zjmC9HVnfDs |
Solar cell bus bar welding |
http://youtu.be/OP7KP_5mcwI |
Step 4 | |
EVA TPT cutting |
https://youtu.be/watySlfaQCI |
Solar EVA TPT Laying |
http://youtu.be/OiTKxQjAet4 |
Automatic layout |
https://youtu.be/QGgPz2zc7pM |
Step 5 | |
Solar EVA TPT Laying |
http://youtu.be/OiTKxQjAet4 |
Inspection |
https://youtu.be/4lF5AyGP22I |
Solar Trimming |
http://youtu.be/-dMiAQzDHCs |
Step 6 | |
Solar Lamintor |
|
Step 7 | |
solar simulator |
http://youtu.be/cS1d4i1Y4G8 |
Automatic solar simulator and EL tester |
http://youtu.be/or0tkRTmd4M |
Full Automatic Solar EL Tester |
http://youtu.be/_wHzhUDjosM |
Step 8 | |
Solar Framing Machine |
http://youtu.be/kqK8VpAvAxo |
Glue on Solar Module |
http://youtu.be/Q2P5d5Mt5PM |
Junction box installation |
http://youtu.be/Keim3fiX4bs |
|
Terminal box filling glue machine Junction box gluing machine |
http://youtu.be/IJgVnVhSVHg |

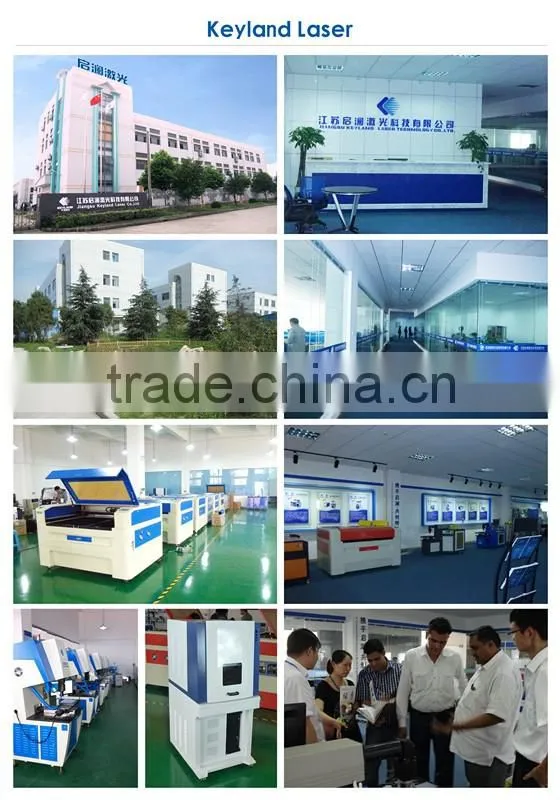

Keyland show
To help you build a low cost /steady /hi- efficient project , please tell your idea to
