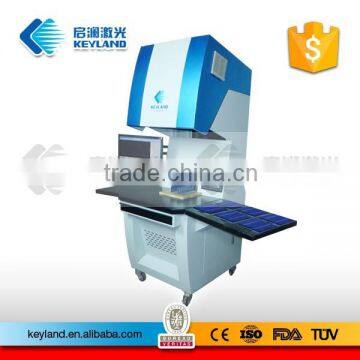

Flexible Solar Cell Sorter For Sorting the Solar Cell Watt

Name: Flexible Solar Cell Sorter For Sorting the Solar Cell Watt
Brand: Keyland laser
SKU: 119351007
Availability: InStock

US$ 6,500 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hubei, China

Brand Name:

Keyland laser

Model Number:

GTM-B/GTM-5A

Jiangsu Keyland Laser Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name Keyland laser

Model Number GTM-B/GTM-5A

Power Electronic

Usage Auto Testing Machine

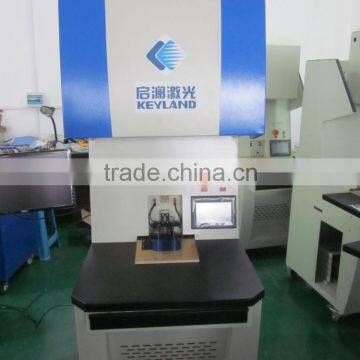

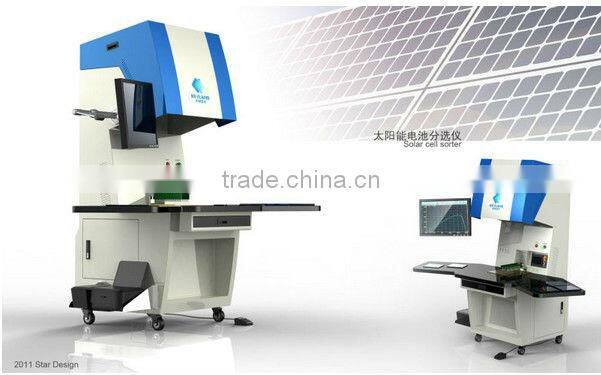

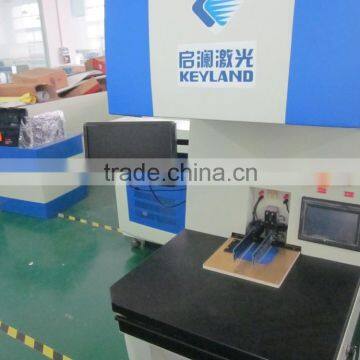

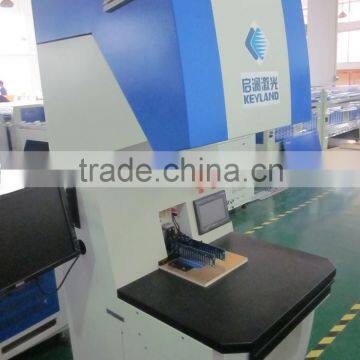

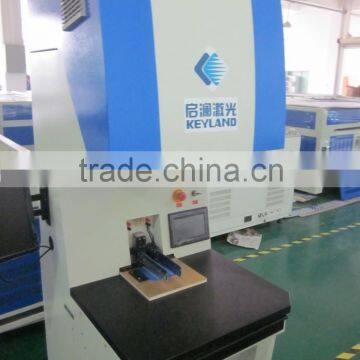

Flexible Solar Cell Sorter For Sorting the Solar Cell Watt

(Free Shipping; Free installation)

Soar Cell Power 0.1W~5W/ Testing Range 200*200mm

Applications:Electric performance test and on the file for Mono-Si or Poly-Si solar cells.

Technology Characters:

A grade spectrum ;

A grade unevenness degree of irradiance;

A grade instability degree of irradiation;

A grade test error,

A grade repeat test error

Solar Cell Simulator tester Characters:

HMI and PLC intelligent control,touch screen control;
Built-in host,industrial integration design,and more in line with the industrial application environment;
360 degree freely show frame,facilitate date collection.

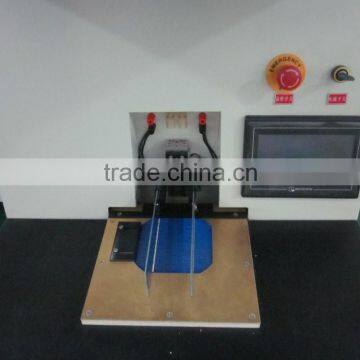

Pneumatic and buffering contact, front probe contact, back contact
4-line survey,14-bit 4-channel high-speed synchronous acquisition.
10 parameters display;8000 data collecting dots
Irradiance&Temperature compensating automatically
Measurement parameter displays in tabulation and graphic way.
Voice counts off and prompts; Counting prompt of flash times;24hrs continuous working;
Working life of imported xenon lamp is 300, 000 times of flash
Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.

The Main Technical Parameters:

Type Specifications	GTC-5A	GTC-B
Lamp Spectrum	IEC60904 and JISC8933
Light intensity	≤±2% (A)	≤±3%
Instability degree of irradiation	≤±2% (A)	≤±2%
Test results consistency	≤±0.5% (A)	≤±1%
Test error of electrical properties	≤1% (A)	≤2%
Single flash time	10~-30ms
Effective test range	200*200mm /0.1W-5W
Measuring voltage	0~0.8V (Resolution 1mV)
Measuring Voltage	0~20A (Resolution 1 mA)
Test Parameters	Isc,Voc,Pmax,Vm,Im, FF,EFF,Temp, Rs, Rsh
