Home > Electrical & Electronics > Inverter > Power Inverter > High Capacity 1kw 2kw 3kw Solar Inverter 220v

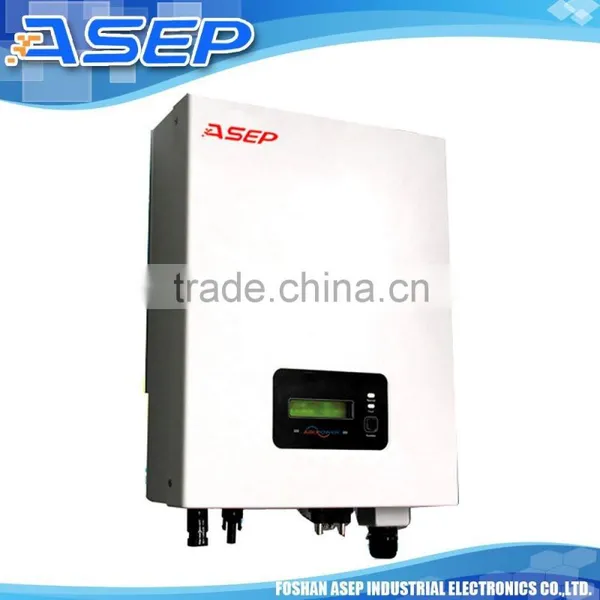

High Capacity 1kw 2kw 3kw Solar Inverter 220v
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASEP
Model Number:
2500TL
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan / Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Product in China High Quality Power InverterNegotiableMOQ: 1 Unit -
Factory Supply Good Quality Inverter 3000wNegotiableMOQ: 1 Unit
-
Factory Wholesale Price Sell dc to ac InverterNegotiableMOQ: 1 Unit
-
Best Quality Control Durable 2000w InverterNegotiableMOQ: 1 Unit
-
2015 New Product Promotion on Grid Tie InverterNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
ASEP
Model Number
2500TL
Output Power
1 - 200KW
Output Type
Single
Size
348x506x148(Width*Height*Depth)(MM)
Weight
13KG
Input Voltage
100V~500V
Output Voltage
230/180VAC~270VAC
Type
DC/AC Inverters
Output Frequency
50/47Hz~52Hz
Output Current
24A
High capacity 1kw 2kw 3kw solar inverter 220v
| Item No. | 1000TL | 1600TL | 2200TL | 2500TL | 3000TL |
| Series Name | Grid-Tie Inverter/ On Grid Inverter | ||||
| Input | |||||
| Maximum Input Power | 1100W | 1750W | 2350W | 2700W | 3200W |
| Maximum Input DC Voltage | 550VDC | ||||
| Working Voltage Range | 100V~500V | ||||
| MMPT Voltage Range | 130V~500V | 175V~500V | 180V~500V | 210V~500V | 240V~500V |
| ON/OFF Voltage | 80/30 | ||||
| Maximum Input DC Current | 8.5A | 10A | 13A | 13A | 13A |
| MPPT Numbers | 1 | ||||
MPPT Connection numbers in each channel | 1 | ||||
| Output | |||||
| Phases of the Power Network | Single | ||||
| Nominal AC Output Power | 1000W | 1600W | 2200W | 2500W | 3000W |
| Maximum AC Output Power | 1000W | 1600W | 2200W | 2500W | 3000W |
| Maximum AC Output Current | 5A | 8A | 11A | 12A | 14A |
| Nominal AC Output Voltage | 230/180VAC~270VAC | ||||
| Nominal AC Output Frequency | 50/47Hz~52Hz | ||||
| Power Factor | 0.99 | ||||
| THD (Total Harmonic Distortion) | <3% | ||||
| Efficency | |||||
| Maximum Efficiency | 97% | ||||
| European Efficiency | 96.50% | ||||
| MPPT Efficiency | 99.50% | ||||
| Protection Methods | |||||
| Over-voltage Protection | √ | ||||
Detection of Impedance and insulation in DC | √ | ||||
| Ground Fault Protection | √ | ||||
| Utility Power Inspection | √ | ||||
| Inspection of Ground Fault Current | √ | ||||
Inspection of DC Current Component | √ | ||||
| Test Procedure of Islanding | AFD | ||||
| General Information | |||||
| Shipping Weight | 10KG | 10KG | 10.5KG | 13KG | 13KG |
| Shipping Dimensions | 348x506x148(Width*Height*Depth)(MM) | ||||
| Operating Temperature | -20℃~+60℃ | ||||
| IP Protection Level | Compline with IEC602529 to IP65 | ||||
| Isolation type | No Transformer Isolation | ||||
| Cooling Method | Natural Cooling | ||||
| Noise Level | <35db | ||||
| Display | LCD | ||||
| Communication Interface | RS232,Wifi is avalaible | ||||
| Regulatory Certificate | AS4777,G83,G59,EN61000,IEC-62109-1,VDE0126,EN50438 | ||||
| Standard Warranty | 1 years | ||||
Our product's Features
- Non-transformer H4C/H6C full bridge topology structure
- More logical circuit arrangement, stricter production control and simpler structure design

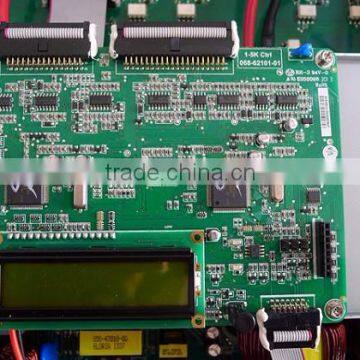

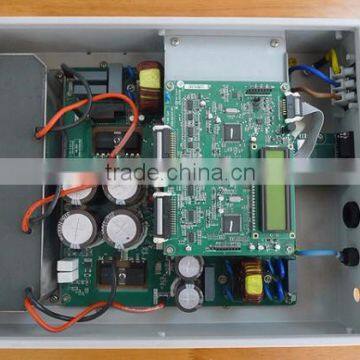

- modularized circuit, facilitating the assembly the maintenance process;
- MPPT with double channel, making it possible for separation input, parallel input and single channel mode;
- Encased in SUS430 with smart, lightweight outlook design; waterproof function is bettered;
- Bypass switch, enhancing the continuity and reliability of power supply ;
- Via WIFI, the amount of generated electricity can be easily checked and the system can be upgraded online
- CE approval, in accordance with Australian new standard issued in 2013.06
- Protection against islanding, short circuit, over-load and over-heat
- 1 years of warranty
Advantages
Working Principle
Company Information
Packaging
Shipping
After-Sales Service
After-sales service
A. Remote Technical Support (those with WIFI module installed)
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
If you have any questions, please feel free to contact us.
