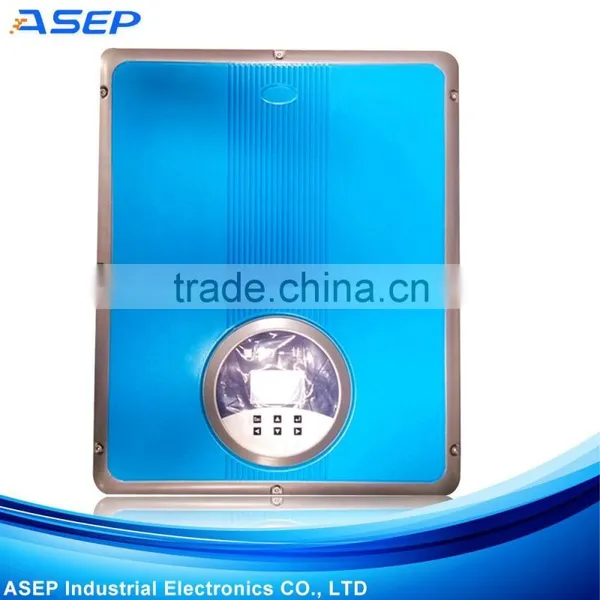

Home Appliances 380V 20Kw 3 Phase Grid Tie Hybrid Solar Inverter
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASEP
Model Number:
OGI-20K
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan / Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10Kw Mppt Solar Panel Grid Tie 3 Phase DC AC InverterNegotiableMOQ: 1 Unit -
100V~500V Single Phase Double Channel 4000W Solar On Grid InverterNegotiableMOQ: 1 Unit
-
Full Bridge Topology Structure Solar Grid Tie InverterNegotiableMOQ: 1 Unit
-
Lightweight Outlook Design Hybrid 1Kw Solar Grid Tie Inverter Ul1741NegotiableMOQ: 1 Unit
-
Short Circuit Over-Load And Over-Heat Mppt Solar Charge Controller InverterNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
ASEP
Model Number
OGI-20K
Output Power
1 - 200KW
Output Type
Triple
Input Voltage
380V~800V
Output Voltage
230~400 VAC
Type
DC/AC Inverters
Output Frequency
50/60 Hz
Output Current
30A

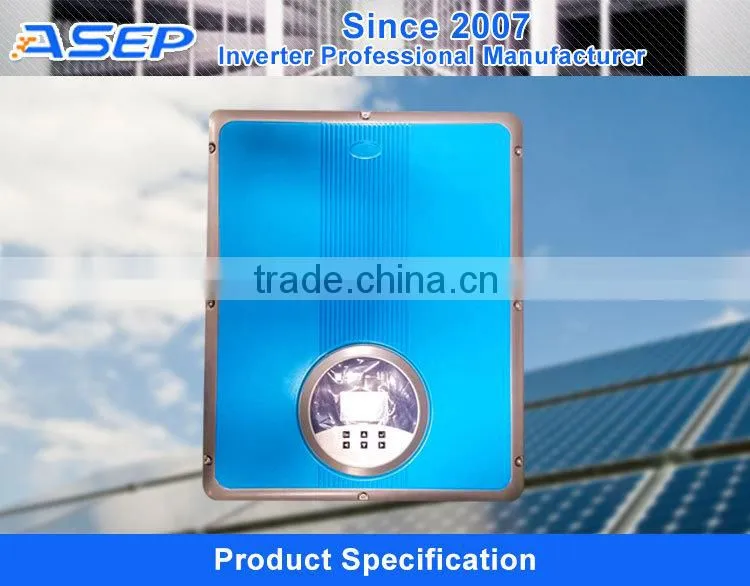

Home Appliances 380V 20Kw 3 Phase Grid Tie Hybrid Solar Inverter
| Item No. | OGI-10K | OGI-12K | OGI-15K | OGI-17K | OGI-20K | ||||
| Series Name | On-Grid Inverter | ||||||||
| Input | |||||||||
| Maximum Input Power | 10200 W | 12250 W | 15340 W | 17410 W | 20500 W | ||||
| Maximum Input DC Voltage | 1000 VDC | ||||||||
| Working Voltage Range | 610 VDC | ||||||||
| MMPT Voltage Range | 300V~800V | 380V~800V | 380V~800V | 380V~800V | 380V~800V | ||||
| ON/OFF Voltage | 80/30 | ||||||||
| Maximum Input DC Current | 20/20 A | ||||||||
| MPPT Numbers | 2/2 | ||||||||
| Output | |||||||||
| Phases of the Power Network | 3 phases | ||||||||
| Nominal AC Output Power | 10 KW | 12 KW | 15 KW | 17 KW | 20 KW | ||||
| Maximum AC Output Power | 10 KW | 12 KW | 15 KW | 17 KW | 20 KW | ||||
| Maximum AC Output Current | 16 A | 19 A | 24 A | 25 A | 30 A | ||||
| Nominal AC Output Voltage | 230~400 VAC | ||||||||
| Utility Power Network Frequency | 50/60 Hz | ||||||||
| Power Factor | 0.99 | ||||||||
| THD (Total Harmonic Distortion) | <3% | ||||||||
| Inverting Efficency | |||||||||
| Maximum Efficiency | 98% | ||||||||
| European Efficiency | 97.50% | ||||||||
| MPPT Efficiency | 99.90% | ||||||||
| Power Comsumption at night | <1W | ||||||||
| Protection Methods | |||||||||
| Over-voltage Protection | √ | ||||||||
|
Detection of Impedance and insulation in DC |
√ | ||||||||
| Ground Fault Protection | √ | ||||||||
| Utility Power Inspection | √ | ||||||||
| Inspection of Ground Fault Current | √ | ||||||||
| Inspection of DC Current Component | √ | ||||||||
| General Information | |||||||||
| Net Weight | 40kg | ||||||||
|
Shipping Dimensions (Width*Height*Depth)(MM) |
540*660*191.5 | ||||||||
| Operating Temperature | -25℃~+60℃ | ||||||||
| Operating Humidity | 0-100% (no condensation) | ||||||||
| Climate Requirement (IEC 60721-3-4) |
4K4H | ||||||||
| IP Protection Level | IP65 (Compline with IEC602529) | ||||||||
| Isolation type | No Transformer | ||||||||
| Cooling Method | Natural Cooling | ||||||||
| Noise Level | <35db | ||||||||
| Display | LCD | ||||||||
| Communication Interface | RS485/ Wifi(optional) | ||||||||
| Regulatory Certificate | AS4777,G83,G59,EN61000,IEC-62109-1,VDE0126,EN50438 | ||||||||
| Standard Warranty | 5/10/20 years(optional) | ||||||||
Grid-Tie Inverter Features
- Non-transformer H4C/H6C full bridge topology structure

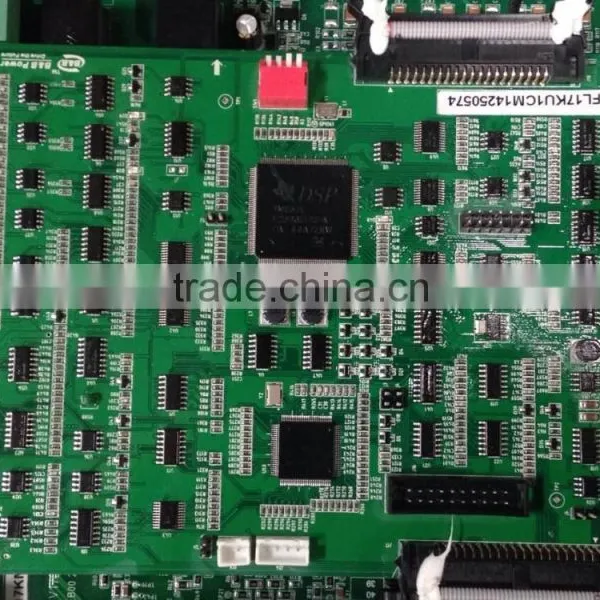

- More logical circuit arrangement, stricter production control and simpler structure design

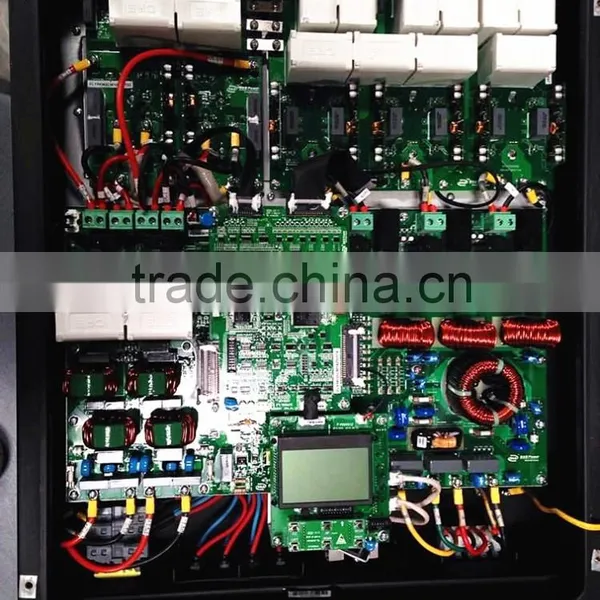

- modularized circuit, facilitating the assembly the maintenance process;
- MPPT with double channel, making it possible for separation input, parallel input and single channel mode;
- Encased in SUS430 with smart, lightweight outlook design; waterproof function is bettered;
- Bypass switch, enhancing the continuity and reliability of power supply ;
- Via WIFI, the amount of generated electricity can be easily checked and the system can be upgraded online
- CE approval, in accordance with Australian new standard issued in 2013.06
- Protection against islanding, short circuit, over-load and over-heat
- 1 years of warranty
Advantages
After-Sales Service
After-sales service
A. Remote Technical Support (those with WIFI module installed);
With WIFI module installed, we can help you monitor the performance of your machine.
B. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
C. 2% Back-up material for main parts is provided.
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
D.One Year Warranty
