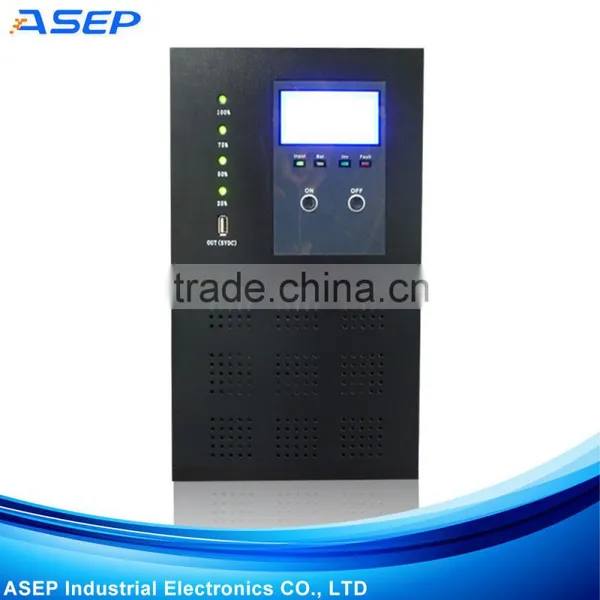

Short Circuit Protection Circuit 48Volt Power DC AC Inverter 240V Solar
- 50000 Unit / Units per Month
- Foshan / Shenzhen Port
- Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ASEP | Model Number: | AP-3K |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 515*383*245mm |
Weight: | 29KG | Input Voltage: | 145V~280V | Output Voltage: | 220V±10% |
Type: | DC/AC Inverters | Output Frequency: | 50Hz | Output Current: | 9 A |
Product Description
Short Circuit Protection Circuit 48Volt Power DC AC Inverter 240V Solar
Item No. | AP-500 | AP-1K | AP-2K | AP-3K | AP-5K | |
Series Name | Off-Grid Inverter | |||||
Rated Capacity | 500W | 1KW | 2KW | 3KW | 5KW | |
Input | ||||||
DC Input Voltage | Nominal DC input voltage | 12VDC | 24VDC | 48VDC | 48VDC | |
Backward noise current | ≤10% | |||||
AC Input Voltage | AC input voltage | 145V-280V 50Hz | ||||
maximum input current | 7A | 12A | 18A | 35A | ||
AC Output | ||||||
Output Voltage | 220V±10% | |||||
Output Frequency | 50Hz | |||||
Output Waveform | Pure Sine Waveform | |||||
Waveform Distortion | ≤5% | |||||
Dynamic Reaction Time | ≤40MS | |||||
Power Factor | 0.9 | |||||
Protection Methods | ||||||
Overload Capability | 120% Fullload lasting for 10S | |||||
Overload protection | √ | |||||
Short Circuit Protection | √ | |||||
Functions | ||||||
Invert Efficiency | ≥83% | ≥85% | ≥90% | ≥90% | ||
Transfer Time | ≤6MS | |||||
Rechage | Intelligent Recharge will adjust automacticly according to the battery capacity. Maximum 12A. | |||||
Batteries Protection | Automatic testing,Over discharge protection,Overcharge protection, Intelligent management | |||||
Physical | ||||||
Shipping Weight | 7KG | 12KG | 24KG | 29KG | 43KG | |
Shipping Width | 385MM | 385MM | 515MM | 515MM | 435MM | |
Shipping Height | 240MM | 240MM | 383MM | 383MM | 220MM | |
Shipping Depth | 145MM | 145MM | 245MM | 245MM | 430MM | |
Display Monitor | LCD(Standard),Displaying Utinity Power condiction, inverting condiction,load capacity and battery capacity | |||||
Environmental | ||||||
Operating Temperature | 0℃~40℃ | |||||
Operating Relative Humidity | 0%~90% Non Condencing | |||||
Conformance | ||||||
Regulatory Approvals | ISO9001 | |||||
Standard Warranty | 1 YEAR |
Features:
- 1. Pure sine wave Output, applicable in various field
- 2. More stable, safer industrial online system
- 3. CPU with dual core, Better performance.
- 4. Availability of wide range of input voltage, AVR available
- 5. Protection against overload, short circuit, over/lower voltage, over-heat
- 6. LED+LCD display, evident showing
- 7. Extended batteries group available for prolonging back-up time
- 8. Intelligent battery management with over-charge and over-discharge protection
- 9. Temperature controller adjusting cooling ventilation, reducing noise
- 10. High efficiency of transferring, diminishing energy loss, increasing stability
