500W 2000W DC To AC Stackable Inverter Pure Sine Wave

500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-1
500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-2
500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-3
500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-4
500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-5
500W 2000W DC To AC Stackable Inverter Pure Sine Wave thumbnail-6
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-1
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-2
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-3
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-4
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-5
500W 2000W DC To AC Stackable Inverter Pure Sine Wave photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASEP
Model Number:
AP-2K
Contact Supplier Request Quote Chat Now
Foshan ASEP Industrial Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan / Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASEP
Model Number AP-2K
Output Power 1 - 200KW
Output Type Single
Size 515*383*245mm
Weight 24KG
Input Voltage 145V~280V
Output Voltage 220V±10%
Type DC/AC Inverters
Output Frequency 50Hz
Output Current 9 A

500W 2000W DC To AC Stackable Inverter Pure Sine Wave

500W 2000W DC To AC Stackable Inverter Pure Sine Wave

Item No.AP-500AP-1KAP-2KAP-3KAP-5K
Series NameOff-Grid Inverter
Rated Capacity500W1KW2KW3KW5KW
Input
DC Input Voltage

Nominal DC

 input voltage

12VDC24VDC48VDC48VDC

Backward

noise current

≤10%
AC Input VoltageAC input voltage145V-280V  50Hz

maximum

input current

7A12A18A35A
AC Output
Output Voltage220V±10%
Output Frequency50Hz
Output WaveformPure Sine Waveform
Waveform Distortion≤5%
Dynamic Reaction Time≤40MS
Power Factor0.9
Protection Methods
Overload Capability120% Fullload lasting for 10S
Overload protection√
Short Circuit Protection√
Functions
Invert Efficiency≥83%≥85%≥90%≥90%
Transfer Time≤6MS
Rechage

Intelligent Recharge will adjust automacticly according to the

battery capacity. Maximum 12A.

Batteries Protection

Automatic testing,Over discharge protection,Overcharge protection,

Intelligent management

Physical
Shipping Weight7KG12KG24KG29KG43KG
Shipping Width385MM385MM515MM515MM435MM
Shipping Height240MM240MM383MM383MM220MM
Shipping Depth145MM145MM245MM245MM430MM
Display Monitor

LCD(Standard),Displaying Utinity Power condiction,

inverting condiction,load capacity and battery capacity

Environmental
Operating Temperature0℃~40℃
Operating Relative Humidity0%~90% Non Condencing
Conformance
Regulatory ApprovalsISO9001
Standard Warranty1 YEAR



Features:

  • 1. Pure sine wave Output, applicable in various field
  • 2. More stable, safer industrial online system
  • 3. CPU with dual core, Better performance.
  • 4.  Availability of wide range of input voltage,  AVR available
  • 5. Protection against overload, short circuit, over/lower voltage, over-heat
  • 6. LED+LCD display, evident showing
  • 7. Extended batteries group available for prolonging back-up time
  • 8. Intelligent battery management with over-charge and over-discharge protection
  • 9. Temperature controller adjusting cooling ventilation, reducing noise
  • 10. High efficiency of transferring, diminishing energy loss, increasing stability
500W 2000W DC To AC Stackable Inverter Pure Sine Wave
Product Advantages
1.Smart Mute System
500W 2000W DC To AC Stackable Inverter Pure Sine Wave

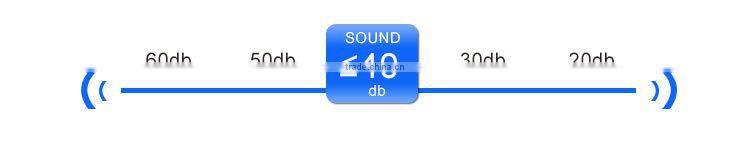

Smart regulation working condition so noise below 40DB
2.LED+LCD display, evident showing

500W 2000W DC To AC Stackable Inverter Pure Sine Wave

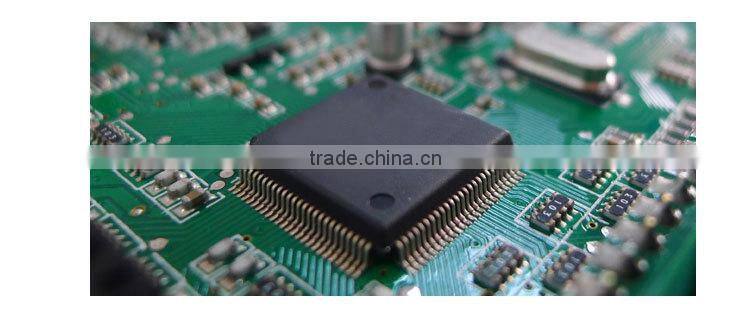

3.CPU with dual core, better performance
500W 2000W DC To AC Stackable Inverter Pure Sine Wave

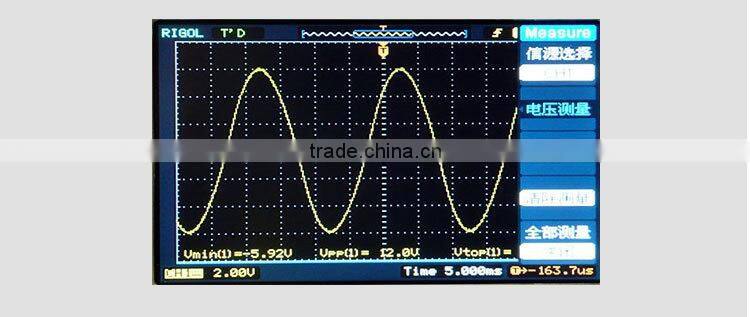

4.Pure sine wave output, applicable in various field
500W 2000W DC To AC Stackable Inverter Pure Sine Wave
5. Available wifi module
500W 2000W DC To AC Stackable Inverter Pure Sine Wave
Wifi module enables the inverter status to be monitored in remote real-time
500W 2000W DC To AC Stackable Inverter Pure Sine Wave
500W 2000W DC To AC Stackable Inverter Pure Sine Wave500W 2000W DC To AC Stackable Inverter Pure Sine Wave500W 2000W DC To AC Stackable Inverter Pure Sine Wave500W 2000W DC To AC Stackable Inverter Pure Sine Wave
