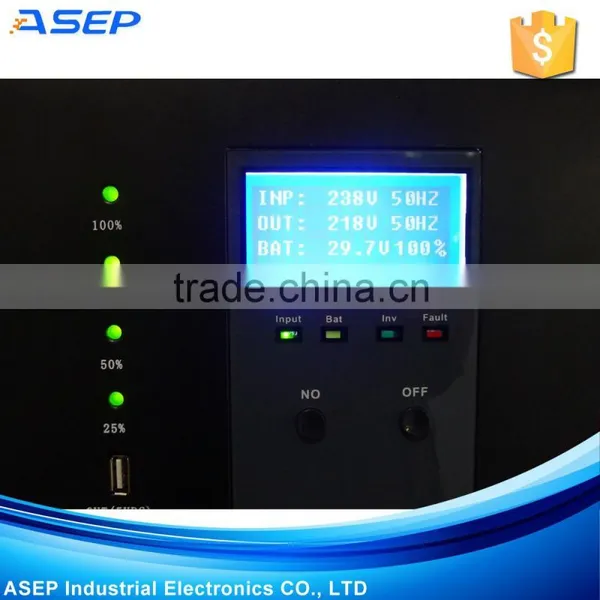

Off-Grid Short Circuit Protection Homage Solar 220V 3Kw Inverter
Negotiable
/ Unit
1 Unit(Min.Order)
- 50000 Unit / Units per Month
- Foshan / Shenzhen Port
- Credit Card
You May Like
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ASEP | Model Number: | AP-3K |
| Output Power: | 1 - 200KW | Output Type: | Single | Size: | 515*383*245mm |
| Weight: | 29KG | Input Voltage: | 145V~280V | Output Voltage: | 220V±10% |
| Type: | DC/AC Inverters | Output Frequency: | 50Hz | Output Current: | 9 A |
Product Description
Off-Grid Short Circuit Protection Homage Solar 220V 3Kw Inverter
| Item No. | AP-500 | AP-1K | AP-2K | AP-3K | AP-5K | |
| Series Name | Off-Grid Inverter | |||||
| Rated Capacity | 500W | 1KW | 2KW | 3KW | 5KW | |
| Input | ||||||
| DC Input Voltage | Nominal DC input voltage | 12VDC | 24VDC | 48VDC | 48VDC | |
Backward noise current | ≤10% | |||||
| AC Input Voltage | AC input voltage | 145V-280V 50Hz | ||||
maximum input current | 7A | 12A | 18A | 35A | ||
| AC Output | ||||||
| Output Voltage | 220V±10% | |||||
| Output Frequency | 50Hz | |||||
| Output Waveform | Pure Sine Waveform | |||||
| Waveform Distortion | ≤5% | |||||
| Dynamic Reaction Time | ≤40MS | |||||
| Power Factor | 0.9 | |||||
| Protection Methods | ||||||
| Overload Capability | 120% Fullload lasting for 10S | |||||
| Overload protection | √ | |||||
| Short Circuit Protection | √ | |||||
| Functions | ||||||
| Invert Efficiency | ≥83% | ≥85% | ≥90% | ≥90% | ||
| Transfer Time | ≤6MS | |||||
| Rechage | Intelligent Recharge will adjust automacticly according to the battery capacity. Maximum 12A. | |||||
| Batteries Protection | Automatic testing,Over discharge protection,Overcharge protection, Intelligent management | |||||
| Physical | ||||||
| Shipping Weight | 7KG | 12KG | 24KG | 29KG | 43KG | |
| Shipping Width | 385MM | 385MM | 515MM | 515MM | 435MM | |
| Shipping Height | 240MM | 240MM | 383MM | 383MM | 220MM | |
| Shipping Depth | 145MM | 145MM | 245MM | 245MM | 430MM | |
| Display Monitor | LCD(Standard),Displaying Utinity Power condiction, inverting condiction,load capacity and battery capacity | |||||
| Environmental | ||||||
| Operating Temperature | 0℃~40℃ | |||||
| Operating Relative Humidity | 0%~90% Non Condencing | |||||
| Conformance | ||||||
| Regulatory Approvals | ISO9001 | |||||
| Standard Warranty | 1 YEAR | |||||
Features:
- 1. Pure sine wave Output, applicable in various field
- 2. More stable, safer industrial online system
- 3. CPU with dual core, Better performance.
- 4. Availability of wide range of input voltage, AVR available
- 5. Protection against overload, short circuit, over/lower voltage, over-heat
- 6. LED+LCD display, evident showing
- 7. Extended batteries group available for prolonging back-up time
- 8. Intelligent battery management with over-charge and over-discharge protection
- 9. Temperature controller adjusting cooling ventilation, reducing noise
- 10. High efficiency of transferring, diminishing energy loss, increasing stability
Product Advantages
1.Smart Mute System
Smart regulation working condition so noise below 40DB
2.LED+LCD display, evident showing
3.CPU with dual core, better performance
4.Pure sine wave output, applicable in various field
5. Available wifi module
Wifi module enables the inverter status to be monitored in remote real-time
