Safety Code Setting Available Dry Batteries for Ups

Name: Safety Code Setting Available Dry Batteries for Ups
Brand: ASEP
SKU: 119346255
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASEP

Model Number:

AIS10KVA

Foshan ASEP Industrial Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan / Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASEP

Model Number AIS10KVA

Phase Three Phase

Protection Other, over / under input voltage, over / under output voltage, over-curren

Weight 200KG~300KG

Output Voltage 220/380VAC±1%

Type On-line

Application Other, Medium and small size data centre; Medium and small size industrial co

Safety code setting available dry batteries for ups

Item No.	AIS10KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA	160KVA	200KVA
Series Name	Industrial Online Series
Rated Capacity	8KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW	144KW	180KW
Inverter
Input Phases	RST+L+N
Nominal Output Voltage	220/380VAC±1%					380VAC±1%
Nominal Output Frequency	50/60Hz±0.5%(Battery mode)
Power Factor	0.8/0.9
Frequency Stability (synchronized)	<±0.5
Frequency Stability (non-synchronized)	<±2%
Crest Factor	3:01
Output Waveform	Sine Waveform
THD (Total Harmonic Distortion)	Linear load<3%;Non linear load<5%
Fluctuation Voltage for Unstable Load	<±4%
Transient Recovery Time	<10MS
On-Load Voltage	Balance:<±1% Unbalance:<±5%
Overload Capability	120% overload lasting 30Mins,150% overload lasting 1min.
Inverter Efficiency, 100% on load	>93								>95
Bypass
Input Phases	RST
Nominal Output Voltage	300VAC±15%
Nominal Output Frequency	50/60Hz±10%
Transfer Time	0MS
Physical
Shipping Weight	200KG~300KG			400KG~500KG		650KG	800KG	980KG	1300KG~1550KG
Shipping Width (mm)	560			660		1070	900	1540	1420
Shipping Height (mm)	1140			1145		1650	1440	1570	1780
Shipping Depth (mm)	700			795		900	1100	890	860
Noise (within 1 m)	53~68db
Cable Placement	bottom or back
Color	Black or White
System
Communication Interface	RS232, RS485,Dry contact,Intelligent slot
Cooling Method	Forced ventilation
Protection Level	IP20
MTBF	300,000 hours
Environmental
Operating Temperature	0℃~40℃
Operating Relative Humidity	0%~80%
Operating Altitude	>1000M(1% Power dcreased in every 100M increased. Maximum 4000M)
Conformance
Regulatory Approvals	ISO9001
Standard Warranty	1 year

Our product's Features

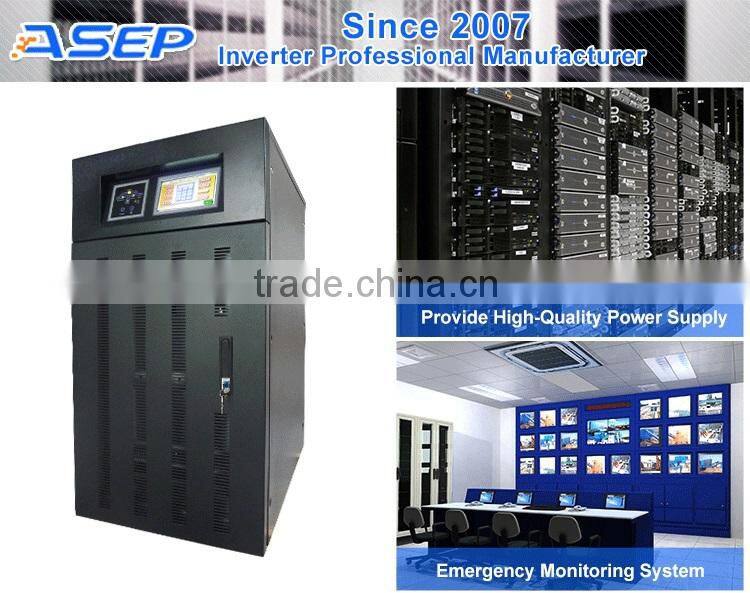

ASEP’s Industrial Online uninterruptible power supplies are specially designed to support all kinds of precise

instruments, large equipments data center and production machines etc. , preventing from any unstable

power or interruption affecting their normal work performance.

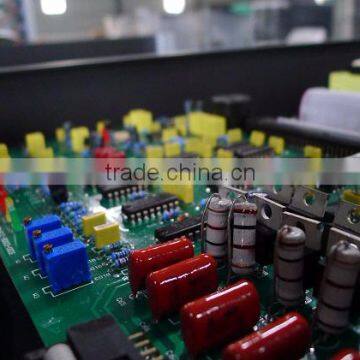

DSP control technique is applied;

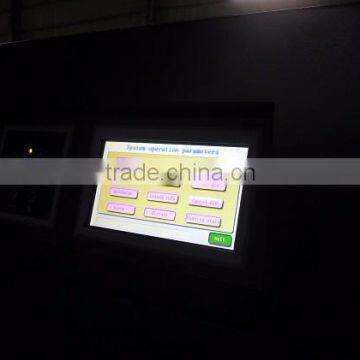

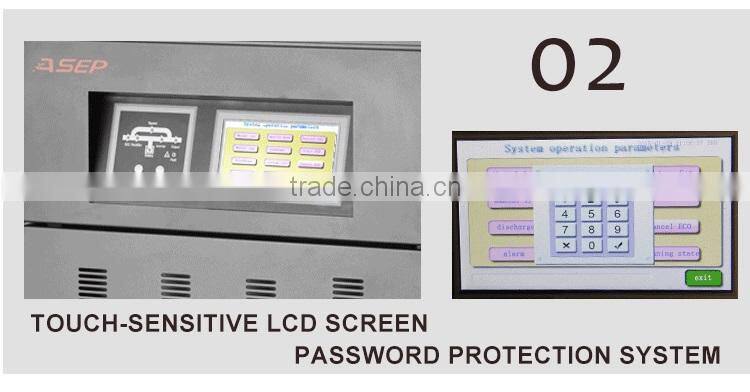

Data displayed on wide, clear and touch-sensitive LCD screen;
Code setting available;
ECO friendly design increases power efficiency up to 97%;
Charging current can be adjusted manually
Adaptability of 100% unbalanced load;

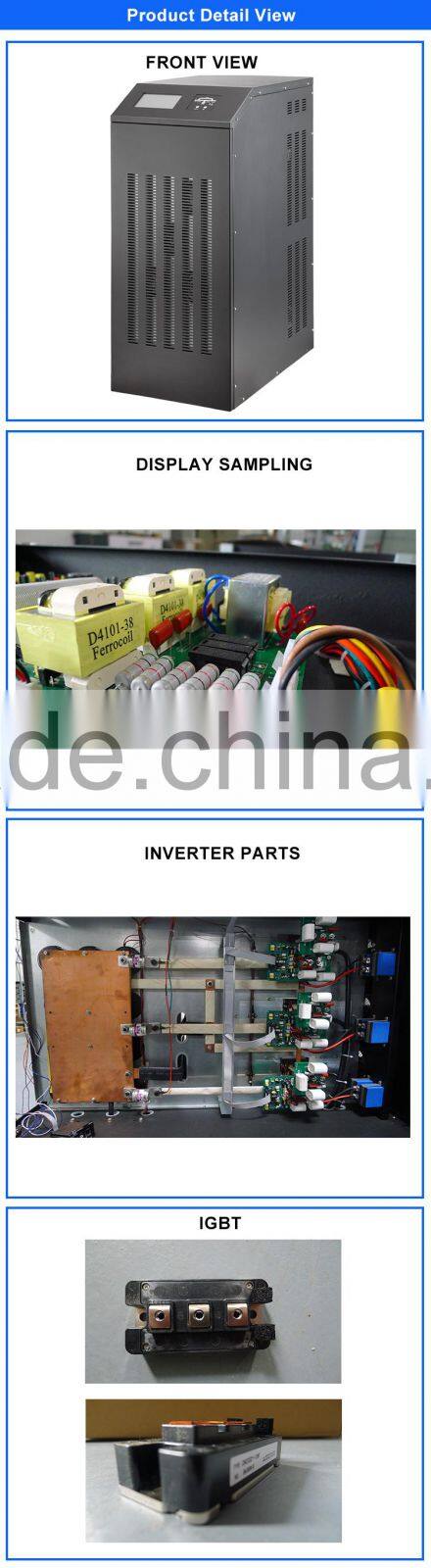

Advanced technique design,silicon controlled rectifier,static transfer switch,and output isolation;
Protection against over/lower input voltage,over/lower output voltage,over-current,over-heat;
N+X redundancy;
