15000 watt power inverter 220vdc to 220vac inverter 15kw
| Item No. | 3C10KS | 3C15KS | 3C20KS |
| Series Name | On-Line High Frequency | ||
|
Rated Capacity (with voltage regulated) |
10KVA | 15KVA | 20KVA |
| Input | |||
| Nominal Input Voltage | 304V-478V | ||
| input phases | Three Phases | ||
| Nominal Input Frequency | 46Hz-54Hz | ||
| Output | |||
| Nominal Output Voltage | 220V | ||
| Fluctuating range | ±2% | ||
| Nominal Output Frequency | 50Hz±2%Hz | ||
| Power Factor | 0.8 | ||
| Overload Capacity | Overload Condition Working time | ||
| 105%-130% ≥ 10Mins then turn to Bypass | |||
| ≥130% 1Min | |||
| Batteries & Runtime | |||
| Battery Type | |||
| Battery mounting | Extended Baterry Cabinet | Extended Baterry Cabinet |
Extended Baterry Cabinet |
|
Expected Battery Life (years) |
1 year ~ 3 years | ||
| Battery Capacity (AH) | according to customer need | ||
| Battery Voltage | 192V | ||
| Transfer Time | 0 MS | ||
| Physical | |||
| Mounting mode | Stand Alone Tower | Stand Alone Tower | Stand Alone Tower |
| Shipping Weight | 27KG | 35KG | 35KG |
| Shipping Width | 248MM | 248MM | 248MM |
| Shipping Height | 460MM | 460MM | 620MM |
| Shipping Depth | 500MM | 500MM | 500MM |

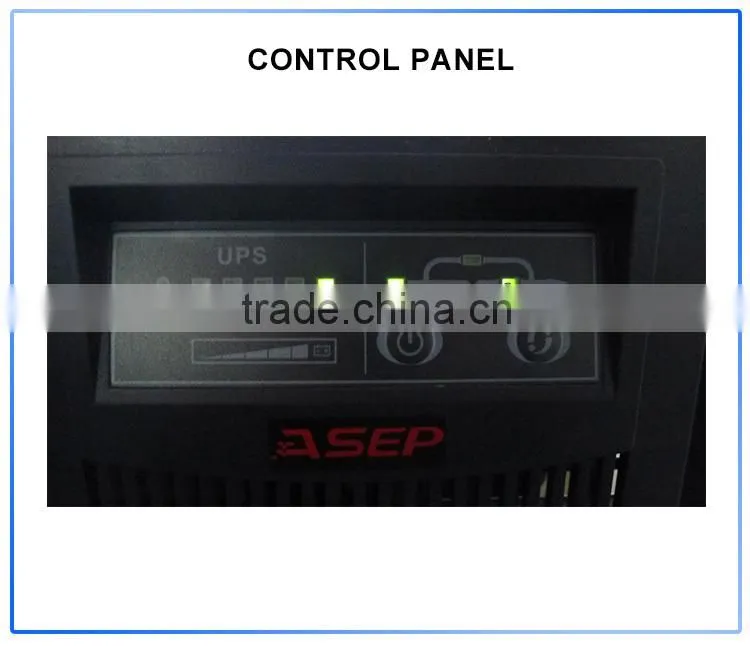

| Display | LED | ||
| Communication Interface |
RS232, Dry Contact, Intelligent Slot (SNMP Card and SMS Available) |
||
| Noise (within 1 m) | <55db | ||
| Color | BLACK | ||
| Environmental | |||
| Operating Temperature | 0℃ to 40℃ | ||
| Operating Relative Humidity | 10%-90% | ||
| Operating Altitude | ≤1500M | ||
| Conformance | |||
| Regulatory Approvals | ISO9001 | ||
| Standard Warranty | 1 year | ||
Features:
ASEP’s High Frequency online series uninterruptible power supplies are able to adapt to various utility power environment. The availability of higher frequency providing allows higher efficiency power supplying.
- Efficiency
PFC technology makes the power factor get close to 1.0, reducing the loss of power. Digital Signal Processing (DSP) stabilizes the quality of the power supply, and can be compatible with various equipments.
- Online maintenance allows repairing be safely carried on while supplying power continuously. Emergency-Power-Off(EPO) ensures the immediate shutdown of the UPS when emergency happens. Adding N+x parallel redundancy is possible.
- Powerful Extensive Function
RS-232 communication interface enables remote monitoring such as using EMD.
By using the intelligent slot SNMP card, RS485, AS400 card and WINPOWERCMC card all can be applied.
- Physical Features
- Dense but ordered assembly occupies less space, thus it’s convenient for neat arrangement. Running with low noise keeps the working environment less contaminated.
Product Advantages
After-sales service
A. Free training and Consultancy
Apart from the user manual, free personnel training is offered at our factory.
B. 2% Back-up material for main parts is provided.
For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.
C.One Year Warranty
If you have any questions, please feel free to contact us.
