Pure Sine Wave Offline UPS

Pure Sine Wave Offline UPS thumbnail-1
Pure Sine Wave Offline UPS photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ASEP
Model Number:
MT1000
Contact Supplier Request Quote Chat Now
Foshan ASEP Industrial Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan / Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ASEP
Model Number MT1000
Phase Single Phase
Protection Other, surge absorption; short circuit protection; over load protection
Weight 6.5KG
Output Voltage 220V
Type Standby
Application Other, PC; POS machine Tax control machine; micro terminal equipments



  Pure sine wave offline UPS

 Pure sine wave offline UPS



Item No.MT500MT1000MT1000S
Series NameMT Series offline UPS
Rated Capacity
 (with voltage regulated)		500VA/300W1000VA/600W1000VA/600W
Input
Nominal Input Voltage162VAC-268VAC
Fluctuating range±5%
Nominal Input Frequency(45-55)Hz±1Hz
Output
Nominal Output Voltage220VAC
Fluctuating range±10%
Nominal Output Frequency50Hz±1Hz
Batteries & Runtime
Battery TypeVRLA
Battery mountingEnclosed batteryExtended Battery Cabinet
Expected Battery Life (years)1 year~ 3 years
Battery Capacity 7AHx1PC7AHx2PCS___
Battery Voltage12V
Backup Time≥5MINS≥6MINS___
Transfer Time≤7MS
Physical
Shipping Weight6.5KG15KG12KG
Shipping Width400MM430MM430MM
Shipping Height200MM240MM240MM
Shipping Depth145MM210MM210MM
Communication InterfacesRS-232
ColorBlack
Environmental
Operating Temperature0-40℃
Operating Relative Humidity10%-90%
Conformance
Regulatory ApprovalsISO9001
Standard Warranty1 year



 Features:

ASEP’s off-line series (including TG,K, MT series) uninterruptible power supplies are your optimal choice of protection against data loss and devices damage due to power surges and power-off.

  • Compact assembly makes our devices portable and energy-saving.
  • Output in non-sine waveform, with AVR to stabilize and using PWM to modulate the pulse spike, our off-line UPS have the transfer time less than 7ms.
  • Providing protection of surge absorption, overload, and short circuit, they can be adaptable to environment of unstable power supply.

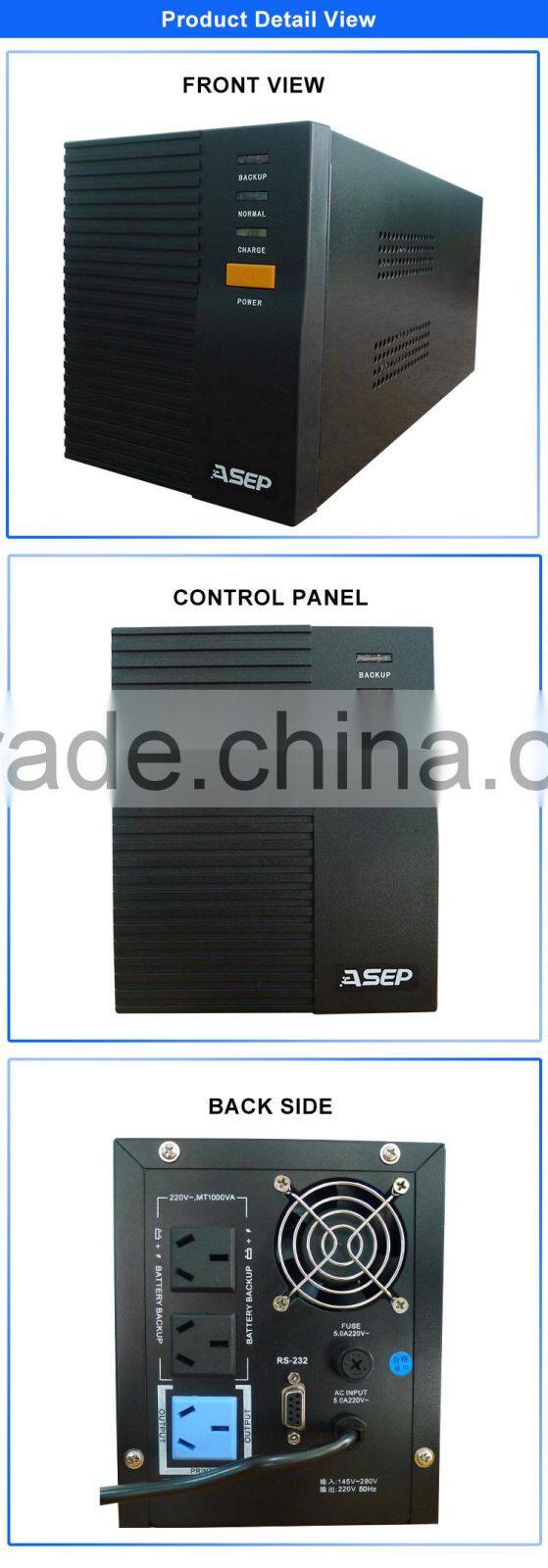

Details

Pure sine wave offline UPS

After-Sales Service

 After-sales service

A. Remote Technical Support (those with WIFI module installed);



   With WIFI module installed, we can help you monitor the performance of your machine.



B. Free training and Consultancy

   Apart from the user manual, free personnel training is offered at our factory.



C. 2% Back-up material for main parts is provided.

   For order more than 100 pcs and above, we can provide 2% back-up for key parts of the machine.



D.One Year Warranty



Contact US

Pure sine wave offline UPS



Packaging

Pure sine wave offline UPS

Production Flow

 Pure sine wave offline UPS

Shipping

 Pure sine wave offline UPS

Pure sine wave offline UPS
