10 Watts 20Watts 30Watts
high performance mini laser marker for small metal parts
Marking for many type metals and some nonmetallic material
70*70mm 110*110mm,160*160mm 200*200mm 300*300mm Marking Area Optional
10W 20W 30W laser power
Desktop or Hand-held model Optional
Model Number: GFF-10 GFF-20 GFF-30
Keyland Mini Fiber Marker Machine function
use to marking/engraving/printing on many type of metal material and some non metallic material with different design text,symbol,pattern,bar code,2D code, serial number, and suitable for online marking
Keyland Mini Fiber Marker Machine can work on the following material
- Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
- Alloy and metal oxides: Anodized Aluminum
- Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film
Applicate Industry
- Electrical Engineering and Electrical part and component
- Mobile (Cover,battery,keyboard, I Phone Case)
- Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
- Building materials,PVC pipe
- Car motor car spare part ,Insturment and meters and cutting tool
- plastic case,aviation and aerospace
- military product,hardware fitting and accessory,sanitary appliance
- food and beverage ,Medicine package and medical instrument,solar Pv industry
Technical Parameter of Keyland Mini Fiber Marker Machine :
Model:GFF-10 /GFF-20/GFF-30
Laser power:10W 20w 30W Germany IPG or Chinese kinds of brand name for option
Galvo Scanner:USA,Germany .Made-in-China kinds of brand names for option
Laser wavelength:1064nm
Marking area:70*70mm,110*110mm,160*160mm,200*200mm,300*300mm
Marking speed:≤7000mm/s
Marking Depth:0.05~0.5mm (according to materials)
Mini. line width:0.01mm
Mini. Character:0.1mm
Cooling way:Air cooling
Power supply:220V/110V~50Hz/60Hz/1KVA
Option device:Flying marking , rotary marking
Main Feature of Keyland Mini Fiber Marker Machine :
1.Fiber laser
German IPG fiber laser or China fiber laser Optional
NO maintenance laser source
fiber laser servicetime 100,K~20 0K hours
2.High speed galvo scanner
German or USA Galvometer or China made Optional (different price)
3.Easy Operate without route maintenance
4.Higher precision,faster speed
5.Air cooling
Small size,Maintenance free
6.Red light preview
show the marking position before lasering
7.Up and Down Lifter laser head(desktop) and up and down worktable
easy to marking engraving different workpiece
8.Rotary attachment optional
Engrave and mark inside and outside ring jewellery
9.High temperature resistance
Good for marking medical equipment etc that requires sterilization
10.The durability & Finer Marking quality
optimizes it for use in jewelry, mobile phones, and other items of value
11.Computer Installed with Free Powerful software10
User friendly interface, easy operation
Set and deal different layers graphic in separate
Support PLT,PCX, AL, DXF, BMP,JPG formats file;compatible AutoCAD, CorelDraw, Photoshop etc software
Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment
|
Up-down working table
|
Flying Marking
|
|
Double heads
|
Rotary Device
|

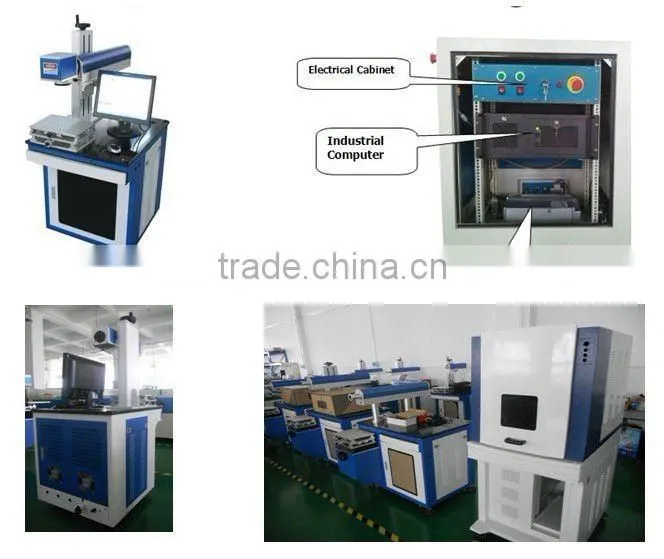

Keyland Mini Fiber Marker Machine 's Photo
About Keyland
Before quotation, would you please let me know some items following?
1.What materials do you want to mark on by our optical fiber laser marking machine?
2.What max. marking scope?
3.How about yourexpect marking performance?
More details with good price will be sent . Also more industry solution will be supplied.
Notice
Optical fiber laser marking machine agents wanted all over the world
Hope our good quality,comprehensive service and competitive price will help you expand your marketing sucessful
