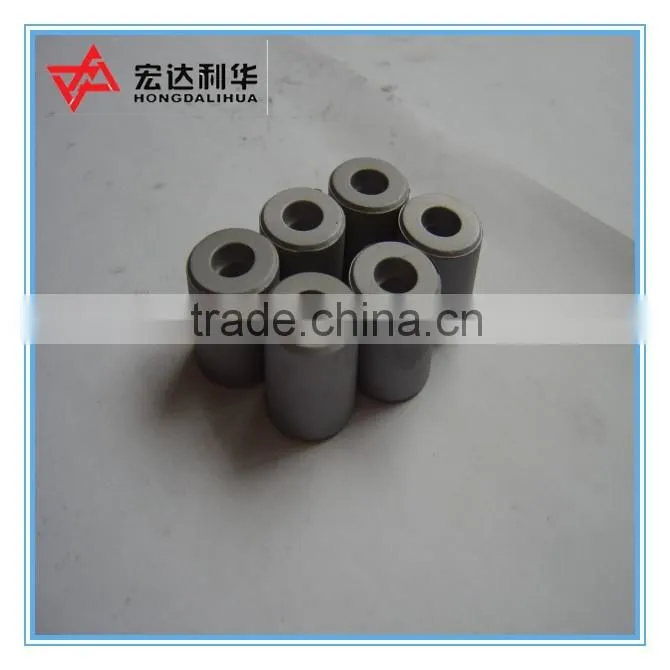

tungsten carbide wire drawing dies

Name: tungsten carbide wire drawing dies
Brand: lihua
Price: USD $6.05 - 6.25 / Piece

FOB Price

USD $6.05 - $6.25 / Piece

100 Pieces(Min.Order)

Supply Ability 2000 Kilogram / Kilograms per Month
Port zhuzhou
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hunan, China	Brand Name:	lihua	Model Number:	Customized
Alloy Specification:	YG6/YG8/YG8C/YG11/YG11C	Particle:	2-10

Product Description

Model NO.: carbide drawing dies Material: Tungsten Carbide Wire Drawing Dies
Hole Type: Round Mould Surface Treatment: Polish

Certification: ISO, SGS Customized: Customized

Place of Origin: Zhuzhou China (Mainland) Performance: Excellent Wear Resistance
Business Type: Manufacturer Trademark: LIHUA

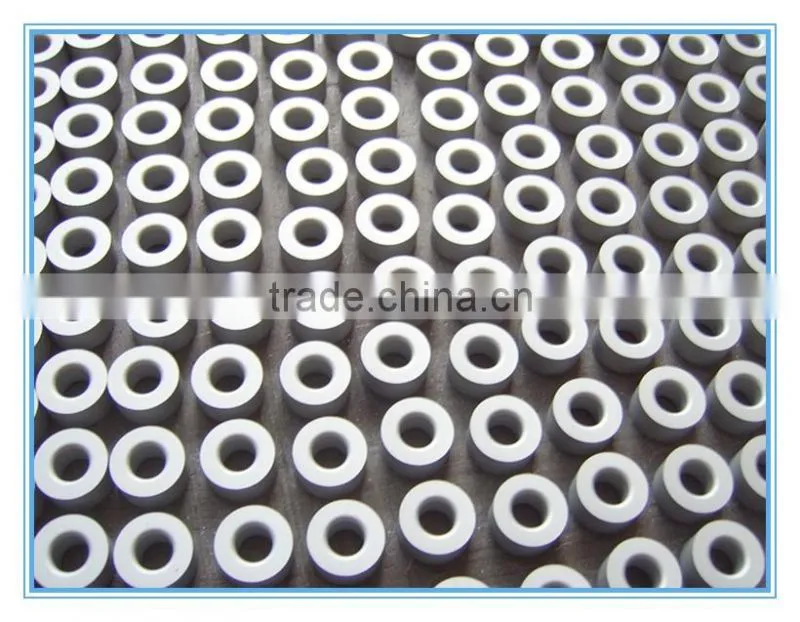

Origin: Zhuzhou, China (Mainland) Type: Tungsten carbide nib
Shaping Mode: Compression Cavity: Single-cavity
Application: Hardware, Electronic, Car Warranty: 1 Year
Name: Tungsten Carbide Wire Drawing Dies Cer: ISO9001 SGS
State: 100% Raw Material Advantage: Over 20 Years Experiences in This Line
Specification: ISO9001 SGS

The tungsten carbide drawing die adopts high-quality hard alloy as its core, with high hardness, good thermal conductivity, and low friction coefficient. In the process of using, it shows good corrosion resistance and impact resistance, and applicable to the drawing of black metal, large size wire, and which the drawing condition is worse. YG6 tungsten carbide wire rod drawing die.A wide selection of types. Various of grades such as YG6 YG8 YG6X YG15.

• Applications
Wire drawing dies/Cemented carbide wire drawing die
1. Dies for drawing metal wires
2. Dies for rods.
3. Dies for tubes.
4. Dies for plugs.
5. Non-standard drawing dies

Tungsten carbide drawing wire are widely applicable to many industries such as electronic devices, radar, television, instrumentation, aerospace, and many other high-precision industries. It is used for drawing low, medium and high carbon steel copper, aluminum and alloy wire. There are various sizes you can choose, and we can produce products according to your special designs and open mould in accordance with your requirements. Meanwhile there are various grades with different applications.

Tungsten carbide mark	Density g/cm³	Intension MPa	Hardness HRA	Applications
YG6X	14.95	1800	91.5	Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in coal geological prospecting,mining and oil well boring.
YG8	14.8	2200	89.5	Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YG10	14.5	2400	88.5	Used in the drawing die for non-ferrous metal bar and tube stock.
YG15	14	2800	87	For fabricating drawing dies of steel tube sand rods under high compressibility ratio; punching, stamping, and forging tools under large stress.
YM6X	14.95	1800	91.5	For drawing steel and nonferrous wires or bars of less than6.00mm under not so much stress.
YM6	14.95	1900	90.5	For drawing steel, nonferrous alloy bars of less than20.00mm under more stress and also for drawing tubes of less than 10.00mm.
YM8	14.8	2200	89.5	For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts.
YM10	14.5	2400	88.5
YM15	14.0	2800	87.0	For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting.
YG3	14.9-15.3	≥1180	≥90.5	Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting.
YG3X	15.1-15.4	≥1300	≥91.5
YK05	14.95	2500	90.5	Mostly used as the buttons of small and bits medium sized percussion and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C	14.8	2400	88.5
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in coal geological prospecting,mining and oil well boring.
YG6X	14.8-15.1	≥1560	≥91.0	Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A	14.7-15.1	≥1580	≥91.0
YG6	14.7-15.1	≥1670	≥89.5	Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8	14.6-14.9	≥1840	≥89	Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YG10X	14.5	2400	91.5	Fine grain alloy, good wear resistance, Used for processing hard wood, veneer board,PCB,PVC and metals.
YG11	14.4	2600	88.5	Forming or stamping dies for metal powders and nonmetal powders.
YG11C	14.4	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium hard, hard and very hard formations.
YG15	14	2800	87.5	For fabricating drawing dies of steel tube sand rods under high compressibility ratio; punching, stamping, and forging tools under large stress.
YG15C	14	3000	85.5	For oil cone drill bits, for medium soft and medium-hard rocks.
YG16C	13.9	2900	85.5	Impact resistance, hot forging dies etc.
YGH40	13.5-13.9	≥2450	≥83.0	Mainly for making hot dies.
YG20	13.5	3200	85.5	For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
YG18C	13.7	3100	84.5	Impact resistance forging dies, hot-press forging dies and rollers.
YG20C	13.5	3300	83.5	Dies for wear resistant or impact resistant application.
YG22C	13.3	3500	83	Nut forming dies and high impact resistance forging dies.
YG25C	13.1	3600	82.5	Stainless bolt header dies and rollers.
YT15	11.1-11.6	≥1180	≥91.0	Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel.
YT14	11.2-11.8	≥1270	≥90.5	Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting.
YT5	12.5-13.2	≥1430	≥89.5	Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting.

Attention:

In order to the use of tungsten carbide drawing dies more efficient, there are five points for attention:
1. the choice of equipment
2. pretreatment of wire material
3. choosing appropriate lubricant
4. exception handing
5. change fossilized dies in time

Certifications

Detailed Images

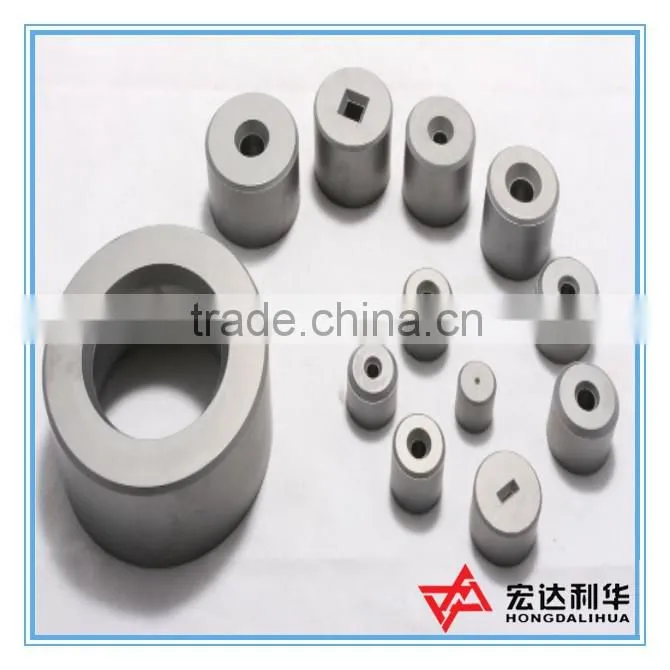

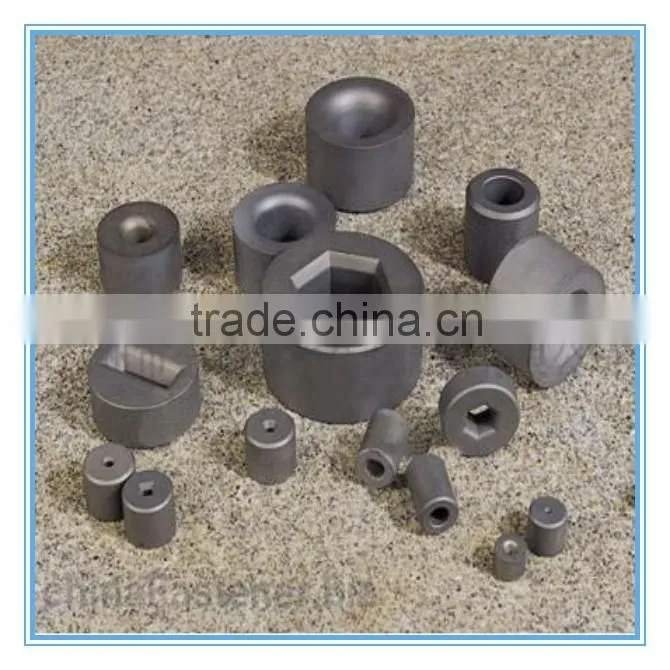

Machine Parts

Name: wire drawing dies

Brand: lihua

Original: china

Features:Our tungsten carbide drawing dies can draw for different material like mild steel, high carbon, stainless steel, brass, aluminum and so on. They could ensure the high surface roughness for high speed long time roughness for high-speed drawn steel wire, tungsten wire, molybdenum wire, tantalum wire and copper wire.

Our Service

Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	as required
Packaging Details	The normal package is carton box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

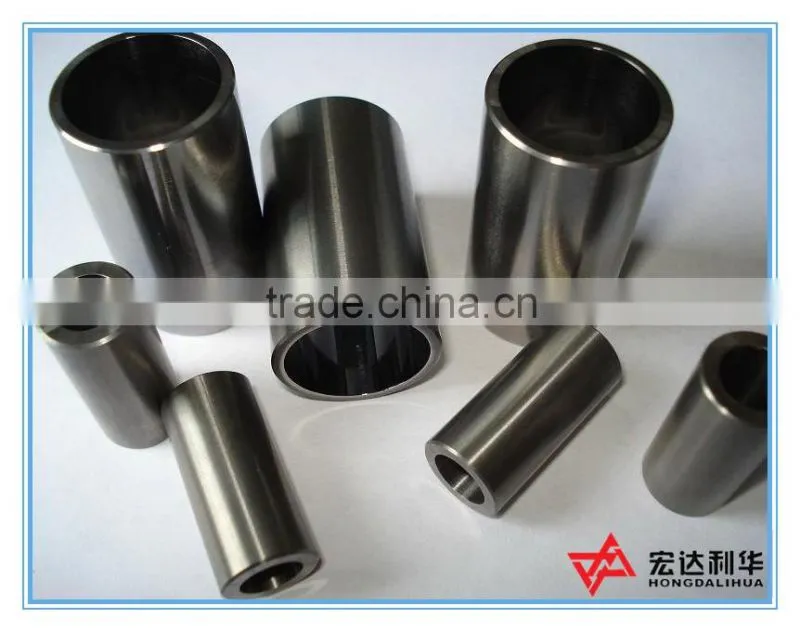

sleeves

91.8% Response Rate

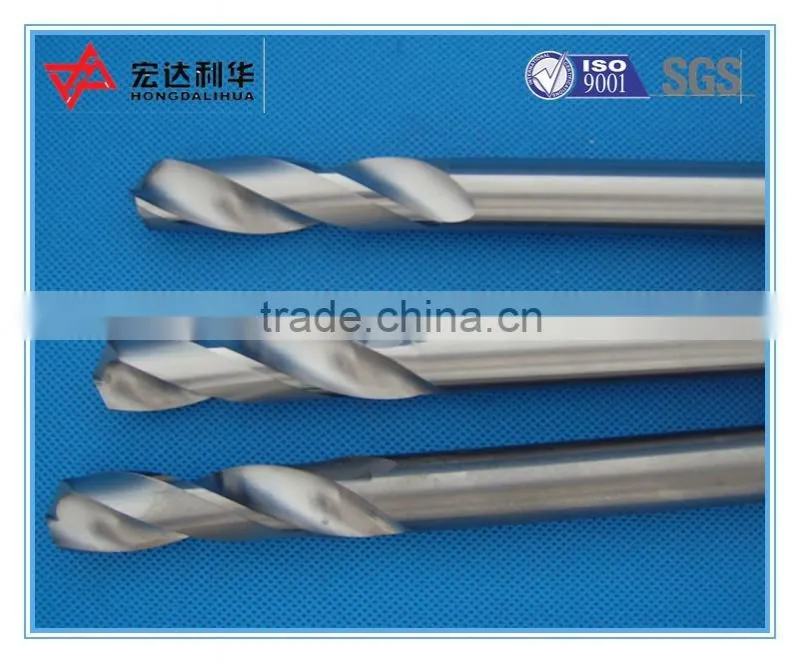

end mill drill bits
