Tungsten Carbide Button,yg6 Yg8 Tungsten Carbide Button

Tungsten Carbide Button,yg6 Yg8 Tungsten Carbide Button photo-1
US$ 9.00 - 9.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Lihua
Model Number:
LHCBCS0020
Payment & Shipping
Payment Methods:
Port of Shipment:
zhuzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name Lihua
Model Number LHCBCS0020
Type Other, tool parts
Product Description

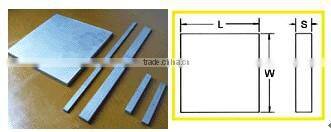

Tungsten Carbide Strips



Applications:



Tungsten Carbide Strips for Machine Tools. Usually used for general wood cutters / hard wood cutters ,plastic and tobacco cutting . and  meet the ISO9001:2000 quanlity standard.  We can make  the shipment in the shortest delivery time wtih the compeititve price than any other factory.  The application of  tungsten carbide strip for woodworking cast iron  cutting tool. It can be used in many field such as woodworking, machining of refractory alloys, stainless steel,

 high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc



1.Superior heat stability.
2.Anti-deformation in high temperature.
3.Fine thermal shock resistance.

4.High thermal conductivity.

5.Excellent Oxidation control ability.

6.Strong anti-corrosion in high temperature.

7.Good corrosion resistance from Chemical.

8.High-wearing feature.

9.Long usage lifetime.



Physical and mechanical properties of grades for cemented carbide square yg8 flat bar/strips tungsten k10&k20 carbide bar/strips for wood&metal cutting. Size of cemented carbide square yg8 flat bar/strips



tungsten k10&k20 carbide bar/strips for wood&metal cutting







Carbide Plate/Strips  Information







GRADE

ISO

DENSITY

(g/cm³)

TRS

(N/mm²)

HARDNESS

 (HRA)

APPLICATION







YG7

K10

14.8

1800

90.5

Better wear-resistance than YG6, suitable

for machining hard wood, original wood

as well as aluminum section bar, brass rod

and cast iron.

YG6

K20

14.9

1780

90.5

Excellent wear Resistance and strong

rigidity, suitable for the machining of

cast iron, non-ferrous metal as well as

bamboo and wood.

YG8

K20

14.7

1900

89

Good wear Resistance, excellent

anti-impact and anti-knocking properties,

suitable for the manufacturing of wood

working blade and machining ferrous and

non-ferrous metal.

YG8A

K20

14.7

2000

89.5

Good wear Resistance, excellent

anti-impact and anti-knocking properties,

suitable for the manufacturing of wood

working blade and machining ferrous and

non-ferrous metal.

YG10X

K40

14.5

2400

91

Suitable for processing hard wood, veneer

 board, PCB, PVC and metals.

YG12C

K40

14.3

2500

87.4

Suitable for crashing the cobblestone,

granite, construction materials, etc.



 tungsten carbide button,yg6 yg8 tungsten carbide buttontungsten carbide button,yg6 yg8 tungsten carbide buttontungsten carbide button,yg6 yg8 tungsten carbide button





Our Services



Our Advantages:

1)    Business Type:  Manufacturer, Factory.

ISO9001:2008, SGS.

2)    Advanced technology, HIP sintering and precision grinding to ensure the goods performance;

3)    100% Virgin pure Raw materials;

4)    Each product through the strict inspections and confirm to the requirements of the lab parameters;

5)    OEM & ODM are welcomed;

6)    Small order is acceptable;

7)    Flexible payment terms (L/C,T/T, western union, etc);

8)    Provide custom made service with customer's drawing; Other size could be offered by your requirements;

9)    We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;

10)Fast delivery and high quality;

11)Best after-sale service.





Company Information



Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.



Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.



We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.



Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
