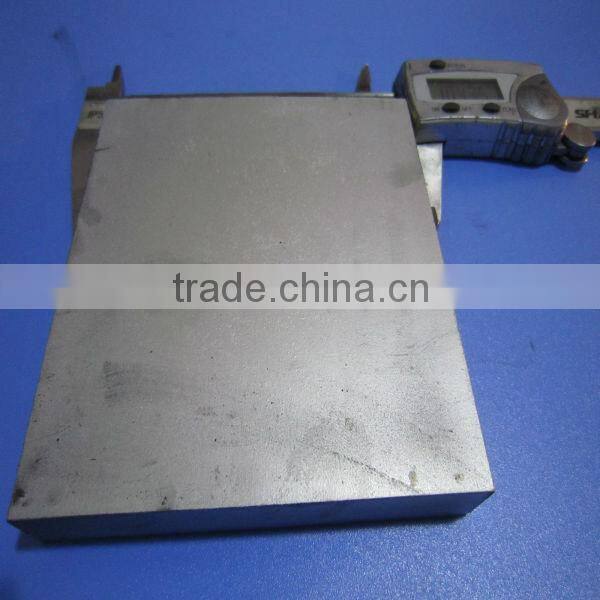

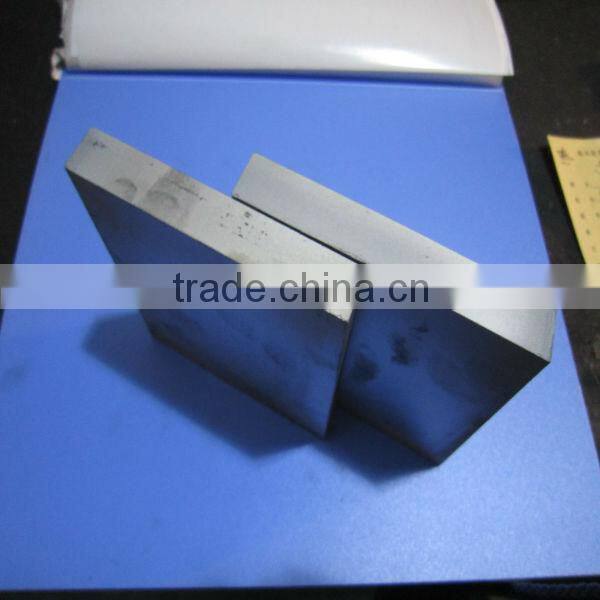

Home > Metallurgy, Mineral & Energy > Black Metal & Products > 100*100*2mm Size Tungsten Carbide Plates
US$ 45 - 85
MOQ: 2 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
HongDaLiHua
Model Number:
YG6
Payment & Shipping
Payment Methods:
Port of Shipment:
any designated port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
K20 Tungsten Carbide Wear StripUS$ 2 - 20MOQ: 10 Pieces -
Solid Tungsten Carbide Plates for Wood and Metal WorkingUS$ 50 - 80MOQ: 5 Kilograms
-
Tunsten Carbide Wear PlatesUS$ 70 - 100MOQ: 10 Pieces
-
K20 Cheapest Tungsten Carbide Bar ManufacturerUS$ 45 - 85MOQ: 10 Kilograms
-
Walter Solid Carbide Boring Bar and Tool Holders Tungsten Carbide BarsUS$ 45 - 85MOQ: 5 Kilograms
Place of Origin
Hunan, China
Brand Name
HongDaLiHua
Model Number
YG6
Application
Tool making
Shape
Lump
Material
cemented carbide
Dimensions
according to your requirement
Chemical Composition
tungsten
Specifications
1.Zhuzhou origin2.high wear resistance
3.100% raw material
4.excellent quality and reasonable price
Found in 1990, we are a professional manufacturer of carbide brazed tips,in addition,our company mainly produces all kinds of tungsten carbide plates, strips, mining tools, drawing dies, cutting tool tips, and various non-standard tungsten carbide, drills, carve drills, tool drills etc.
our advantages:
1. We have a few senior engineers who specializes in tungsten carbide field for many decades.we can select appropriate grade and composition according to your application and your requirements.
2. for your non-standard parts,we have rich experience to produce them per your requirements.
3. we have strict quality control and assurance system to guarantee the consistent quality.
| Specification | Tolerance | |||
| blank | precision grinding | |||
| H | B | L | ||
| 100×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 105×105(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 150×150(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 200×200(5.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 200×100(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 200×160(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 120×120(1.0~70) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 150×120(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 170×80×(1.0~20) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 150×100(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 100×90(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 100×80(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 100×50(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| 100×60(1.0~40) | +0.5 | ±2.2 | ±2.2 | ±0.01 |
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(MPa) | Applications recommended |
| YG6X | 14.95 | 91.5 | 1800 | For drawing steel and nonferrous wires or bars of less than D6.00mm under not so much stress. |
| YG6 | 14.95 | 90.5 | 1900 | For drawing steel, nonferrous alloy bars of less than D20.00mm under more stress and also for drawing tubes of less than D10.00mm. |
| YG8 | 14.8 | 89.5 | 2200 | For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. |
| YG10 | 14.5 | 88.5 | 2400 | |
| YG15 | 14 | 87 | 2800 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
