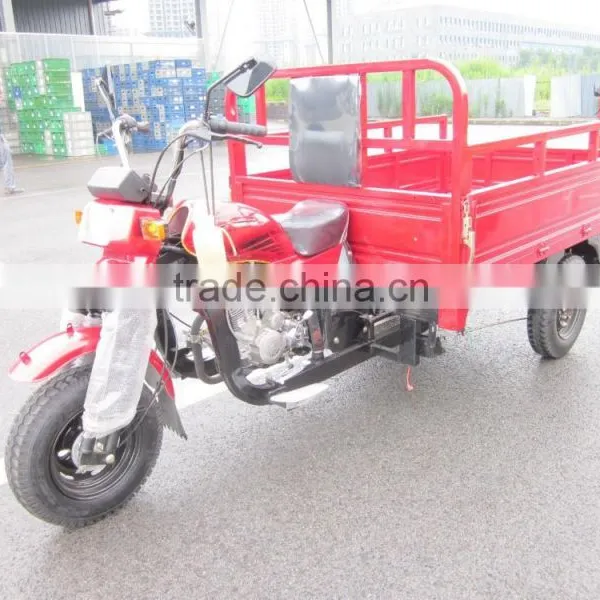

150cc,200cc,250cc Three Wheel

150cc,200cc,250cc Three Wheel thumbnail-1
150cc,200cc,250cc Three Wheel thumbnail-2
150cc,200cc,250cc Three Wheel thumbnail-3
150cc,200cc,250cc Three Wheel thumbnail-4
150cc,200cc,250cc Three Wheel thumbnail-5
150cc,200cc,250cc Three Wheel photo-1
150cc,200cc,250cc Three Wheel photo-2
150cc,200cc,250cc Three Wheel photo-3
150cc,200cc,250cc Three Wheel photo-4
150cc,200cc,250cc Three Wheel photo-5
Negotiable MOQ: 18 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
111 - 150cc
Contact Supplier Request Quote Chat Now
Chongqing Jialing-Jiapeng Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Motorized
Displacement 111 - 150cc
Body Type Open
Certification Other
Brand Name JIALING,JIAPENG
Place of Origin Chongqing, China
Model Number JH150-A

150cc,200cc,250cc three wheel150cc,200cc,250cc three wheel150cc,200cc,250cc three wheel150cc,200cc,250cc three wheel150cc,200cc,250cc three wheel

Most popular 150cc tricycle made in china



Product Technical Specifications(General Information) three wheel motorcycle data:

Part I
Technical Design

Application

Cargo&passengers Transport

Design Max Speed

≥60 km/h

Loading Capacity

500-1000

Unladen Kerb Weight

300 kg

Dimension(L*W*H)

 3020*1255*1390

Color

Red/Green/Yellow/Black/Other colors

Track

1050 mm

Wheel Base

2100 mm

Ground Clearance

160 mm

Brake Mode

Front&Back wheels, Drum

Transmission Type

Shaft Drive

Power

8.0 kw

Cool Type

Water Cooled or air cooled

Min.Fuel Consumption

354g kw.h

Fuel Type

Gasoline

Fuel Tank Capacity

12 L

Part II
Engine Details

Engine Type

Single cylinder,4-stroke,camshaft downward

Bore Stroke

63.5×49.5mm

Fuel Type

Gasoline

Compression Ratio

9.5:1

Rated Power&Rotating Speed

8.0 kw /8000rpm

Max.Torgue/Rotating Speed

11.0N.m /6500rpm

Lowest No-Load Speed Stability

1500rpm

Displacement(cc)

156ml

Ignition System

CDI

Apply to

Motor tricycle

Starter

Kick/Electric

Part III
Operation

Starting System

Electric/Kick

Transmission

5 Forward &1 Reserse Gears

Gearshift Control

Manual-Foot

Clutch Method

Manual-Hand

Brake Operate Mode

Manual-Hand or Foot

Part IV
Packaging

Transport

By Land/Sea/Other

Port Of Loading

Chongqing/Shanghai/Other ports of china

Original Manufacturer

CHONGQING JIALING JIAPENG INDUSTRIAL CO.,LTD

Package

Protective Packaging

Loading Capacity (CKD)

22 units in 20"GP,54Units in 40"HQ

Delivery Time (from loading port)

25-45 Days after receiving prepayment
