Cemented Carbide Square End Mills with Four Flutes and Perfect Coating
Cemented Carbide Producing Process Chart:
Specifications:
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow

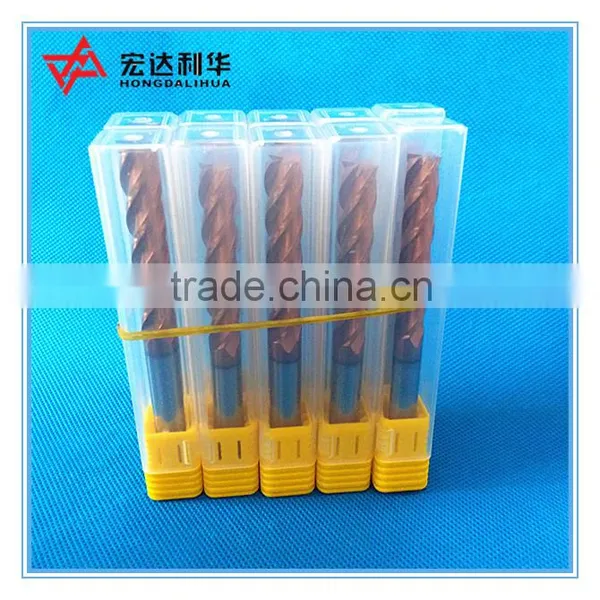

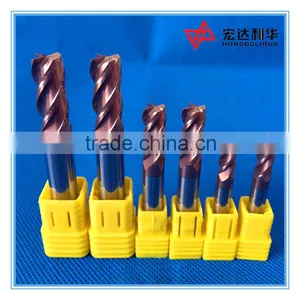

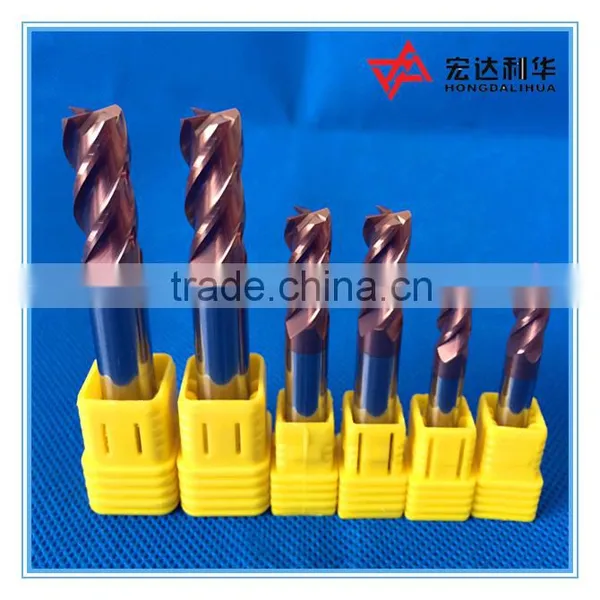

Detailed Images:
Standard size or make to order for special specifications:
Description of solid carbide end mills ,CNC end mill ,hardness end mill:
Super raw material:
|
HRC45 |
HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
|
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
Super coating:
|
Item |
AlTiN | TiAIN | TiSiN | NACO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Main Products:
Tungsten Carbide, Hardmetal Products, Carbide Cutting Tools, Titanium Alloy, Pure Tungsten, Cemented Carbide Products, Carbide Inserts, Carbide Rods, Carbide Plate and Bars, Carbide Tips,carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits,Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and
Different other various type of the tungsten carbide products and so on.
Company Brief Introduction:

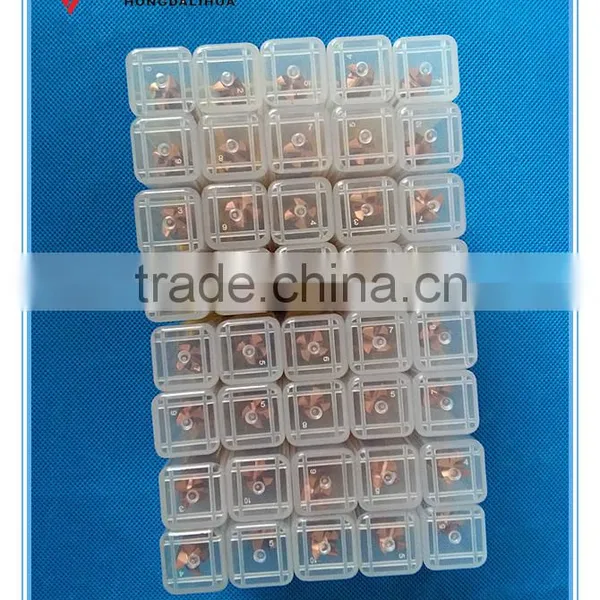

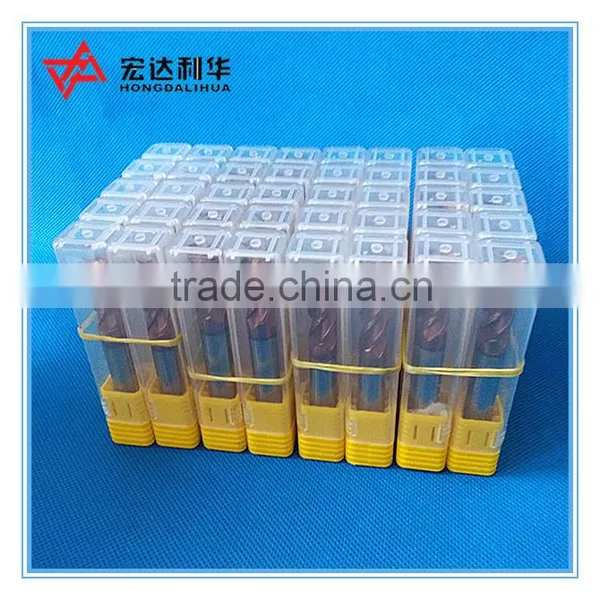

Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
We normally dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Estimate delivery time for each courier:
DHL: 10-14 working days
FedEx: 7 to 10 working days
UPS: 7 to 10 working days
EMS: 10-14 working days
