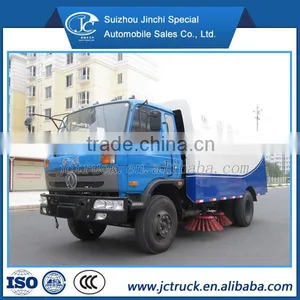

vacuum road sweeper truck with sweeping brushes
We are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.Compared with any other manufacturers, we can provide you all series of road sweeper truck and vacuum sweeper with best quality and the best price.
We have two kinds of sweeper truck, wet and dry cleaning. Wet cleaning is adopt wet dust removal , suction and sweeper combined. Dry cleaning takes suction as the key link, also suction and sweeper combined.Our sweeper truck also equiped with vice engine and 4 vertical Cyclone sweeper with Φ800 millimetre
1.Product: road sweeper truck and vacuum sweeper;
2.Drive model:4*2, 6*4;
3.Tank capacity:water tank 1-3CBM, garbage capacity 3-8CBM
4.Max sweeping width 3metre, sweeping speed 3-15 kilometer/hour, sweepingefficiency >95%, Max granule suction 110 millimetre .
5.Equiped with pump that made in Italy, solenoid valve made in Germany, motor and hydraulic system, the cab equiped withelectric hydraulic centralized control operation system.
6.Chassis brand:We have DongFeng, Foton, JMC series chassises.
vacuum road sweeper truck with sweeping brushes
1.with left/right hand drive optional.
2. Equipped with vice engine.
3.Best Quality with good price.
| Packaging Details: | Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request. |
|---|---|
| Delivery Detail: | 10 to 25 days after receiving your payment(T/T,L/C). |
| Technical parameters | ||||
| The totalmass(kg) | 12490 | Curb Weight(kg) | 5945 | |
|
Rated the quality of(kg) |
6350 | Chassis Model | EQ1128GLJ | |
|
Approach / departure angle(°) |
30/24 |
Front overhang / rear overhang |
1250/1800 | |
| Dimensions(mm) | 7000X2450X3000 |
Compartment dimension(mm) |
||
| Number of axles | 2 | Maximum speed | 95 | |
|
Tire Specifications |
9.00-20 16PR,9.00R20 16PR,10.00-20 14PR,10.00R20 14PR | Number of tires | 6 | |
| Front track | 1810 | Rear track | 1800 | |
| Wheelbase | 36,503,800,395,041,000,000 | Axle load | 4990/7500 | |
| Number of spring | 9/11+8,8/10+8,8/11+8,9/10+8 | Type of fuel | Diesel | |
|
Emission Standards |
Euro3/Euro4 | |||
| Engine parameters | ||||
| Engine Model | YC6J180-42 | Engine Manufacturer | dongfeng | |
|
Engine Displacement |
6500 | Engine power | 132 | |
|
Chassis Description |
Dongfeng 4x2 chassis, with left/right hand drive optional, flat cab with air conditioner. | |||
|
Modified Description |
1. Container:water tanker and garbage box,volume:3-10CBM, material: stainless steel. 2. Equipped with vice engine. 3. Equipped with two-way operation button and rinse function. |
|||
| Component | Basic composition:chassis,tanker,secondary engine,hydraulic operation system,spraying and pressuring dust system,sweeping brushes. | |||
| Purpose | Road sweep truck, as one of the sanitation equipment, is a new and high-efficiency equipment with the collection of road surface cleaning, garbage collection and transport. Cab be widely used in highway, municipal and airport road etc. | |||
| Product advantage | Best Quality with good price. | |||
