JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle

JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle thumbnail-1
JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle thumbnail-2
JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle thumbnail-3
JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle thumbnail-4
JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle photo-1
JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle photo-2

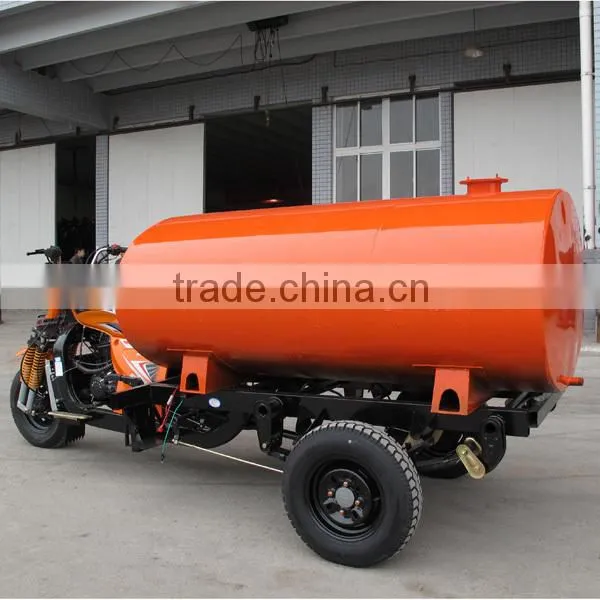

JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle photo-3

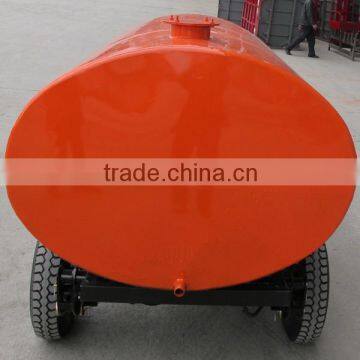

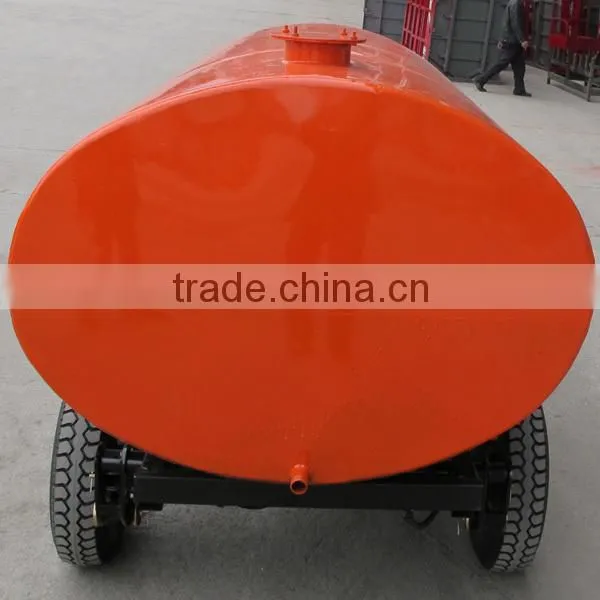

JIALING Tricycle for Tank Car Use 200cc Cargo Tricycle photo-4
Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
151 - 200cc
Contact Supplier Request Quote Chat Now
Chongqing Jialing-Jiapeng Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Motorized
Displacement 151 - 200cc
Body Type Open
Certification Other
Brand Name JIALING,JIAPENG
Place of Origin Chongqing, China
Model Number JL200-W
Size 3020*1255*1390
Dimensions
L*W*H 3200*1260*1300mm
Carrige: 1800*1250mm
Wheelbase 2080mm
Trackbase 1110mm
Brake style(F/R): drum/drum
Gears 5 forward 1 reverse
Front tire: 4.50-12 three same interchangeable  tyre
Rear  tire: 4.50-12
Transmission mode: shaft
Min.ground clearance: 175mm
Vehicle weight: 300kg
Rated load weight: 500kg
Fuel tank capacity: 12L
Fuel: RQ-90 or above
Engine model 200CC engine
Type: 4 stroke, singel cylinder, air-cooled
Bore*Stroke: 63.5mm*62.2mm
Displacement: 200.0ml
Compression ratio: 9.0:1
Max.speed: 60km/h
Max.power & rotating speed 12.0kw/8000r/min±475r/min
Max.torque & rotating speed: 15.0N.m/6000r/min±375r/min
Min,Fuel consumption <=354g/kw.h
Idle speed: 1500r/min
Starting way: Electric/Kick
Ignition: C.D.I
Lubrication way: Pressure and Splash
Clutch way:  Wet Multi-Plate
Carburetor: PZ27
Engine oil: 15W/40-SE
Capacity of the engine oil: 1100ml

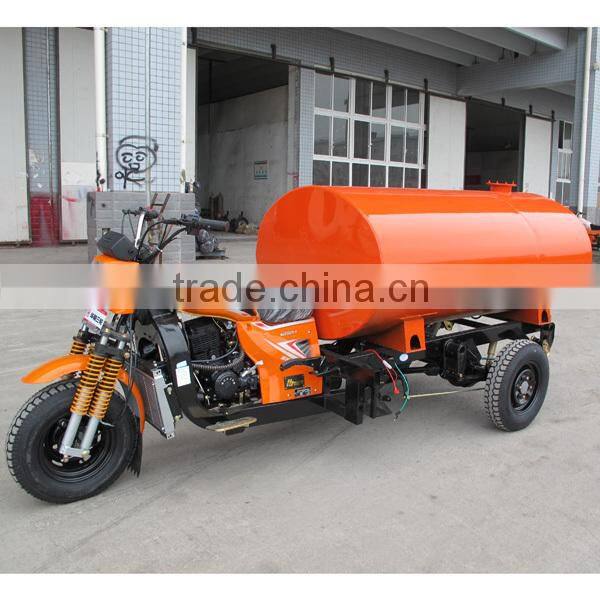

 JIALING tricycle for Tank car use 200cc cargo tricycle



Packaging & Shipping

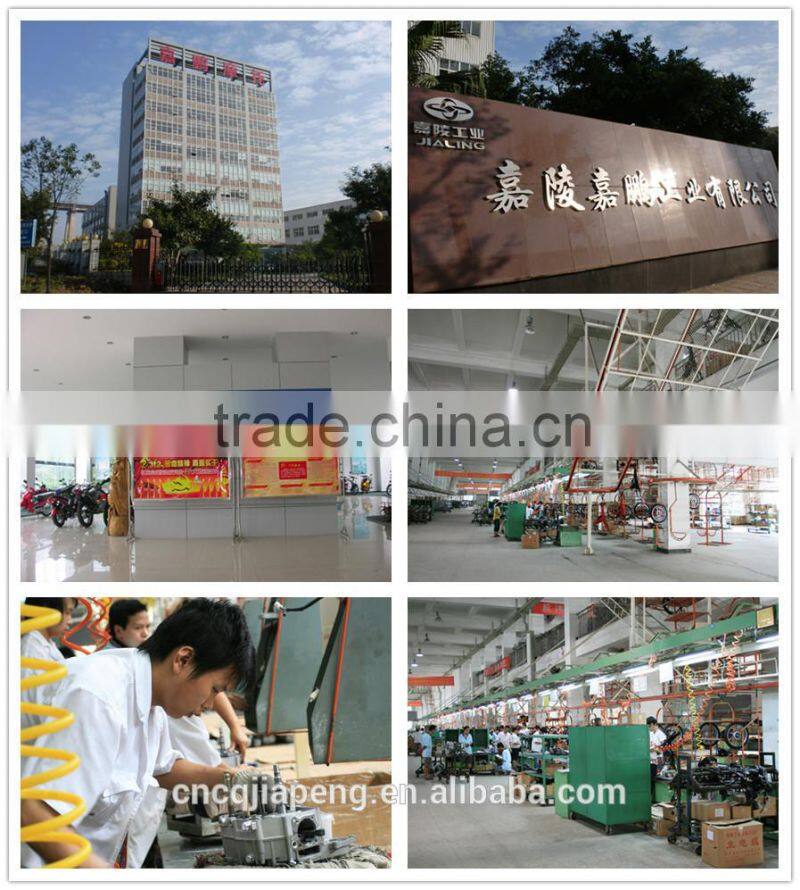

Company Information

 JIALING tricycle for Tank car use 200cc cargo tricycleJIALING tricycle for Tank car use 200cc cargo tricycleJIALING tricycle for Tank car use 200cc cargo tricycle





Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Chongqing Jialing-Jiapeng Industrial Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
5,000-10,000 square meters
Total Employees
201 - 300 People
