Quality 42000L oil tanker trailer factory price
The overall description of our fuel tank semi trailer series
We are a professional manufacturer of semi-trailer in China, we can provide our customers various semi-trailer with best prices and best quality.
1.Product model:2 axles semi-trailer, 3 axles semi-trailer, etc;
2.Products:container semi-trailer, van semi-trailer,flat bed trailer, low bed semi-trailer, tank semi-trailer, refrigerated semi-trailer, container skeleton semi-trailer, chemical liquid tank semi-trailer,etc;
3.Equipment: 13/15/16 tons axle with famous brand of Fuhua and BPW, double 28tons landing
legs, 7.5/8.0 steel rim, steel wire tyres and other kinds of tyres with different brands, 50#/90# traction pin, ABS anti-lock braking system, with spare wheel carrier and tool kit.

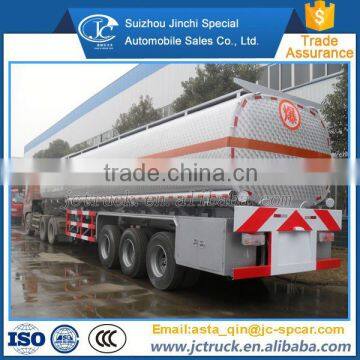

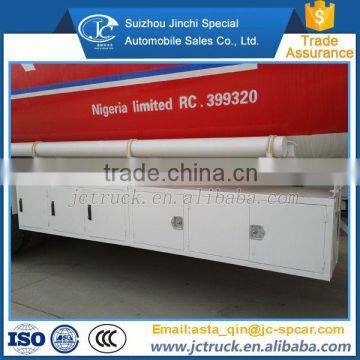

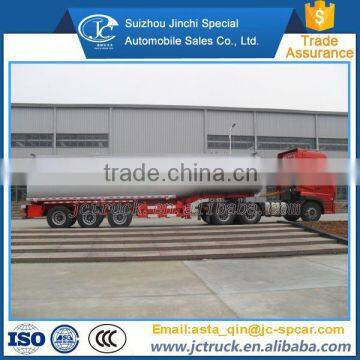

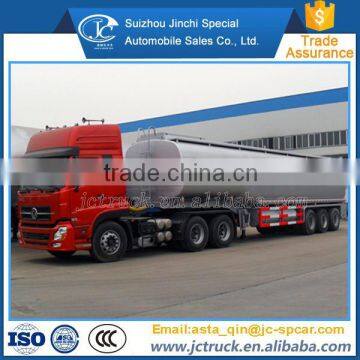

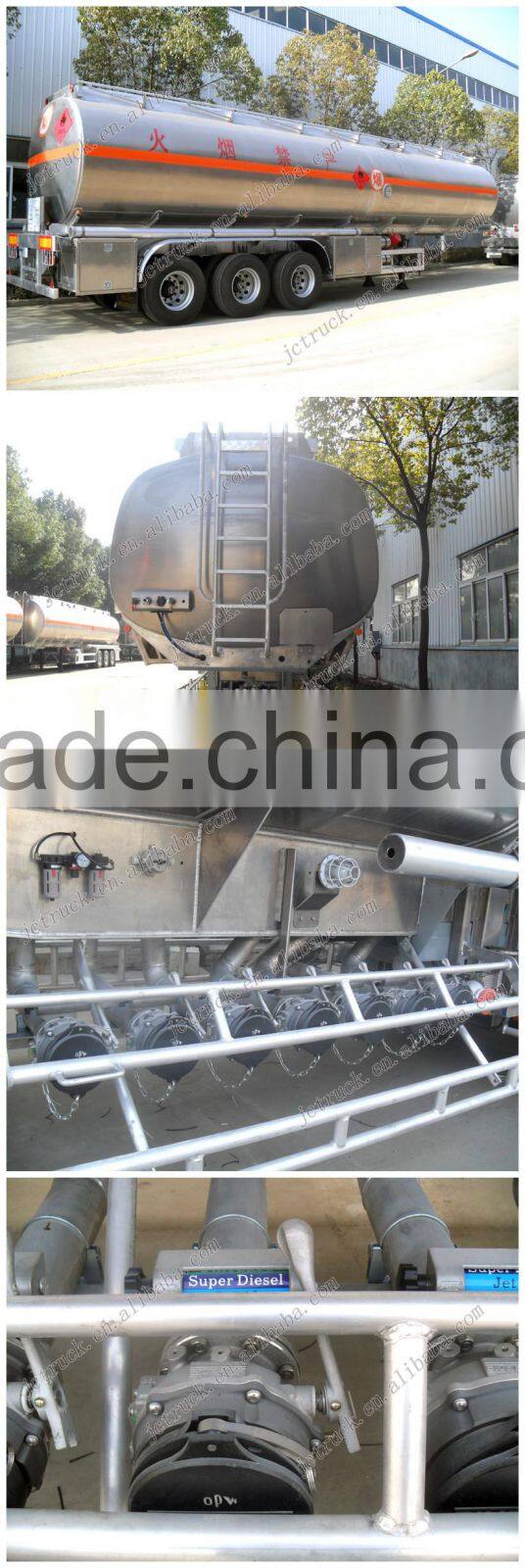

Product Photos
Quality 42000L oil tanker trailer factory price
1.We are the manufacturer.
2. used for goods transportation.
3. High quality with bset price
Detailed parameters of this fuel tanker trailer
Quality 42000L oil tanker trailer factory price
| Semi-trailer dimension | Overall dimension(Lx!xH)mm | 13650x2485x3900 | ||||||
| Tank capacity | 54000 Litres / Top Space gaz 5% | |||||||
| Tanker thickness | 5mm | |||||||
| Tare weight(kg) | 13000 | |||||||
| GVWR(Kg) | 56200 | |||||||
| Brake system | Brake | Dual line pneumatic brake system. | ||||||
| Type 30/30 spring brake system on two axles. | ||||||||
| ISO type air coupling at front of the semi-trailer | ||||||||
| 2 axles with WAVBCO ABS and air vavles | ||||||||
| Technical Characteristics | Suspension | Under mount tri-axle suspension with equalizer: leaf spring | ||||||
| Axle | 3 Axles, BPW axle 14,000 kg capacity | |||||||
| Wheel | 10 holes 9-22.5 steel Disc, 13pcs. Made in China, including one spare wheel | |||||||
| Tire | 315/80R22.5, 13pcs. Made in China, including one spare tire. | |||||||
| King Pin | JOST 3.5" | |||||||
| Electric System | Voltage | 24 volts | ||||||
| Receptacle | 7 volts | |||||||
| Front marker lamp | White | |||||||
| Side marker lamp | Amber | |||||||
| Gabarit lamp | Amber | |||||||
| Stop | Red | |||||||
| Turn signal lamp | Amber | |||||||
| Landing Leg | Landing Leg | Jost A400. Two speed manual operated from one side | ||||||
| Capacity | Statics : 80 Ton, Lifting 25 Ton | |||||||
| Tank Specifications | Number compartments | 6 | ||||||
| Steel Quality | Q345A | |||||||
| Thickness | Side:~ 5 mm Botton : ~ 5 MM | |||||||
| Test of pressure | 36 kpa | |||||||
| Shape of tank | Ellipse, double "D" | |||||||
| 6 compartments | 9 000/ 9 000/ 9 000/ 9 000/ 9 000/ 9 000 + 10% of GAS = 60 000 | |||||||
| NAME | SPECIFICATION/MODEL | QTY | ||||||
| Man hole cover | 20" SV171110 /Top manual double lock system | 6 | ||||||
| Foot vavle | 4" PBVM100 / 100FL 90L | 6 | ||||||
| Discharge vavle | 3 " type DN80 | 6 | ||||||
| System control pneumatic | 3A /PST2A control block | 6 Compt | ||||||
| Indicator(Informer) of contents | 6 faces | 6 | ||||||
| King pin | JOST 3.5" | 1 | ||||||
| Landing Leg | JOST A400 | 1 | ||||||
| Suspensions | Under mount tri-axle suspension with equalizer; leaf spring | 1 | ||||||
| Axle | BPW axle 14,000 kg capacity | 3 | ||||||
| Wheel | 10 holes 9-22.5 steel disc | 13 | ||||||
| Tire | 315/80R22.5 | 13 | ||||||
Packing & Shipping, Trade Terms
Shipping
- By sea :/Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc;
- Customers specifying freight forwarders or negotiable shipping methods;
- Delivery Time: 10-25 days.
Payment Terms
- Payment: T/T, L/C,Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery,
- MOQ: 1 UNIT
- Warranty: 1 year
- Trade Insurance
Why choose us?
1.We are Alibaba Trade Assurance Gold Supplier.
2.We are a factory manufacturing all kinds of special purpose vehicles,best production capability ,best quality control, best Service .
3.We have long-term cooperation with Shanghai Shipping Company with on time, safe and reliable shipping.
4. Our company can handle a variety of crelated certification of vehicles according to your needs.
5.100% QC inspection Before Shippment.
6.Our products meet OEM/ISO9001/CCC certifications,competitve price.
7. Warranty:1 year or 12 months.
