Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Foton 4X2 4CBM Dry Cement Mixer Truck
US$ 23,500 - 31,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Foton
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China as your request.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Foton 10cbm Concrete Mixer Truck With PumpUS$ 69,000 - 83,000MOQ: 1 Set -
1 Yard Concrete Mixer/Concrete Mixer Shacman Delong 6x4 10cbmUS$ 51,000 - 65,000MOQ: 1 Set
-
Made in China 5CBM China Concrete Mixer Truck SupplierUS$ 36,000 - 48,000MOQ: 1 Set
-
Hot and Famous RHD/LHD Cement Mix Truck Manufacturer's PriceUS$ 36,000 - 48,000MOQ: 1 Set
-
Top Quality and Best Price of Dongfeng 143 Cement Mixer Truck for Sale With Best Price Manufacturing Quality ChoiceUS$ 36,000 - 48,000MOQ: 1 Set
Condition
New
Place of Origin
Hubei, China
Brand Name
Foton
Model Number
BJ5142GJB-G1
Weight
13560
Dimension(L*W*H)
7125X2480X3450
Power(W)
96
Certification
ISO
Warranty
one year
After-sales Service Provided
Overseas service center available

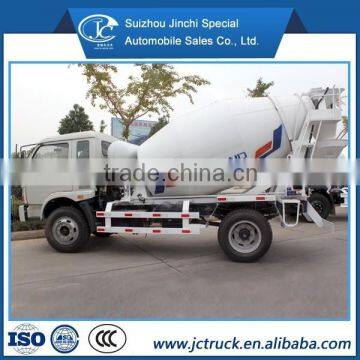

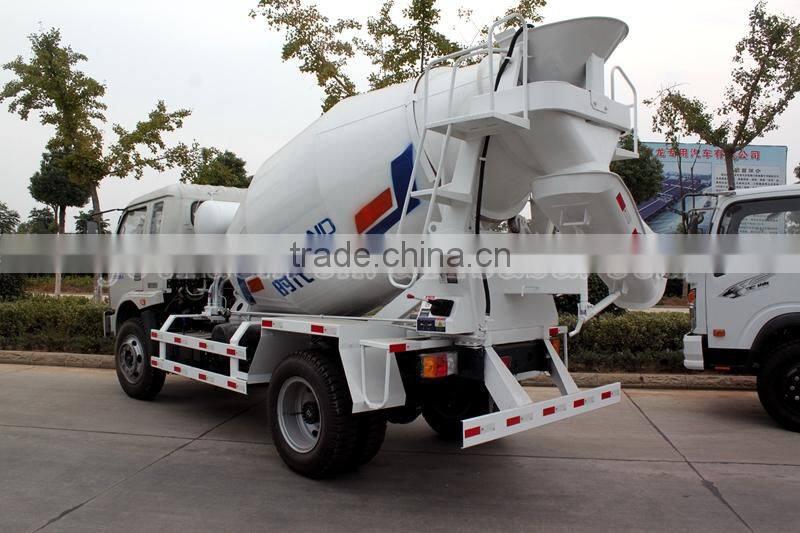

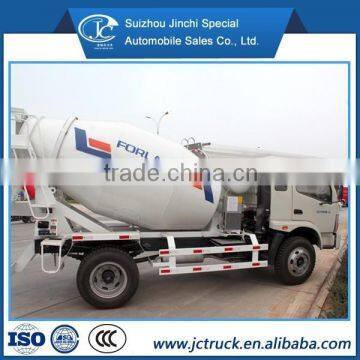

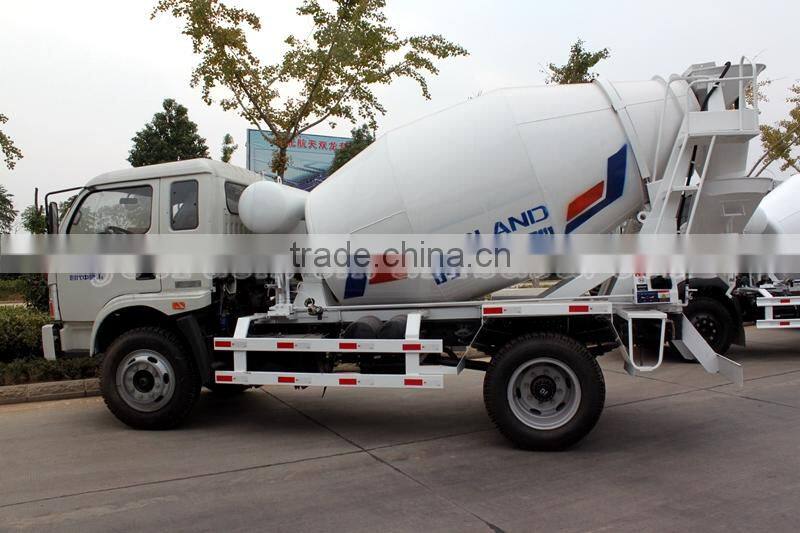

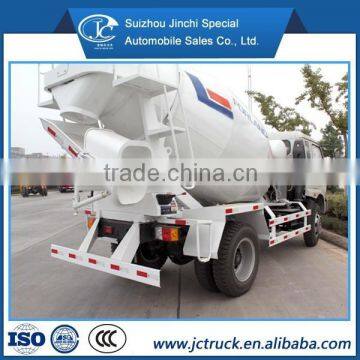

Foton 4X2 4CBM dry cement mixer truck
Product Description
Foton 4X2 4CBM dry cement mixer truck
1. flat cab with left/right hand drive/AC.
2. FAW 350 Horsepower,Euro III/Euro IV Emission Standard ,9 shift gearbox.
3. The Mixing Volume is 12m³,apply the ZF reduction gears, German Rexroth, motor.
Packaging & Shipping
Packaging Detail: | Available packages: Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request. |
Delivery Detail: | Within 10 to 25 days after receiving your payment(T/T,L/C). |
Main Specifition
| Technical parameters | ||||
| The total mass(kg) | 13560 | Curb Weight(kg) | 5860 | |
| Rated the quality of(kg) | 7505 | Chassis Model | BJ5142GJB-G1 | |
| Approach / departure angle(°) | 29/20,29/22,29/20 | Front overhang / rear overhang | 1245/1980,1245/1815,1245/1980 | |
| Dimensions(mm) | 6825,6460,7125X2480,2300X3450,3600 | Compartment dimension(mm) | ||
| Number of axles | 2 | Maximum speed | 80 | |
| Tire Specifications | 8.25-20 16PR,8.25R20 16PR, 9.00-20 16PR,9.00R20 16PR | Number of tires | 6 | |
| Front track | 1790 | Rear track | 1725 | |
| Wheelbase | 3600,3400,3900 | Axle load | 5150/8410 | |
| Number of spring | 9/11+9 | Type of fuel | Diesel | |
| Emission Standards | Euro III/Euro IV | |||
| Engine parameters | ||||
| Engine Model | YC4D130-41 YCD4F2L-115 CA4DF4-17E4 | Engine Manufacturer | Guangxi yuchai machinery co., LTD Guangxi yuchai machinery co., LTD Liberation, faw car co., LTD., wuxi diesel engine factory | |
| Engine Displacement | 4200 3922 4750 | Engine power | 96 85 127 | |
| Chassis Description | 1,FAW J6 6x4 chassis, flat cab with left/right hand drive/AC. 2,FAW 350 Horsepower,Euro III/Euro IV Emission Standard ,9 shift gearbox 3,16 tons rear axle,00R20 tire. | |||
| Modified Description | 1.The Mixing Volume is 12m³,apply the ZF reduction gears, German Rexroth, motor. 2.The front head uses 8mm anti-wearing alloy material,the Stirred tanks and Leaf blade made by 6mm anti-wearing alloy material,with Air-Pressure Operated Water Supply Equipment. | |||
| Product advantage | Good uniformity,High output&discharge speed, Reliable hydraulic transmission system,easy to operate and attractive in appearance. | |||

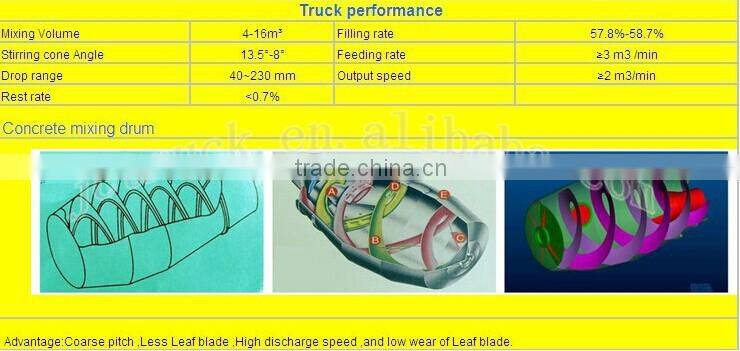

| Truck performance | ||||
| Mixing Volume | 4-16m³ | Filling rate | 57.8%-58.7% | |
| Stirring cone Angle | 13.5°-8° | Feeding rate | ≥3 m3 /min | |
| Drop range | 40~230 mm | Output speed | ≥2 m3/min | |
| Rest rate | <0.7% | |||

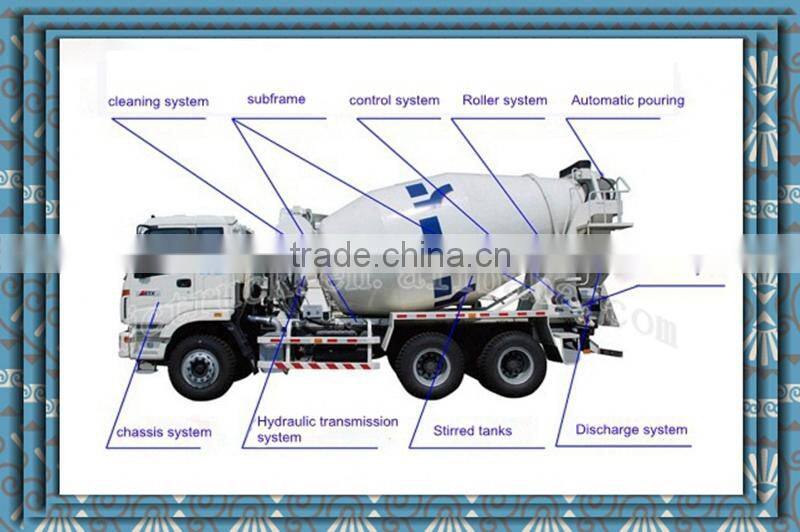

Concrete Mixer Components
