Home > Products > Concrete Mixer Truck/Concrete Pump Truck > North Benz 6X4 12CBM Concrete Stir Pump Truck
North Benz 6X4 12CBM Concrete Stir Pump Truck
US$ 42,800 - 73,500
/ Set
1 Set(Min. Order)
- any port in China as your request.
- T/T PayPal
You May Like
-
Dongfeng 20/22/24/26/28m Truck Mounted Concrete Pump Truck With 4x2 Wheel Drive for Hot Sale
-
Dongfeng 5m3 Small Concrete Mixer Truck Price
-
SINO HOWO8X4 16CBM Concrete Stir Pump Truck
-
DongFeng 12CBM Concrete Mixer Truck for Sale
-
SINO HOWO 6X4 10CBM Concrete Stir Pump Truck
-
SINO HOWO 8X4 15CBM Concrete Mixer Truck ,in Good Condition
Product Details
| Condition | New | Place of Origin | Hubei, China | |
| Brand Name | North Benz | Model Number | DND5250GJBWA37 | |
| Weight | 25000 | Dimension(L*W*H) | 9120X2500X3990 | |
| Power(W) | 380 | Certification | ISO certificate | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

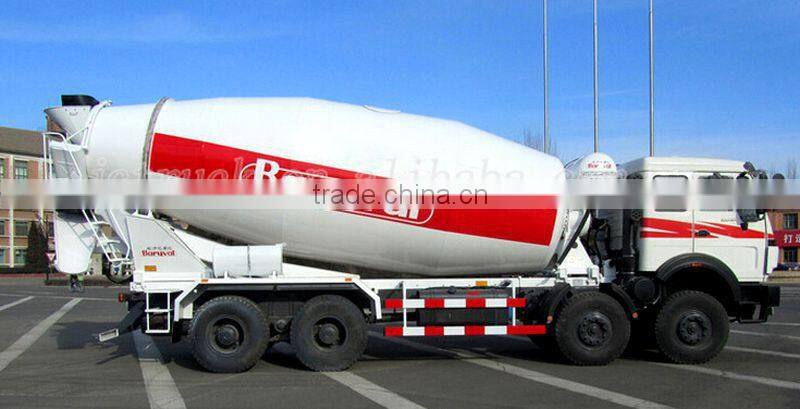

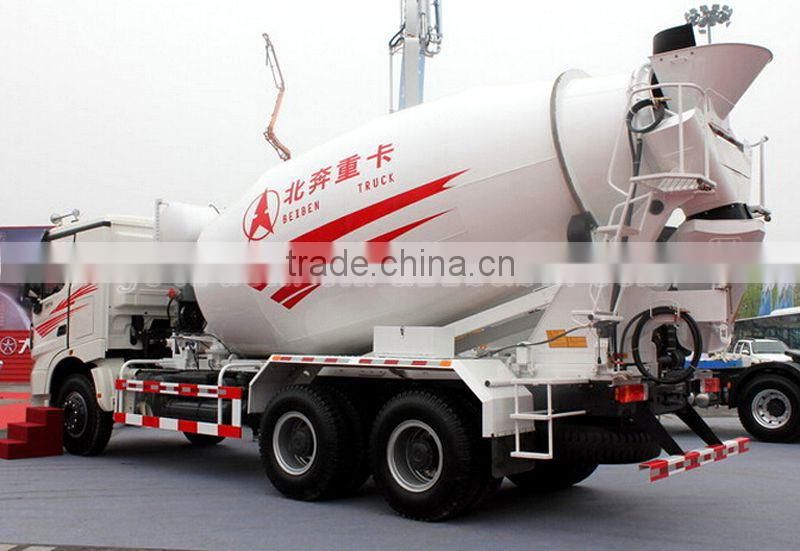

North Benz 6X4 12CBM Concrete stir pump truck
Product Description
North Benz 6X4 12CBM Concrete stir pump truck
1. We are the manufacturer.
2. OEM is OK.
3. ISO certificate.
Packaging & Shipping
| Packaging Details: | Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc. and it can be offered according to your request. |
|---|---|
| Delivery Detail: | 10 to 25 days after receiving your payment(T/T,L/C). |
Main Specifition
| Technical parameters | |||
| The totalmass(kg) | 25000 | Curb Weight(kg) | 13000 |
| Rated the quality of(kg) | 11870 | Chassis Model | ND12501B35J |
| Approach / departure angle(°) | 26/22 | Front overhang / rear overhang | 1410/2580,1410/2530 |
| Dimensions(mm) | 8840X2500X3980 | Compartment dimension(mm) | |
| Number of axes | 3 | Maximum speed | 90 |
| Tire Specifications | 10.00-20 18PR ,10.00R20 18PR,11.00-20 18PR,11.00R20 16PR,295/80R22.5 16PR | Number of tires | 10 |
| Front track | 2045 | Rear track | 1872 |
| Wheelbase | 3500+1350,3450+1450 | Axle load | 7000/18000 |
| Number of spring | 10/13 | Type of fuel | Diesel |
| Emission Standards | Euro3/Euro4 | ||
| Engine parameters | |||
| Engine Model | WP10.270E40 | Engine Manufacturer | |
| Engine Displacement | 9726 | Engine power | |
| Chassis Description | 1,6x4 chassis, flat cab with left/right hand drive/AC 2,Euro III/Euro IV Emission Standard ,10-12 shift gearbox 3,16 tons rear axle,700R20 tire | ||
| Modified Description | 1.The Mixing Volume is 12m³,Material:Q345 and apply the ZF reduction gears, German Rexroth,motor. 2.The front head uses 8mm anti-wearing alloy material,the Stirred tanks and Leaf blade made by 6mm anti-wearing alloy material,with Air-Pressure Operated Water Supply Equipment. | ||
| Product advantage | Good uniformity,High output&discharge speed, Reliable hydraulic transmission system, easy to operate and attractive in appearance. | ||
| Truck performance | ||||
| Mixing Volume | 4-16m³ | Filling rate | 57.8%-58.7% | |
| Stirring cone Angle | 13.5°-8° | Feeding rate | ≥3 m3 /min | |
| Drop range | 40~230 mm | Output speed | ≥2 m3/min | |
| Rest rate | <0.7% | |||

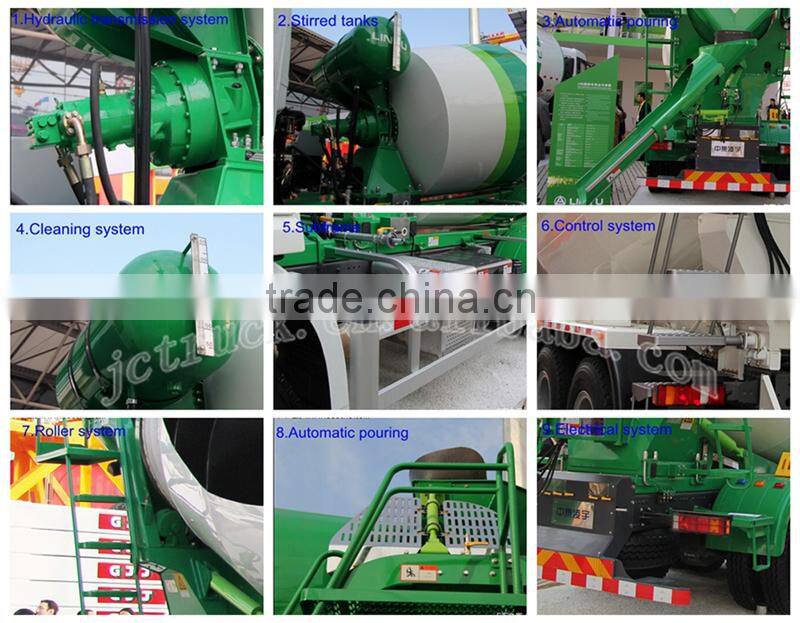

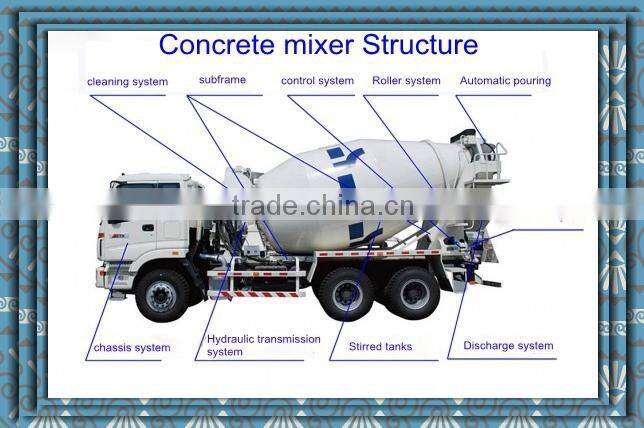

Concrete Mixer Components
