Specifications
Zinc Plated Gabion Box :1. Mesh:60*80; 80*100;100*120mm 2.galfan/hot galvanzied/pvc coated wire
Zinc Plated Gabion Box with hole size 60*80mm
gabion wire mesh Baskets (Boxes) are made of hexagonal Galvanized / PVC / Zinc coated double-twisted mild steel wire mesh.
Material: high quality low carbon steel wire( hot-dip galvanized wire, electro galvanized wire galfan wire or PVC/PE coated wire.)
Application: This kind of products is widely used to prevent soil erosion and retain soil particles, reduce water velocities and recapture river bed sediment in streams; also used mostly in the civil engineering industry especially in the construction of roads; recently due to their environmental benefits, they are used in various Application such as bank stabilizition, channel lining and weirs.
| specification of gabion hexagnonal mesh | |||
| Size of mesh aperture(mm) |
Wire diameter (metal wire) (mm) |
Used wire diameter (PVCmetal wire) inside diameter/outside diameter(mm) |
Largest wide range (m) |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 4.3 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 4.3 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 4.3 |
Length( L ) |
Width(W) |
Heigth(H) |
Quality |
1M |
1M |
1M |
6m² |
2M |
1M |
1M |
11m² |
3M |
1M |
1M |
16m² |
4M |
1M |
1M |
21m² |
5M |
1M |
1M |
26m² |
6M |
1M |
1M |
31m² |
7M |
1M |
1M |
36m² |
8M |
1M |
1M |
41m² |
9M |
1M |
1M |
46m² |
10M |
1M |
1M |
51m² |
Processing of weaving mesh

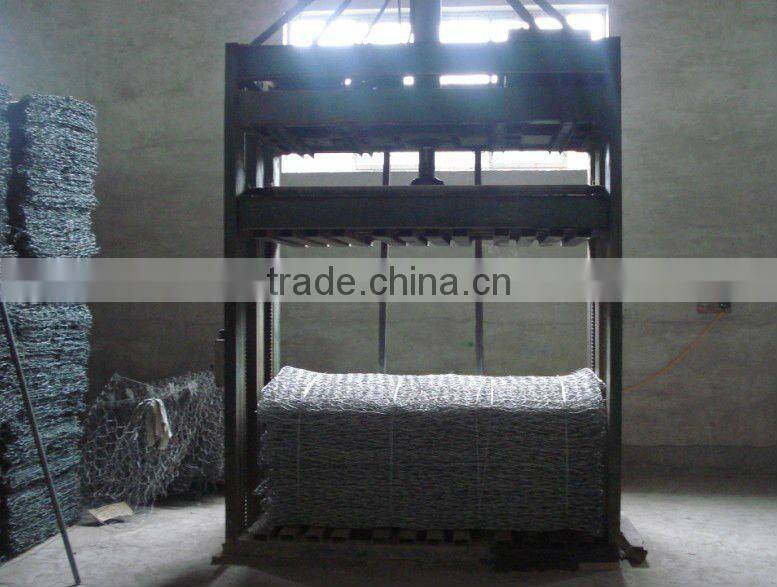

Compression

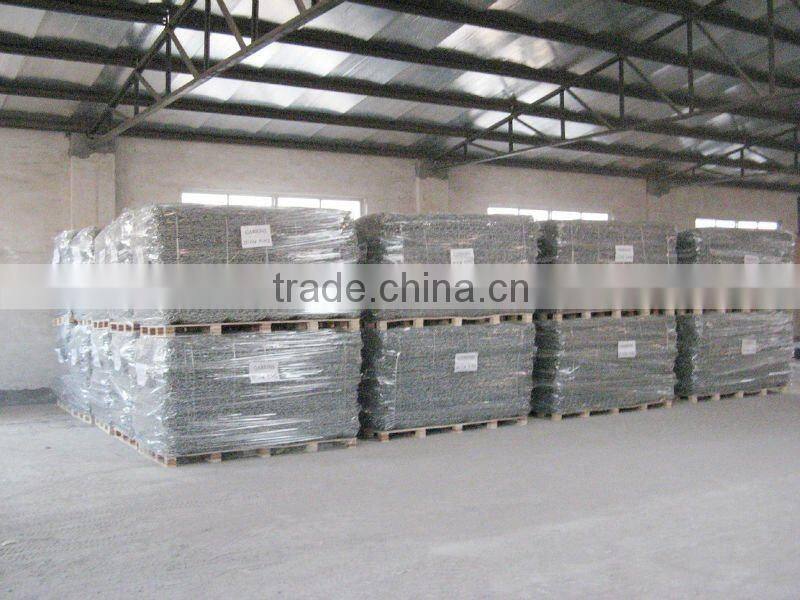

Finished packing
Loading container
