Wire Mesh Gabions
- XinGang
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Knitted Wire Mesh | Application | Protecting Mesh | |
| Weave Style | Plain Weave | Wire Diameter | n | |
| Technique | Woven | Model Number | As you demand | |
| Brand Name | HUADE |
Product Description
Specifications
Woven Gabions (Wire Mesh Gabions):1.Holes 80x100mm 2. Wire 2.7/3.0mm/2.2mm 3.hot dipped galvanized
Woven Gabions (Wire Mesh Gabions) :
Gabion Baskets /Double-twist mesh/Rockfall Protection Netting / Woven Gabions (Wire Mesh Gabions)
1.Holes 80x100mm 2. Wire 2.7/3.0mm/2.2mm 3.hot dipped galvanized
We supply four kinds of hexagonal wire mesh according to the material:
1.Galvanized Hexagonal Iron Wire netting
2.Plastic-Coated Hexagonal Wire netting
3. Stainless steel hexagonal wire netting
4.gabion mesh (heavy hexagonal wire netting)
Weaving type:
Straight twist reverse twist
Uses:
Hex. Wire mesh can be extensively used as pipe wrapping in petroleum and chemical industry and for construction, residential windows, garden fences as well as fence for fish pools, poultry farms and zoos.
Regular specification for galvanized, PVC coated and stainless steel hexagonal netting:

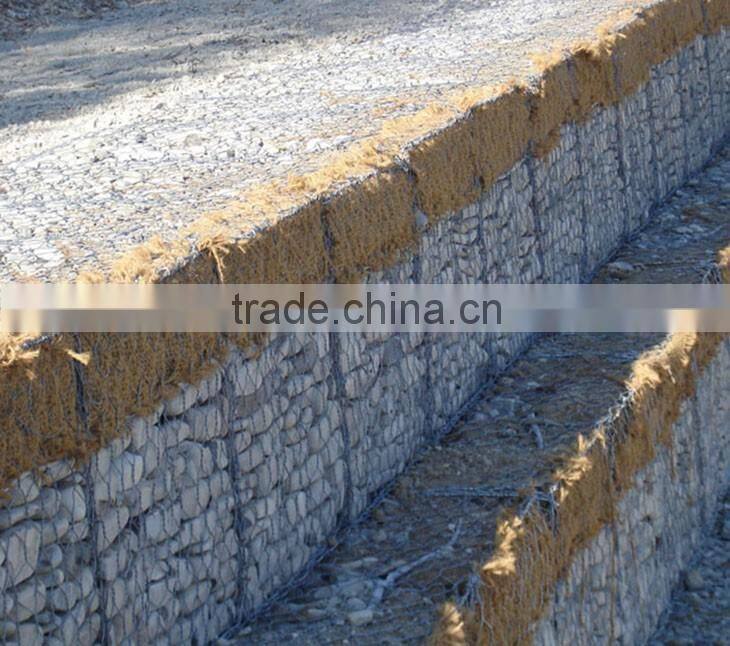

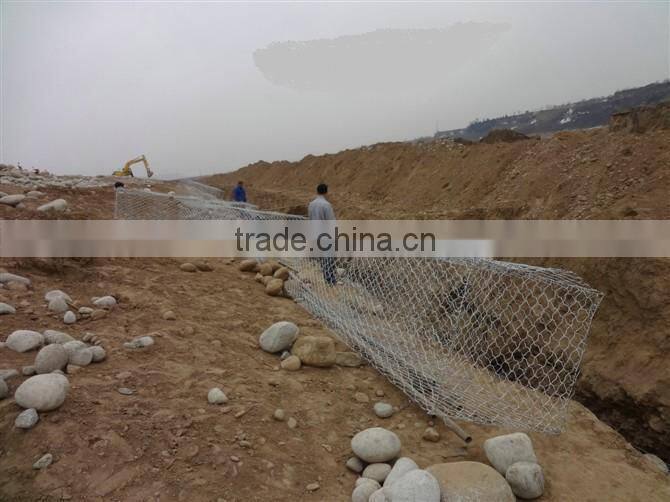

Heavy hexagonal mesh and gabion mesh, also called big type hexagonal mesh. Enjoys wide applications. Heavy type hexagonal wire mesh can be made into gabion boxes used in control and guide of water or flood, flood bank or guiding bank, proventing of rock breaking, water and soil protection, bridge protection, strengthening structure of soil, protection engineering of seaside area, seaport engineering, isolation walls, protection of road, etc.
Regular sizes for gabion mesh and Heavy Hexagonal Wire Mesh
Mesh size (mm) | Wire diameter (mm) | PVC coated wire netting Inside dia./outside dia.(mm) | Roll width (m) |
60X80 | f2.0-2.8 | 2.0/3.0-2.8/3.8 | 4.3 |
80X100 | f2.2-3.2 | 2.2/3.2-3.0/4.0 | 4.3 |
80X120 | f2.2-3.2 | 2.2/3.2-3.0/4.0 | 4.3 |
100X120 | f2.4-3.5 | 2.4/3.4-3.2/4.2 | 4.3 |
100X150 | f2.4-3.5 | 2.4/3.4-3.2/4.2 | 4.3 |
120X150 | f2.7-4.0 | 2.7/3.7-3.5/4.5 | 4.3 |
Different sizes are also available to customers need
