Help CenterBrass Gate Valve
US$ 1.5 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Gate
Pressure
Medium Pressure
Power
Manual
Material
Other, Brass, Brass
Temperature of Media
Medium Temperature
Media
Water
Port Size
3/8',1/2",3/4"1"1-1/4",1-1/2",2"
Place of Origin
Zhejiang, China
Model Number
6675
Brand Name
Safewell
Specification of our Gate Valve:
Name: |
Brass Gate valve |
Size: |
3/8”, ½" . ¾" . 1", 1¼" .1½" . 2" |
Material |
58-3A or CW617N or DZR |
Working Pressure |
1Bar≤P≤16Bar |
Working Temperature |
-20°C≤T≤170°C |
Suitable Medium: |
Water, Non-Causticity Liquid & Saturated Steam |
Threads |
BSP or NPT |
Finish |
Yellow Brass |
Place of Origin |
Zhejiang China(Mainland) |
Delivery Port |
Ningbo or Shanghai,China |
Delivery Time |
30days |
Terms of payment |
L/C ,T/T |
Supply ability |
3000 per day |
Minimum order |
100PCS |
Package |
White Box then Standard Export Carton & Pallet.If customer has special requirement.It is available to provide the colorful package according to the design of customers |

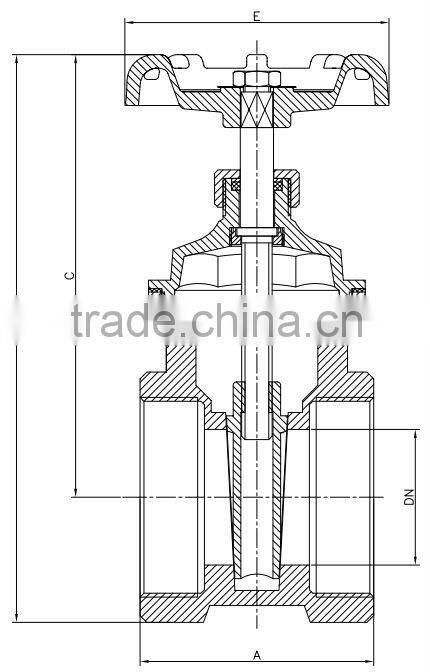

Size |
A |
B |
C |
DN |
E |
1/2" |
38 |
83 |
68 |
13 |
53 |
3/4" |
42 |
88 |
70 |
15 |
55 |
1" |
48 |
97 |
80 |
19 |
60 |
1”1/4 |
52 |
121 |
98 |
25 |
70 |
1"1/2 |
57 |
126 |
107 |
31 |
70 |
2" |
59 |
148 |
120 |
37 |
80 |
