Specifications

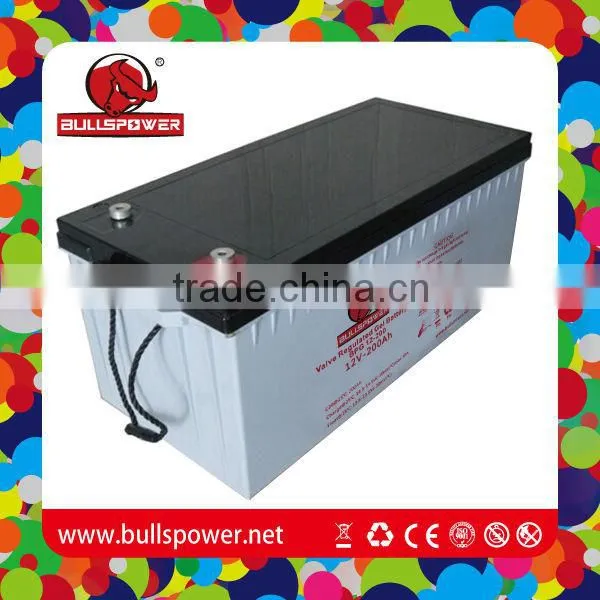

Deep cycle Gel battery 12v 200ahCE approval
Deep discharge rate
Long warranty time 3 years
100% DOD,more than 350 cycles
10% Discount Deep cycle GEL battery 12v200ah back up battery for Solar Heat Water system
All of our products must pass 55 QC inspection points before shipment.
Extra Features:
1.Germany PVC Separator and SiO2 100%.
2.Excellent Recovery from Deep Discharge.
3.Solving the acid layering which normal battery cannot.
4.Longer life time than normal AGM battery-- at least 10 years.
5.GEL Battery has smaller internal resistance compared to AGM.
6.Can be used with wide temperature range (from -25 ℃-+60 ℃).
Capacity 77°F(25ºC) |
20 hours rate(10.0A 10.8V) |
200Ah |
10 hours rate(18.6A 10.5V) |
186Ah |
|
5 hours rate(32A 10.5V) |
160Ah |
|
1 hour rate(116.8A 9.6V) |
117Ah |
|
Internal Resistance |
Full charged battery 77°F(25ºC):3.24mΩ |
|
Operating Temperature Range |
Discharge:-20 to 60 ºC |
|
Charge:-10 to 60 ºC | ||
Storage:-20 to 60 ºC | ||
Self-Discharge | ||
3% of capacity declined per month at 20ºC(average) | ||
Max discharge current77°F(25ºC):3000A(5S) | ||
Charge (Constant Voltage) |
Float:13.6 to 13.8V/77°F(25ºC) |
|
Cycle:14.4 to 14.7V/77°F(25ºC) | ||
Max Current:40A | ||
| MODEL NO. | Nominal Voltage (V) | Nominal Capacity (AH) | Dimension(MM) | Weight (KG) | Terminal | Layout | |||
| L | W | H | Total H | ||||||
| BPG12-24T | 12 | 24/10HR | 165 | 126 | 174 | 174 | 7.7 | M5 | B |
| BPG12-26T | 12 | 26/10HR | 166 | 175 | 126 | 126 | 8.4 | M5 | B |
| BPG12-33T | 12 | 33/10HR | 196 | 130 | 155 | 167 | 10 | M6 | A |
| BPG12-38T | 12 | 38/10HR | 197 | 166 | 174 | 174 | 12.3 | M6 | A |
| BPG12-42T | 12 | 42/10HR | 198 | 166 | 174 | 174 | 12.9 | M6 | A |
| BPG12-55T | 12 | 55/10HR | 229 | 138 | 208 | 212 | 17.4 | M6 | A |
| BPG12-65 | 12 | 65/10HR | 350 | 167 | 178 | 178 | 21 | M6 | B |
| BPG12-70BT | 12 | 70/10HR | 260 | 169 | 211 | 215 | 21.7 | M6 | A |
| BPG12-80T | 12 | 80/20HR | 260 | 169 | 211 | 215 | 23.5 | M6 | A |
| BPG12-90AT | 12 | 90/10HR | 307 | 169 | 211 | 215 | 26.7 | M6 | A |
| BPG12-100AT | 12 | 100/10HR | 331 | 174 | 214 | 219 | 29.5 | M8 | B |
| BPG12-110AT | 12 | 110/20HR | 331 | 174 | 214 | 219 | 32.3 | M8 | B |
| BPG12-120BT | 12 | 120/10HR | 407 | 174 | 210 | 233 | 34.5 | M8 | A |
| BPG12-150T | 12 | 150/20HR | 484 | 171 | 241 | 241 | 43.5 | M8 | A |
| BPG12-180T | 12 | 180/10HR | 532 | 206 | 216 | 221 | 52.5 | M8 | C |
| BPG12-180LT | 12 | 180/10HR | 522 | 240 | 219 | 244 | 55.5 | M8 | C |
| BPG12-200T | 12 | 200/10HR | 522 | 240 | 219 | 224 | 59 | M8 | C |
| BPG12-250T | 12 | 250/10HR | 520 | 268 | 220 | 225 | 70.5 | M8 | C |
| BPG6-180AT | 6 | 180/10HR | 260 | 180 | 247 | 251 | 28 | M8 | E |
| BPG6-180BT | 6 | 180/10HR | 306 | 168 | 220 | 226 | 27 | M8 | E |
| BPG6-200AT | 6 | 200/10HR | 260 | 180 | 247 | 251 | 30 | M8 | E |
| BPG6-200BT | 6 | 200/10HR | 323 | 178 | 224 | 229 | 29.5 | M8 | E |
