24V lipo battery pack 12v 100ah lipo battery

24V lipo battery pack 12v 100ah lipo battery

Feature:

The BPC series offers 10 years full maintenance free design life. With a compact design and good reliability, this series is highly suited for security and alarm systems, UPS systems, emergency light systems, telecommucation system, base station and other backup appliances.

New technology for VRLA battery:
1.Normal we uses intercell connector welding,using more metal material.
BPC each cell uses piercing welding,which shortens lead and decreases material,battery has lighter weight.

2.High percentage Tin 1.5% (Pb-Ca) alloy to resist corrison and improve electrical conductivity.

3.Full-automatic assembly line welding to make sure battery uniformity with trustworthy

quality,improve production efficiency and deduct labor cost.

4.Each day production capacity is 1800 pieces 12v100ah of three containers.
Mass production line enables fastest production time 15 days.

5.Automatic hot-sealing technology instead of traditional epoxy sealing.
It can reduce weight of epoxy and shows good appearance of battery.

6.Lighter battery is easy for delivery and removing.For container load of 12v100ah,it can load extra 10% BPC battery to save 10% freight.

parameter



Battery   TYPE	Voltage   (V)	Capacity(AH)	External Dimension				Weight
			Length	Width	Height	Total H
			mm	mm	mm	mm	Kg	Ibs
BPC12-24	12	24	165.0	126.0	175.0	182.0	7.6	16.8
BPC12-33	12	33	195.0	130.0	155.0	180.0	9.2	20.3
BPC12-38	12	38	196.0	165.0	175.0	182.0	12.0	26.5
BPC12-55	12	55	230.0	138.0	207.0	225.0	15.5	34.2

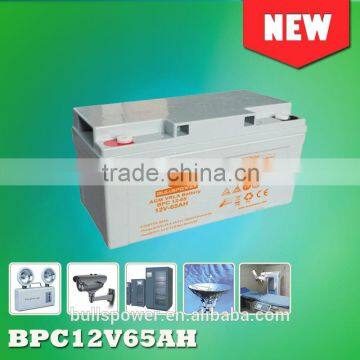

BPC12-65	12	65	348.0	168.0	178.0	178.0	18.5	40.8
BPC12-70	12	70	260.0	165.0	216.0	220.0	21.0	46.3
BPC12-90	12	90	306.0	168.0	210.0	230.0	27.7	61.1
BPC12-100A	12	100	329.0	171.0	214.0	220.0	28.2	62.2
BPC12-100B	12	100	406.0	174.0	208.0	233.0	28.0	61.7
BPC12-120	12	120	406.0	174.0	208.0	233.0	31.0	68.3
BPC12-150	12	150	483.0	170.0	240.0	240.0	41.2	90.8
BPC12-200	12	200	522.0	240.0	219.0	244.0	55.0	121.3
BPC12-230	12	230	520.0	269.0	220.0	249.0	64.0	141.1
