air conditioner daikin brands electric contactors conditioner contactor siemens relay contactor magnetic contactor
- 300000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A
Product Details
| Place of Origin: | Anhui, China | Brand Name: | HVACSTAR or OEM | Model Number: | SA-1P-30A-24V |
| Electricity Type: | Other, AC, AC | Number of Pole: | 1 | Phase: | 1 |
| Main Circuit Rating Voltage: | Other, 24V/120V/240V/380V, 600 VAC | Main Circuit Rating Current: | Other, 20A-40A |
Product Description
Air-condition Heater Ventilation N Refrigerator parts

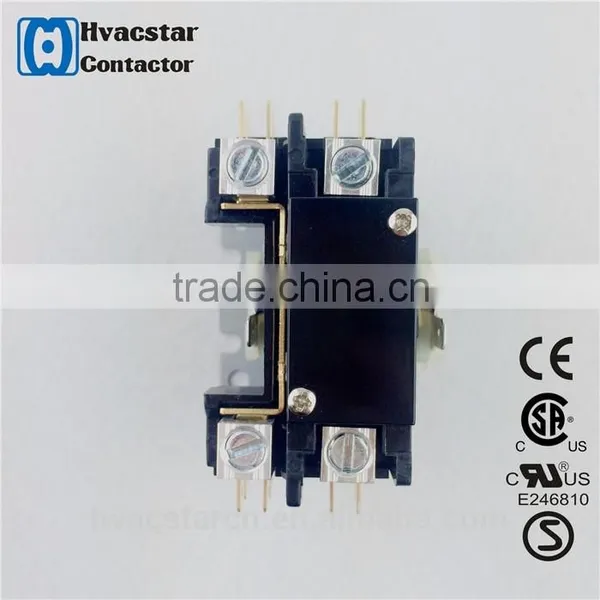

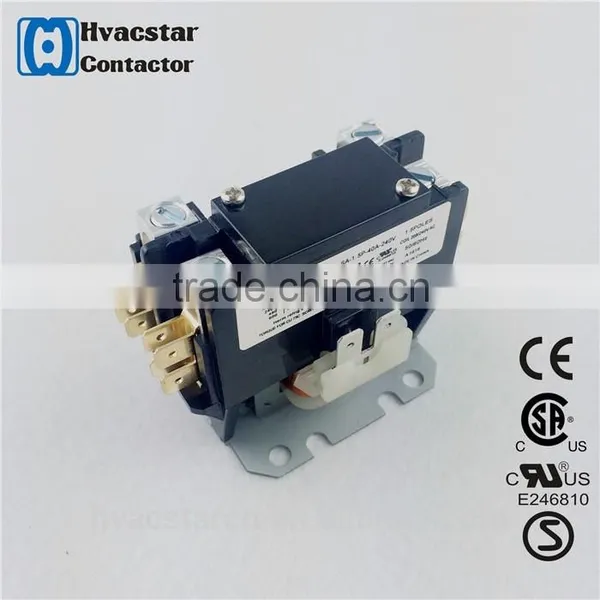

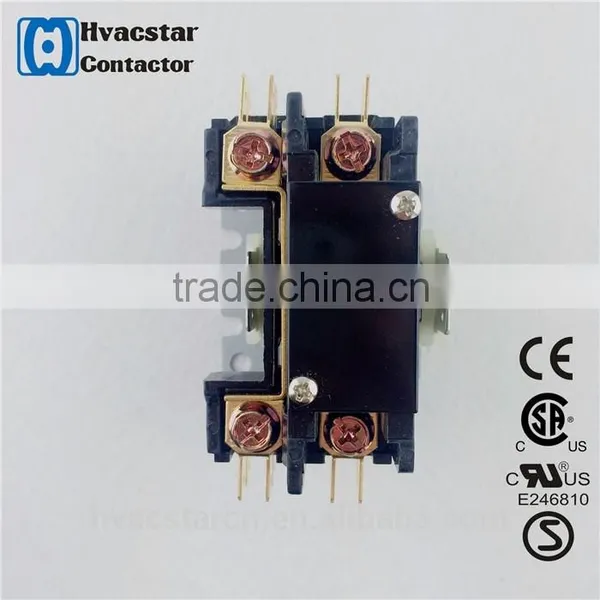

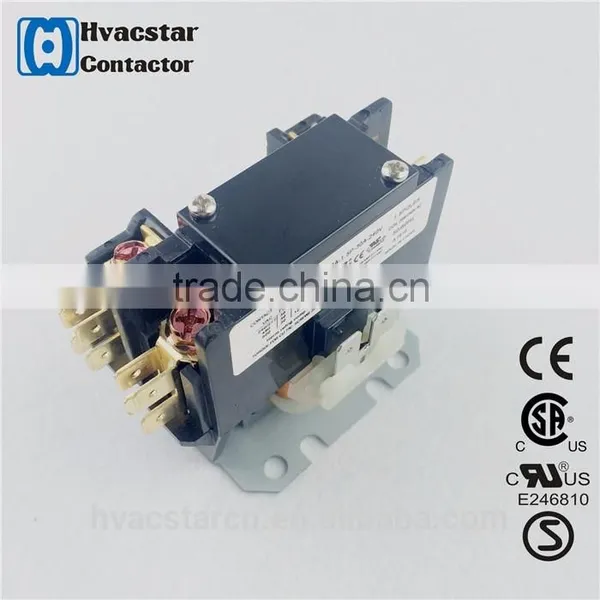

Definite purpose contactor
Hot Products
Electrical Equipment & Supplies of 20FLA DP contactors with 1 pole , different coil voltages available for your choice.
For 1Pole 30Amps products
For 1Pole 40Amps products

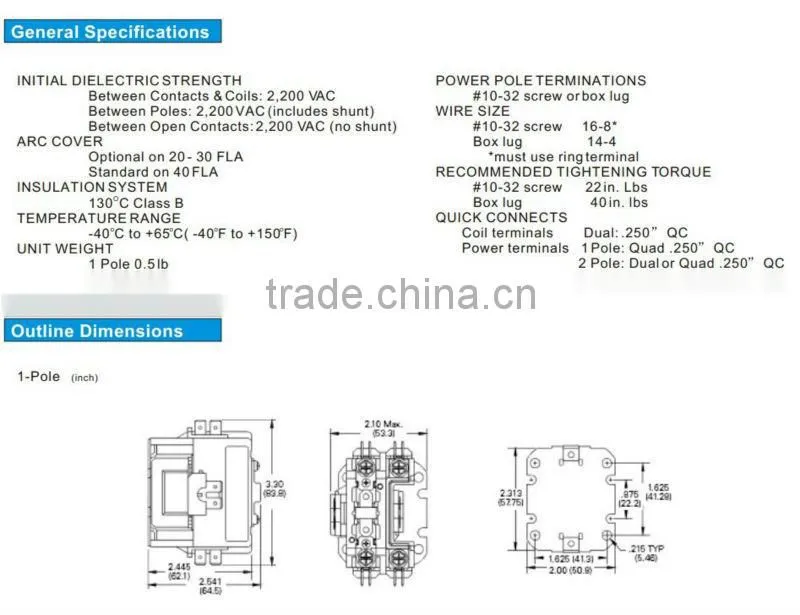

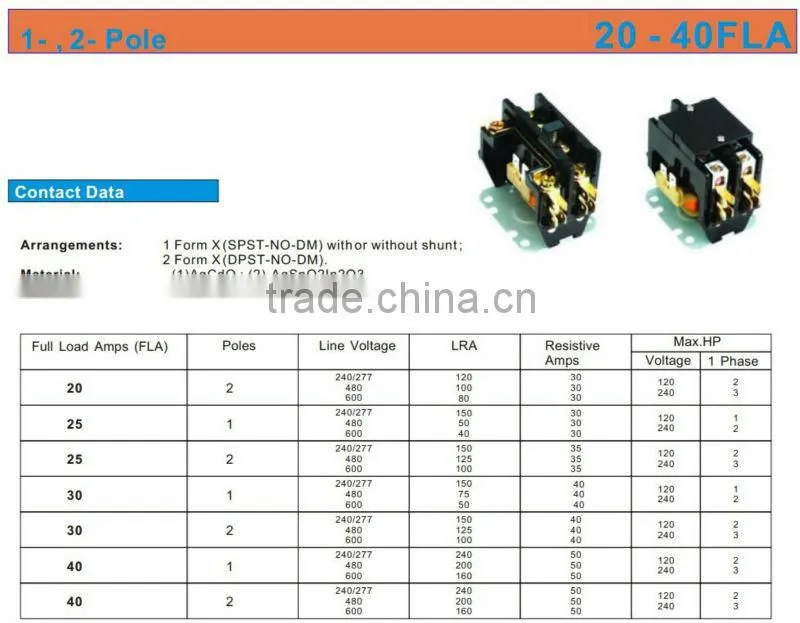

Following and specification
Electricity Type: AC
Number of Pole:1
Phase: 1
Main Circult Rating Voltage:600V
Main Circult Rating Current:30A40A
Certificate: UL/CSA/CE/S mark/CCC
Electrical life: 250000 times
Mechnical life: 1000000 times

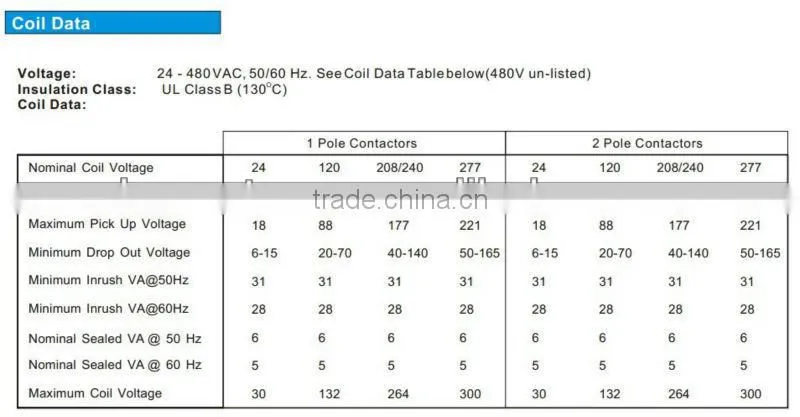

Coil voltage: 208V/240V
Unit weight: 1LB/0.45KG

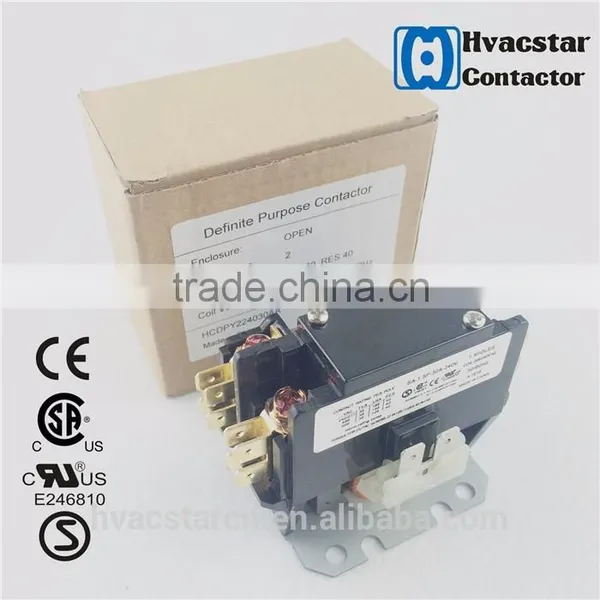

Packaging Details: 25PCS/BOX Canton size
Feature:
Hecheng SA series Definite Purpose Contactors are suitable for commercial applications including air conditioner, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standards of USA/Canada.
Range:
The SA Series Definite Purpose Contactors series product line is available in 1,1.5, 2, 3,4 poles contactors rated to from 24V to 600V AC.
Current load rated at 20FLA,25FLA,30FLA,40FLA,50FLA,60FLA,75FLA,90FLA,120FLA available.
Flexibility and Convenience
SA series Definit Purpose contactors series are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs.
These models are supplied as standard with combination quick connect terminals and screws that accept hex, slotted or Phillips screwdrivers. Also can supply the Auxiliary Switches together with the Definite Purpose Contactor.
Product details
All this picture you could find from our company contents
Other Products For Your Reference
For 3Pole 40Amps products
For 4Pole 30Amps products
Company Brief Introduce
HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and produces all kinds of high or low voltage electrical products and accessories in China. As an enterprise certified by ISO9001 system, we also get UL., IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.
As a 18 years professional manufacturer and exporter, hope we can have a chance to build a life-time cooperation and get profit together. You can get the best quality products, the most Competitive price here since the high quality of our contactor have satisfied the pickiest American market , 70% of our product have export to north America.
Why choose us
----Our company name is HeCheng electrical co.,ltd
----We are just manufacturer which have two factory in ZheJiang China and AnHui China,The factory verified by our north America client
----Our products are exported North America.Mid East.and Southeast Asia with rich experience,and safety for transportation so far
----We have the certificate of UL,CSA,CCC,CE
----Our business scope: ac/dc contactor for LC1(CJX2) type GMC type CJX9 type and Siemens Furnas type, relay , magnetic starter for QCX5 series.etc
Dear, choose me ,and you will have a powerful and faithful supplier!
