4 pole contactor chigo air conditioner alibaba online shopping alibaba co uk air conditioner contactor 3 pole contactor
- 300000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Anhui, China | Brand Name: | Hvacstar or OEM | Model Number: | SA-4P-20A-24VAC |
| Electricity Type: | Other, AC, AC | Number of Pole: | 3 | Phase: | 3 |
| Main Circuit Rating Voltage: | Other, 24V/120V/240V/380V | Main Circuit Rating Current: | Other, 20A-40A |
Product Description
electrical parts use in air condition or refrigerator protect equipment
SA-3P30A24V
Following and specification
Electricity Type: AC
Number of Pole:3
Phase: 3
Main Circult Rating Voltage:600V
Main Circult Rating Current:20A-40A
Certificate: UL/CSA/CE/S mark/CCC
Electrical life: 250000 times
Mechnical life: 1000000 times
Coil voltage: 208V/240V
Unit weight: 1LB/0.45KG
Packaging Details: 25PCS/BOX Canton size
Big Picture

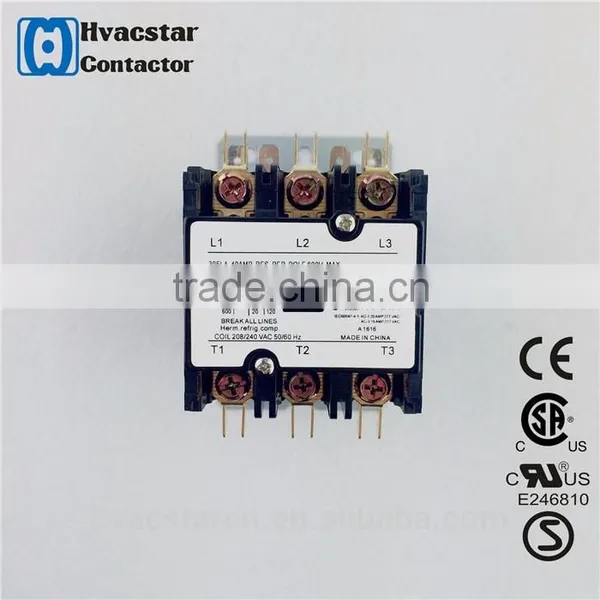

For 3Poles 20A30A product
For 4Poles 40A product
Products Details
All this picture you could find from our company contents
Products Application
Hecheng SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.
Range
The SA Series Definite Purpose Contactors series product line is available in 1,1.5, 2, 3,4 poles contactors rated to from 24V to 600V.Current load rated at 20FLA,25FLA,30FLA, 40FLA,50FLA,60FLA,75FLA,90FLA available.
Flexibility and Convenience
SA series Definit Purpose contactors series are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs.
These models are supplied as standard with combination quick connect terminals and screws that accept hex, slotted or Phillips screwdrivers. Also can supply the Auxiliary Switches together with the Definite Purpose Contactors.
Other Product
For 1Poles 40A
24V/120V/240V/380V and other range for choose
Click here to browse
For 2Poles 40A
24V/120V/240V/380V and other range for choose
Click here to browse
For 3Poles 40A
24V/120V/240V/380V and other range for choose
Click here to browse
Our Factory
Why choose us
1. we have two factory,one is making this ac contactor, just making it ,one is making relay, and just make relay. no doubt we are professional.
2. we have some large scale customer in north America, our quality and our factory are testify by them
3. we can use your own label and logo, even your UL certificate number, could design different patterns in the box cater to your customer
4. with the cooperation deeply, we always have much discount to regular customer.
Dear, choose me ,and you will have a powerful and faithful supplier!
