Specifications
AC Contactor Definite Purpose contactor magnetic contactor with CSA ,UL, S MARK approved.
AC Contactor Definite Purpose contactor magnetic contactor(SA-1P-40A-24VAC)
Electrical Equipment accessories of DP contactors with 1 pole 40 FLA, different coil voltages available for your choice.
------------------------------------------------------
Company Brief Introduce
Mingguang Hecheng Electrical Co.,Ltd.The manufacturer located in Anhui, China, produce different kinds of Contactors (including DP contactors, LC1 series contactors , SK series contactors , etc.
), Transformers, Relays, Starters, Fuses, Circuit Breaker, Switches, Cable Wires, etc. with super quality and reasonable price. Welcome inquiry !
---------------------------------------------------------
Product details
Products Feature:
Hecheng SA series Definite Purpose Contactors are suitable for commercial applications including air conditioner, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.

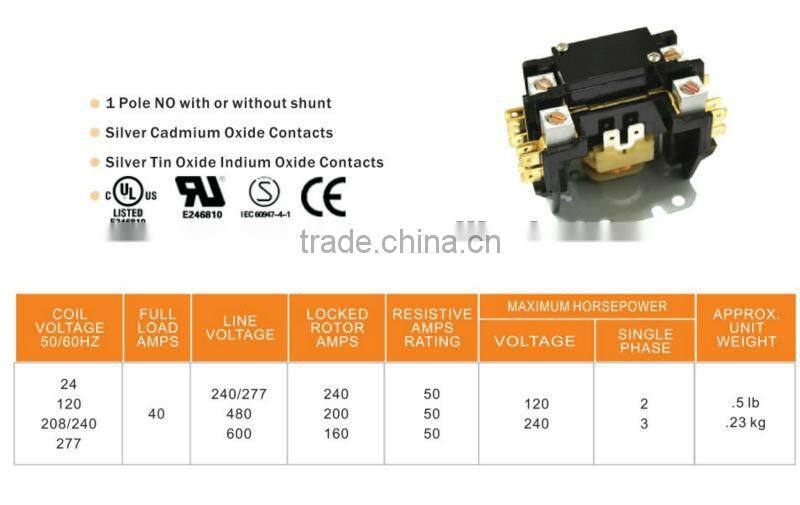

1) Name of product: 1 poles 40FLA definite purpose contactor
2) Model Number: SA-1P-40A-24VAC
3) Agency approvals: UL 508 AIR780

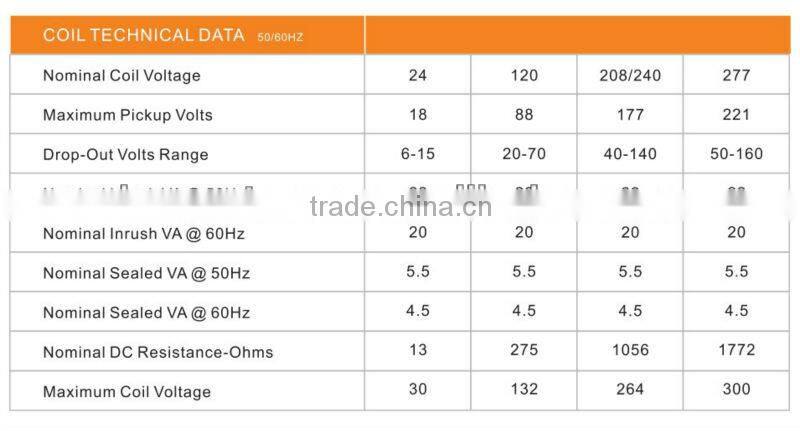

4) Coil: 24VAC/110VAC/208-240VAC/277VAC/480VAC for choose
6 Cetificate: ISO 9001:2000 UL CUL list,UL CUL recognized, CE certificate,SEMKO certificate,RoHS compliant.
---------------------------------------------------------
Range:
The SA Series Definite Purpose Contactors series product line is available in 1,1.5, 2, 3,4 poles contactors rated to from 24V to 600V AC.
Current load rated at 20FLA,25FLA,30FLA,40FLA,50FLA,60FLA,75FLA,90FLA,120FLA available.
---------------------------------------------------------
Flexibility and Convenience:

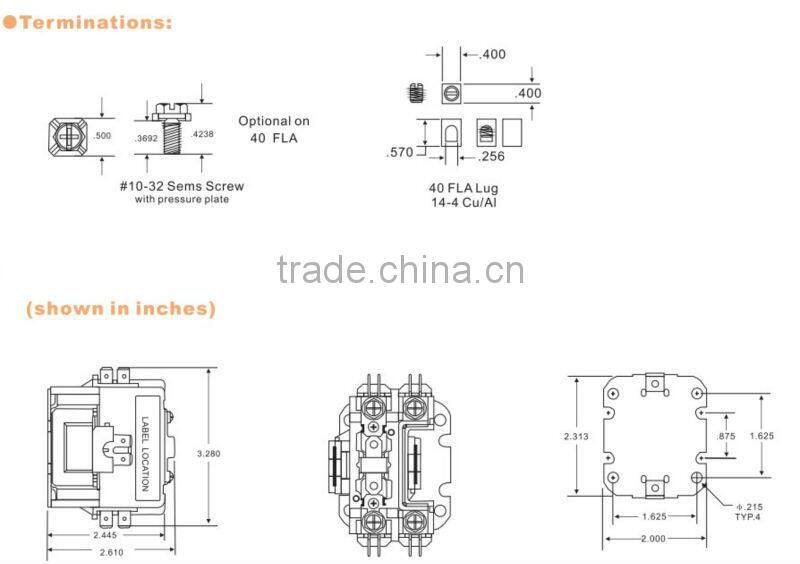

SA series Definit Purpose contactors series are compact in size and offer three convenient methods of wire connection: quick connect terminals, screws or box lugs.
These models are supplied as standard with combination quick connect terminals and screws that accept hex, slotted or Phillips screwdrivers. Also can supply the Auxiliary Switches together with the Definite Purpose Contactors.
Factory Picture Shows:
We are always waiting for you here, if you have any further questions about the products or our company, please let us know.
We are always at your service!!
Welcome to visit our factory anytime !!!
