LC1-D12 CJX2-12 Magnetic Contactors AC Contactor

LC1-D12 CJX2-12 Magnetic Contactors AC Contactor thumbnail-1

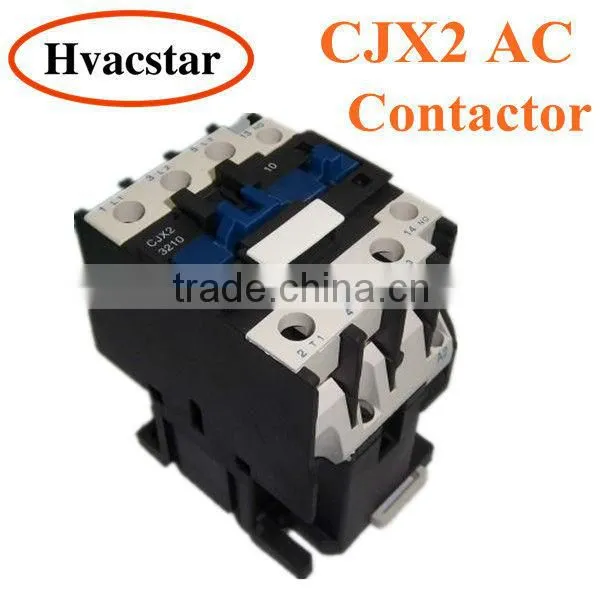

LC1-D12 CJX2-12 Magnetic Contactors AC Contactor photo-1
US$ 2.01 - 3.69 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Hvacstar or OEM
Model Number:
LC1-D12 CJX2-12 Magnetic contactors
Contact Supplier Request Quote Chat Now
Mingguang Hecheng Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Hvacstar or OEM
Model Number LC1-D12 CJX2-12 Magnetic contactors
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, Other, 9A

Specifications

1.12A new AC magnetic Contractor
2. Silver/copper wire/aluminum quality levels
3. 1 year warranty
4. 24v to 415v

Specificaiton

LC1(CJX2) series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.





Type   LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32
Rated working current (A) AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current (A)   20 20 32 40 50
Electrical life AC4 x 104 20 20-15 20-7 15-7 15-7
AC3 x 106 2 2 2 2 2
Mechanical   20 20 20 20 20
Number of the contact   3P+NO
3P+NC



Type   LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working
current (A)		 AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 11 15 18.5 22 25
380/400V 18.5 22 30 37 45
415V 22 25 37 45 45
440V 22 30 37 45 45
500V 22 30 37 55 55
660/690V 30 33 37 45 45
Rated heat current (A)   60 80 80 125 125
Electrical life AC4 x 104 10-7 7 7-6 7-5 7-5
AC3 x 106 2 2 1.6 1.6 1.6
Mechanical   20 20 20 10 10
Number of the contact   3P+NC+NO







Details of the Product

LC1-D12 CJX2-12 Magnetic contactors AC Contactor



LC1-D12 CJX2-12 Magnetic contactors AC Contactor











Feature



LC1-D12 CJX2-12 Magnetic contactors AC Contactor



LC1-D12 CJX2-12 Magnetic contactors AC Contactor





LC1-D12 CJX2-12 Magnetic contactors AC Contactor







Standard Control Circuit Voltage

LC1-D12 CJX2-12 Magnetic contactors AC Contactor
