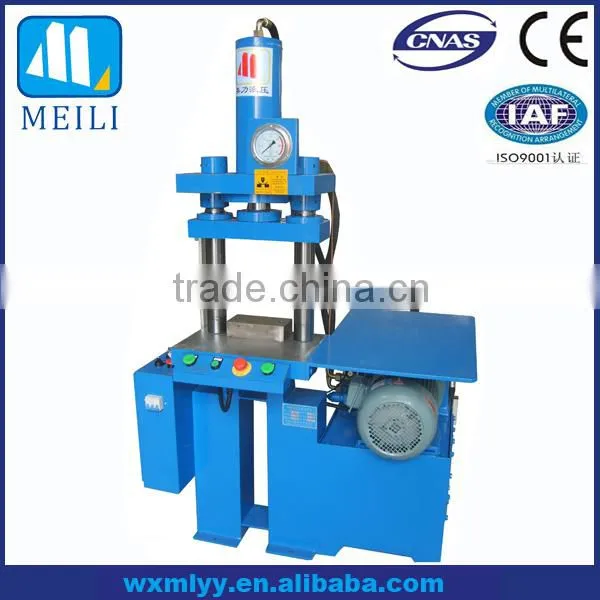

Y31 16T Double Column Small Hydraulic Press Price For Plastic Materials
- 10 Set / Sets per Month
- sahnghai
- T/T Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Jiangsu, China | Brand Name: | MEILI | Model Number: | Y31 |
Dimension(L*W*H): | customized | Certification: | CE,ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.well apperance H frame Hydraulic Pressplex function H frame Hydraulic Press
nvenient H frame Hydraulic Press
Quick Details
Place of Origin: Jiangsu, China (Mainland) Brand Name: Meili Model Number: Y71 Four Column Hydropress
Condition: New After-sales Service Provided: Engineers keyword: Four Column Hydropress
available to service machinery overseas color: customized all colors
________________________________________________________________________________________________________________
Packaging & Delivery
Packaging Details: Y71 Four Column Hydropress machine packed by wooden cases
Delivery Detail: 15-30 days
________________________________________________________________________________________________________________
Specifications
1.four-column Machine
2.Warranty:1 year
3.CE, ISO9001
4. High performance
5. Safe and stable
Payment Terms:30% advance payment,70% payment after receive the T/T single
Warranty: 1 year
1.Free installation, trial start and adjustment, training. But the machine quotation does not include the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airline tickets of our engineers when in the buyer’s country to do the service!
2. Warranty period is 1 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by for ce injury) within 24 hours.
Introduction
Y71 hydraulic press is suppressed BMC, DMC and other thermoset materials, molding hydraulic machine. Phenolics such as electrical industry, daily industry PTFE plastics.
Specification
Item | Oil Press Machine |
Model | Oil Press Machine -Y71 - 160T |
Type | 160T |
Nominal Force | 1600KN |
Backhaul Force | 800KN |
Ejector Force | 400KN |
Return Force | 200KN |
Max. Pressure of Liquid | 26Mpa |
Max. Opening Height | 900mm |
Slide Stroke | 600mm |
Ejector Stroke | 220mm |
Slide Down Speed | Down Quickly:>=120mm/s |
Return Slowly:15mm/s | |
Micro-pressure:5-1mm/s | |
Slide Return Speed | Slowly:15mm/s |
Quickly:100mm/s | |
Ejection Cylinder Speed | Slowly:10mm/s |
Quickly:>=70mm/s | |
Return:>=140mm/s | |
Table Size | L.R:900mm |
F.B:900mm | |
Table Height Above The Floor | 550mm |
Motor Power | 11KW |
Outline Dimensions | L.R:3080mm |
F.B:1350mm | |
Height Above Floor:3820mm | |
Height Above Underground:1300mm | |
Total Weight | 11T |
Warranty | 1 year |
Certificate | CE, ISO9001 |
MOQ | 1 Set Oil Press Machine |
Delivery Time | 15-30days For Oil Press Machine |
Feature
- The frame is welded steel or cast parts, taking vibration aging treatment after welding, tempering rigidity, high accuracy.
- Hydraulic control cartridge valve integrated system, a small impact, reliability, long life.
- Integrated system using plug valves, electrical adopts PLC programmable control
Suppression action
Fast slide down - Deceleration downstream - Slow pressing (sometimes exhausting) - Dwell timer - Relief - Micro slide back - Limit fast back to the previous slide - The top of the tank top slow - The top of the tank top fast - Returned to the top of the cylinder - Hand reclaimer and feed

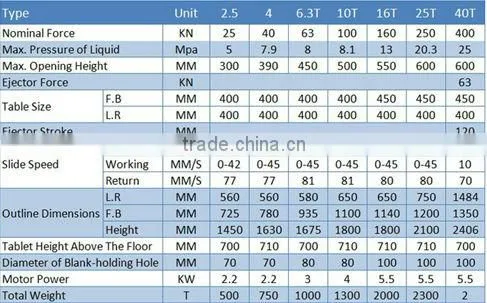

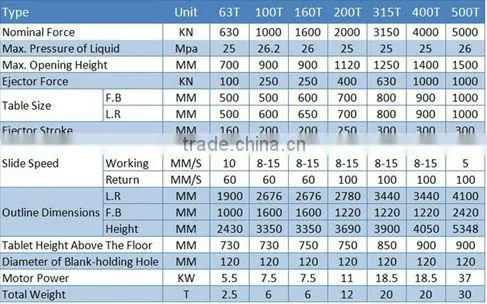

We offer other Oil Press Machine Specifications, such as follows:
1. With 7 years of production experience
2. Producing all columns of hydraulic press. single-column hydraulic presses, double-column hydraulic machines, four-column hydraulic machines, hydraulic pressure management systems, hydraulic straightening machines, hydraulic machines and other machines, totally 8 series and 150 varieties.
3. Can be customized production of various types of non-standard Heat Press Machine

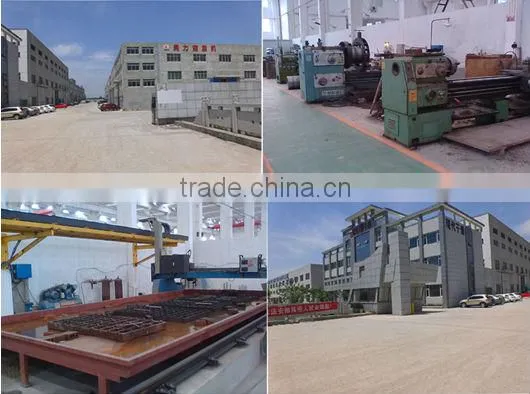

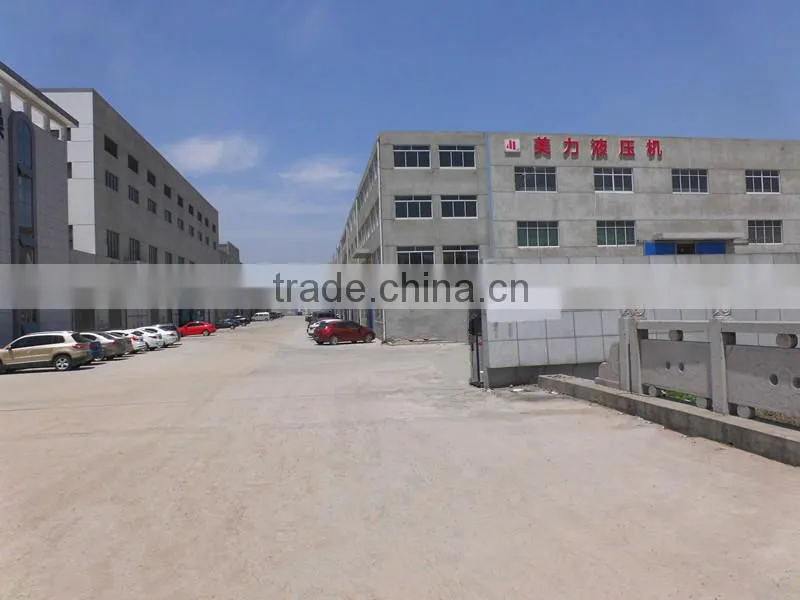

This is our factory for manufacture Oil Press Machine
This is our workshop for manufacture Hydraulic Press
