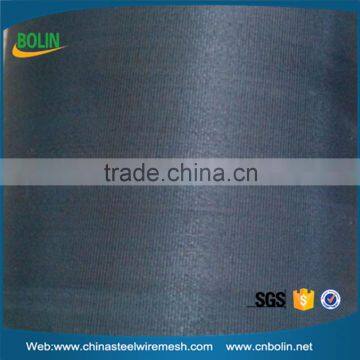

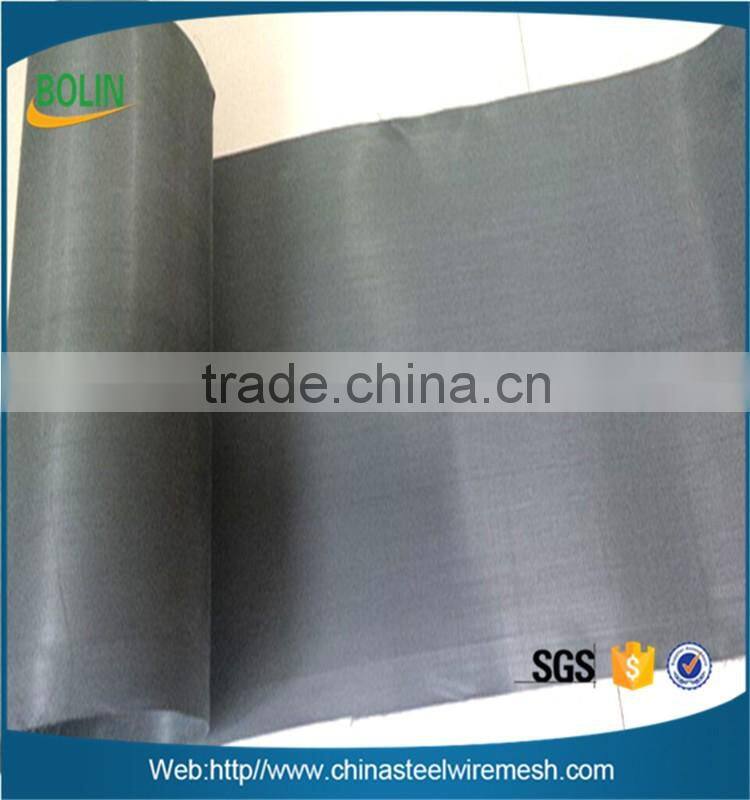

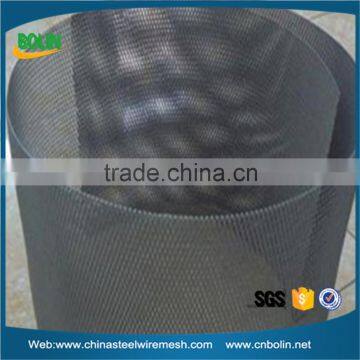

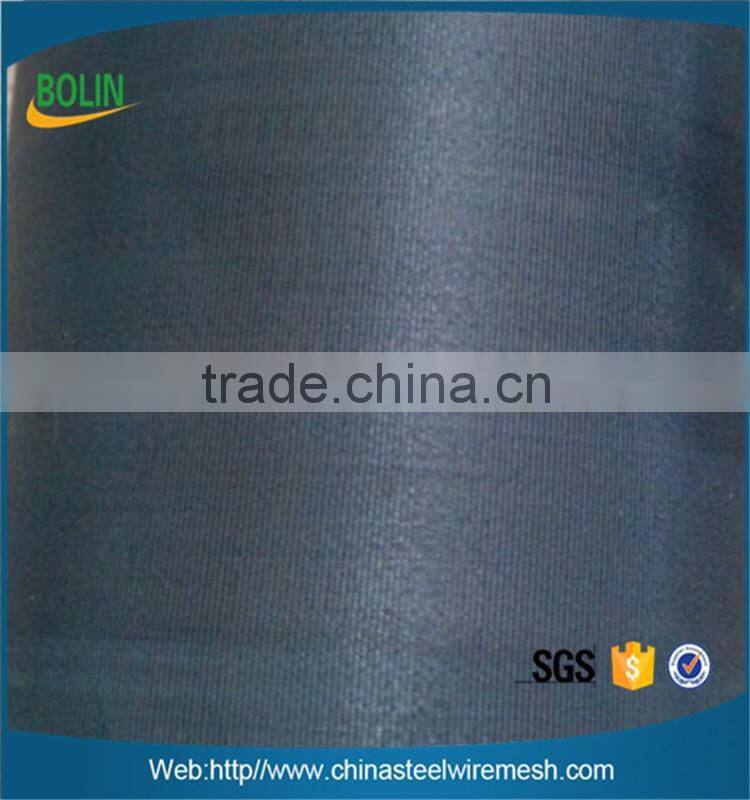

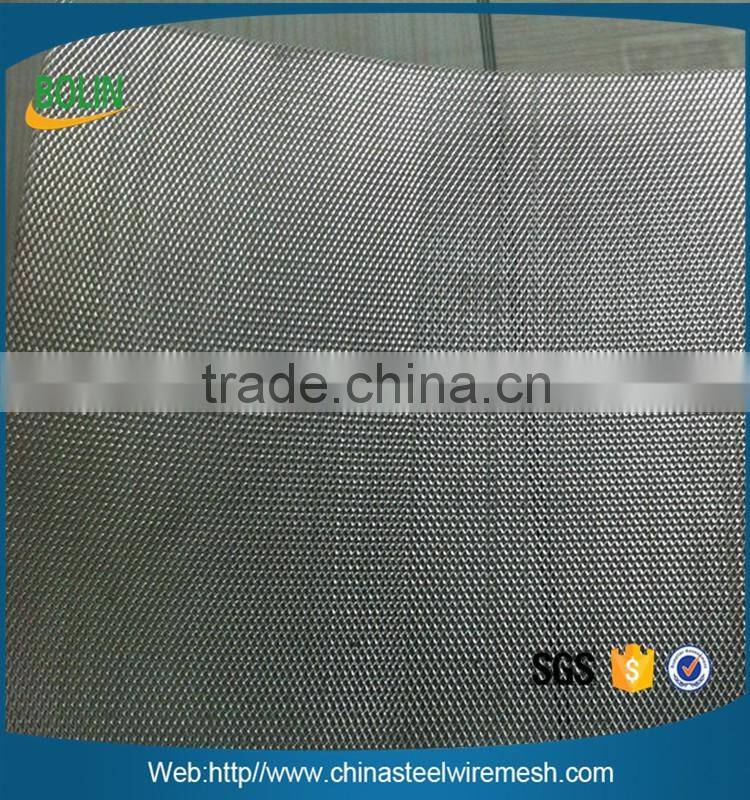

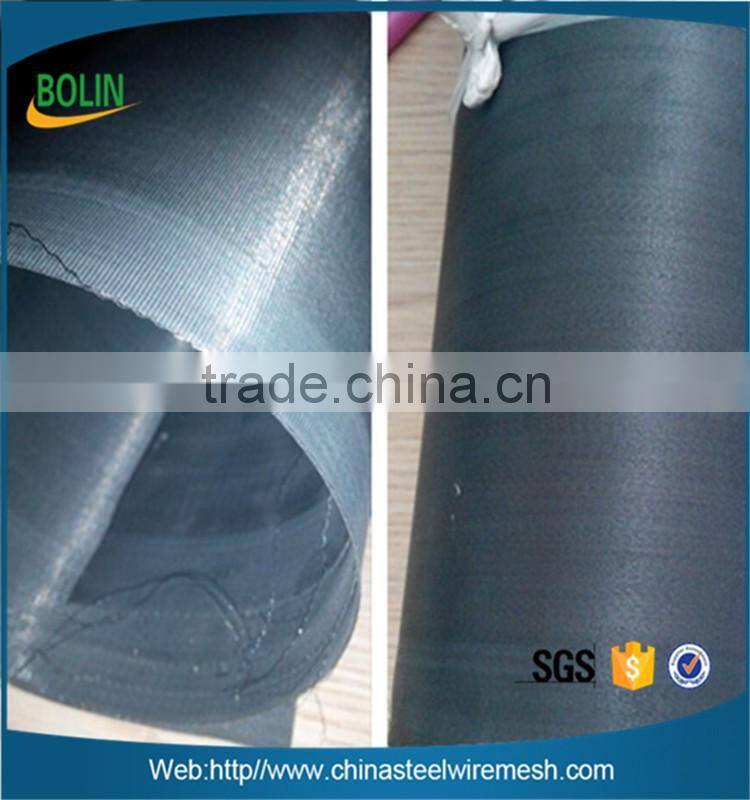

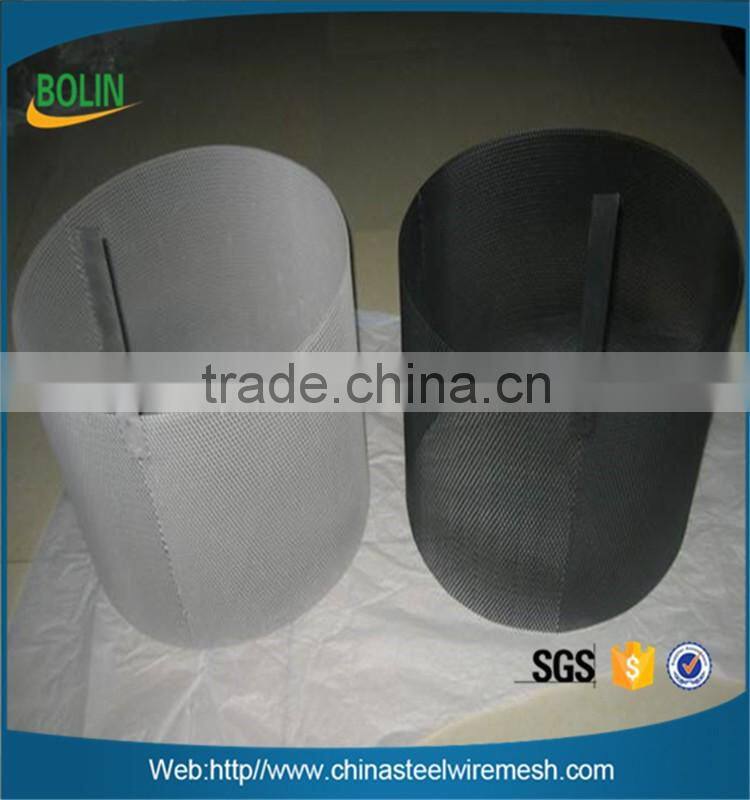

Ultra fine 100 mesh Ti / Titanium filter Wire Mesh
Titanium woven wire mesh is a kind of products with outstanding corrosion resistance, low density and nontoxic performance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded. The layer is compact and inert, which has strong resistance to the corrosion. It has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts.
Because of the outstanding corrosion resistance, the titanium woven wire mesh has become the replacement material of nickel-free stainless steel wire mesh, aluminum wire mesh.
The titanium wire mesh has expanded wire mesh and perforated wire mesh types, which can be used for different applications.
Specifications
- Material grade: TA1, TA2 GR1, GR2, R50250.
- Weaving type: plain weave, twill weave.
- Wire diameter: 0.05mm--2.375mm
- Mesh size: 2 mesh - 100 mesh.
- Color: black or bright
Features
- Low density and high tensile strength.
- Excellent Corrosion resistance.
- High temperature resistance.
- Outstanding filtration performance.
- Good thermal property.
- Acid and alkali resistance.
- Nontoxic.
Application
-
The titanium woven wire mesh can be used in various field in the below.
- Shipbuilding.
- Military industry
- Chemical industry.
- Mechanical industry.
- Petroleum.
- Pharmaceutics
- Medicine.
- Satellite and aerospace.
- Environmental industry.
- Electroplating industry.
- Battery industry.
- Surgery.
- The titanium wire mesh has lots of usage:
- Filtration. Chemical filter, mechanical filter, oil filter.
- Electromagnetic shielding.
- Desalination.
- Skull repair and reconstruction.
| Item | Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
|---|---|---|---|---|
| RTI-01 | 4 × 4 | 0.0320 | 0.2180 | 76.00 |
| RTI-02 | 4 × 4 | 0.0350 | 0.2150 | 74.00 |
| RTI-03 | 6 × 6 | 0.0320 | 0.1350 | 65.60 |
| RTI-04 | 7 × 7 | 0.0250 | 0.1180 | 68.20 |
| RTI-05 | 8 × 8 | 0.0320 | 0.0930 | 55.40 |
| RTI-06 | 9 × 9 | 0.0320 | 0.0790 | 50.60 |
| RTI-07 | 10 × 10 | 0.0350 | 0.0650 | 42.30 |
| RTI-08 | 10 × 10 | 0.0300 | 0.0700 | 49.00 |
| RTI-09 | 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| RTI-10 | 12 × 12 | 0.0110 | 0.0723 | 75.30 |
| RTI-11 | 14 × 14 | 0.0160 | 0.0550 | 60.20 |
| RTI-12 | 16 × 16 | 0.0060 | 0.0565 | 81.70 |
| RTI-13 | 18 × 18 | 0.0100 | 0.0460 | 67.40 |
| RTI-14 | 18 × 18 | 0.0110 | 0.0445 | 64.40 |
| RTI-15 | 18 × 18 | 0.0160 | 0.0400 | 50.8 |
| RTI-16 | 20 × 20 | 0.0030 | 0.0470 | 88.40 |
| RTI-17 | 20 × 20 | 0.0200 | 0.0300 | 36.00 |
| RTI-18 | 20 × 20 TW | 0.0160 | 0.0340 | 46.20 |
| RTI-19 | 24 × 24 | 0.0100 | 0.0320 | 57.90 |
| RTI-20 | 24 × 24 | 0.0118 | 0.0299 | 51.40 |
| RTI-21 | 26 × 26 | 0.0100 | 0.0290 | 54.90 |
| RTI-22 | 30 × 30 | 0.0100 | 0.0233 | 49.00 |
| RTI-23 | 32 × 32 | 0.0100 | 0.0210 | 46.50 |
| RTI-24 | 35 × 35 | 0.0080 | 0.0206 | 51.80 |
| RTI-25 | 40 × 40 | 0.0050 | 0.0200 | 64.00 |
| RTI-26 | 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| RTI-27 | 50 × 50 | 0.0090 | 0.0110 | 30.30 |
| RTI-28 | 50 × 50 TW | 0.0040 | 0.0160 | 64.00 |
| RTI-29 | 60 × 60 TW | 0.0090 | 0.0077 | 21.30 |
| RTI-30 | 90 × 90 | 0.0040 | 0.0071 | 41.00 |
| RTI-31 | 100 × 100 | 0.0020 | 0.0080 | 64.00 |
| RTI-32 | 120 × 120 TW | 0.0040 | 0.0043 | 27.00 |
| RTI-33 | 150 × 150 TW | 0.0027 | 0.0040 | 35.50 |

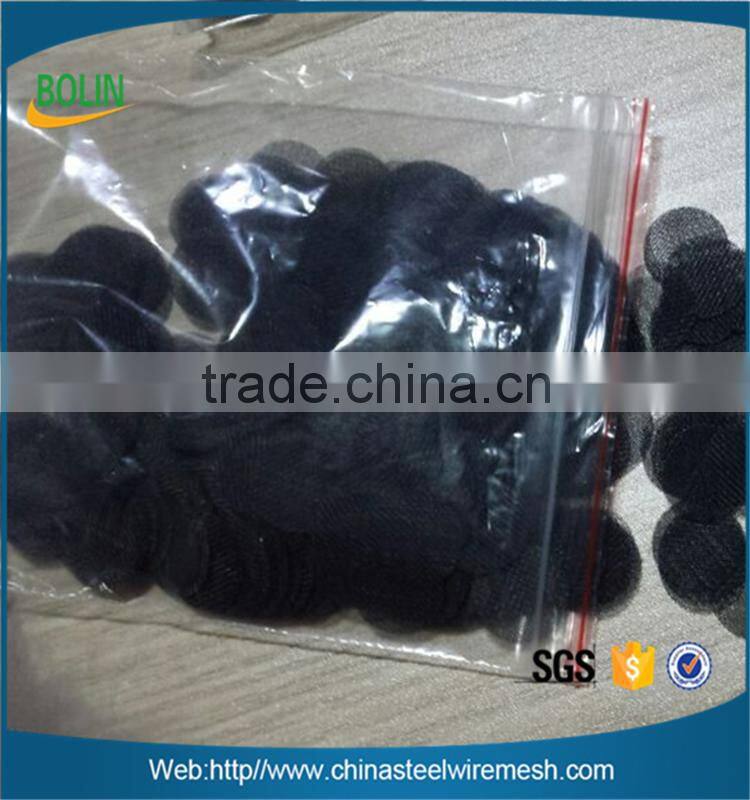

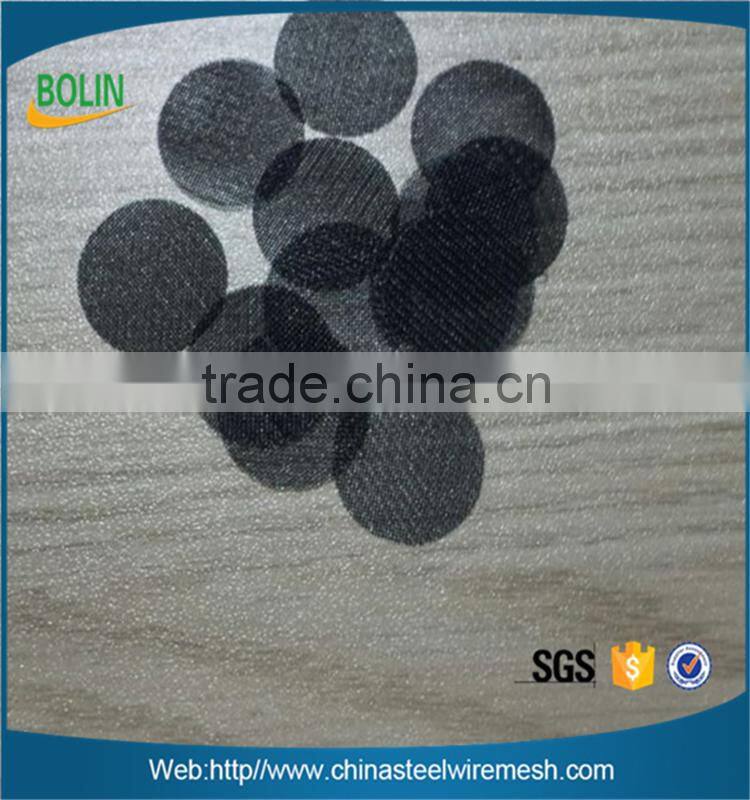

Titanium smoking pipe screen
OEM |
Yes |
Special Sizes or Shape |
Yes |
Customized packing |
Yes |
Sample |
Can be offered or Made |
Delivery time |
7-20 days after received the advance payment |
Payment terms |
T/T, Western Union, PayPal, Escrow, L/C,etc |
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS |
If you are interested in our products, please feel free to contact with us!Thank you!
