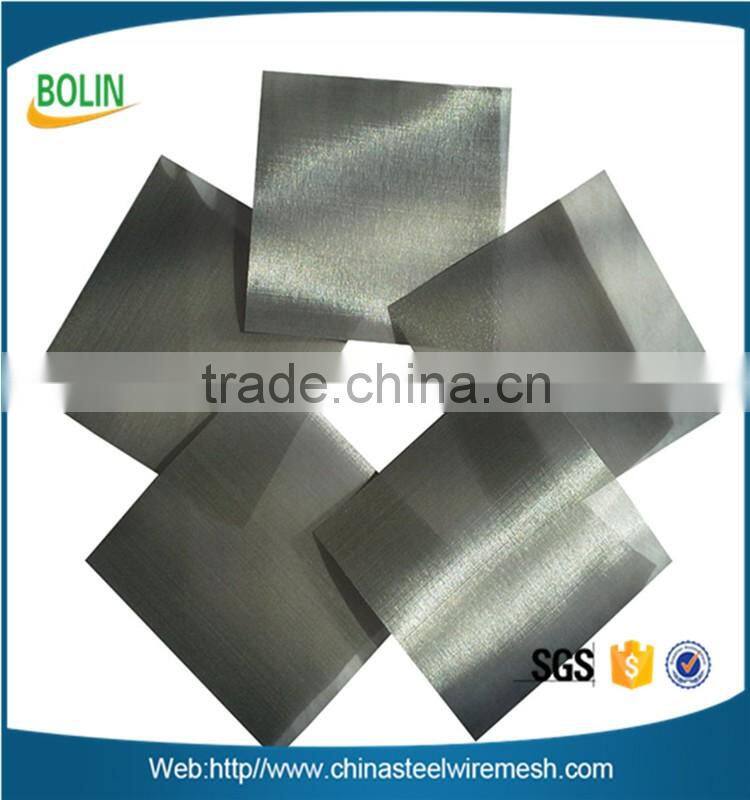

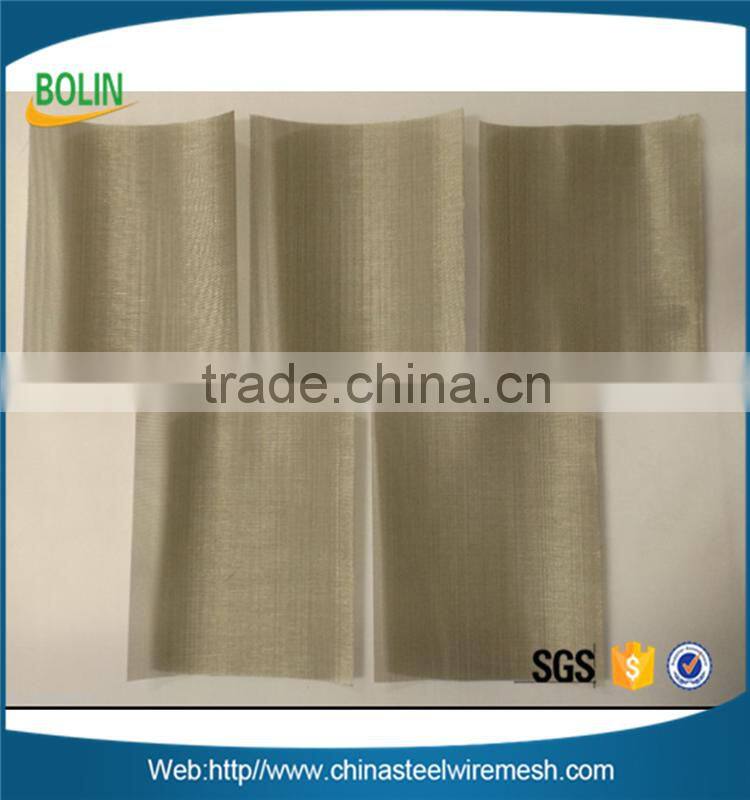

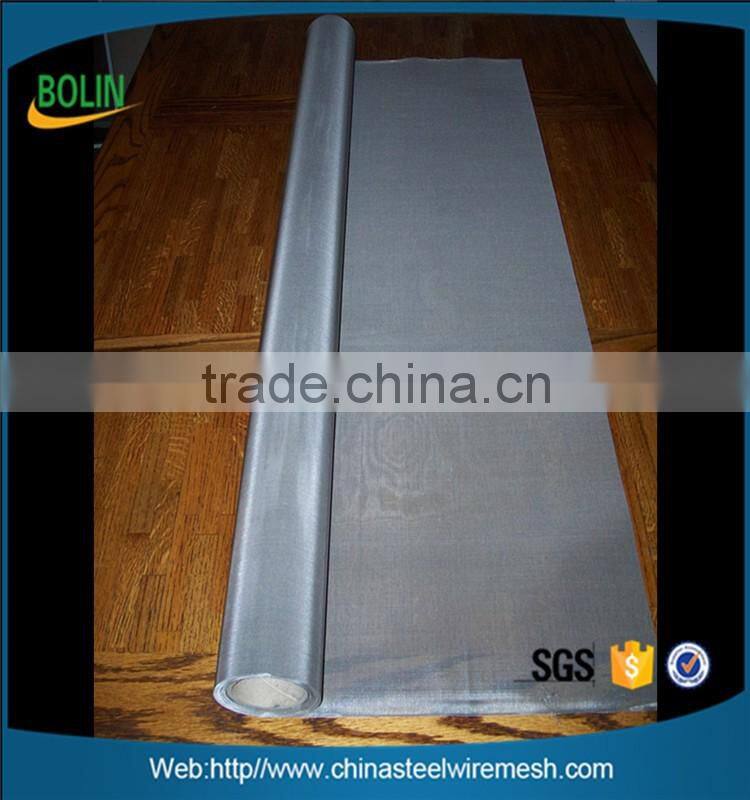

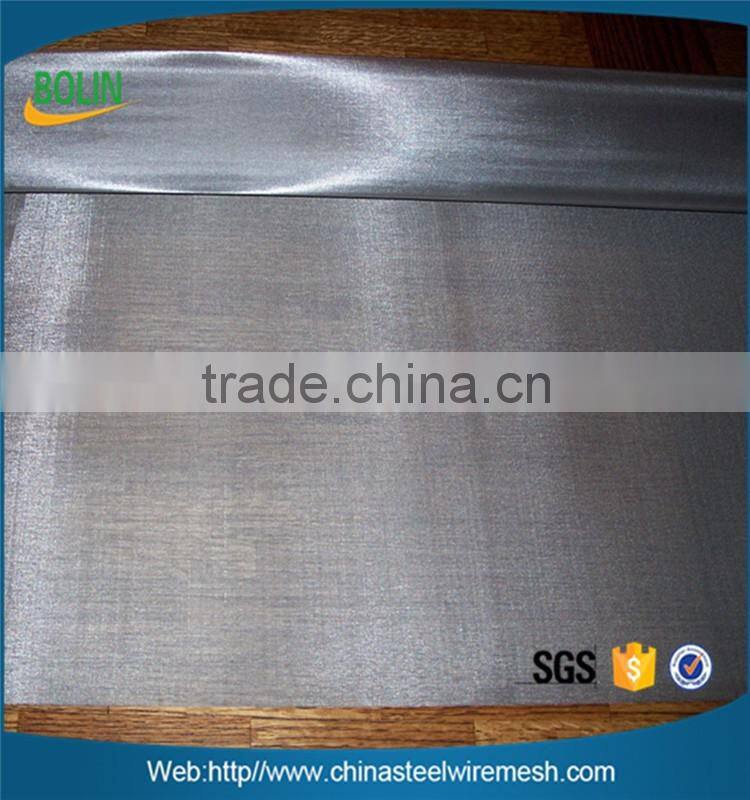

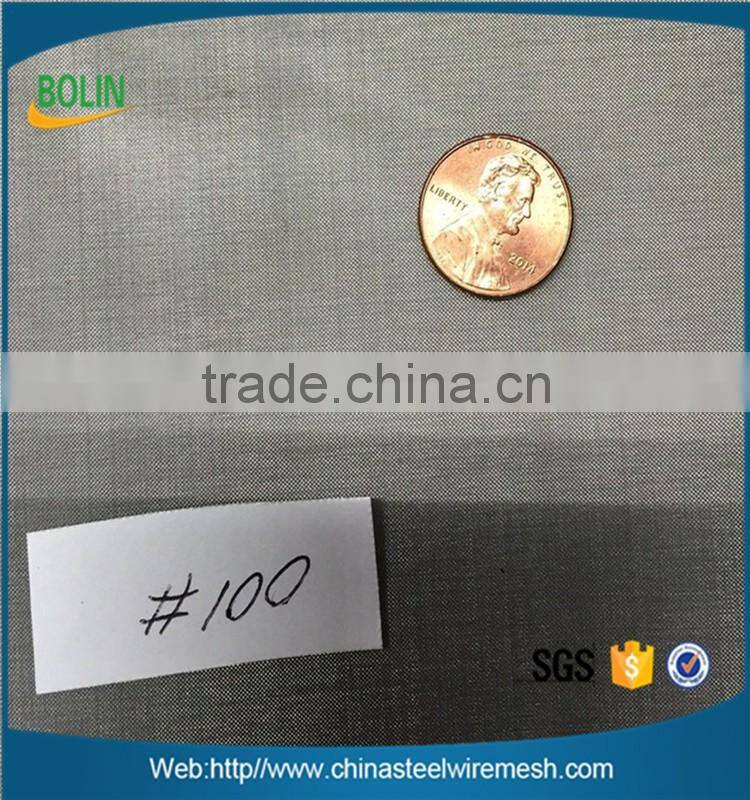

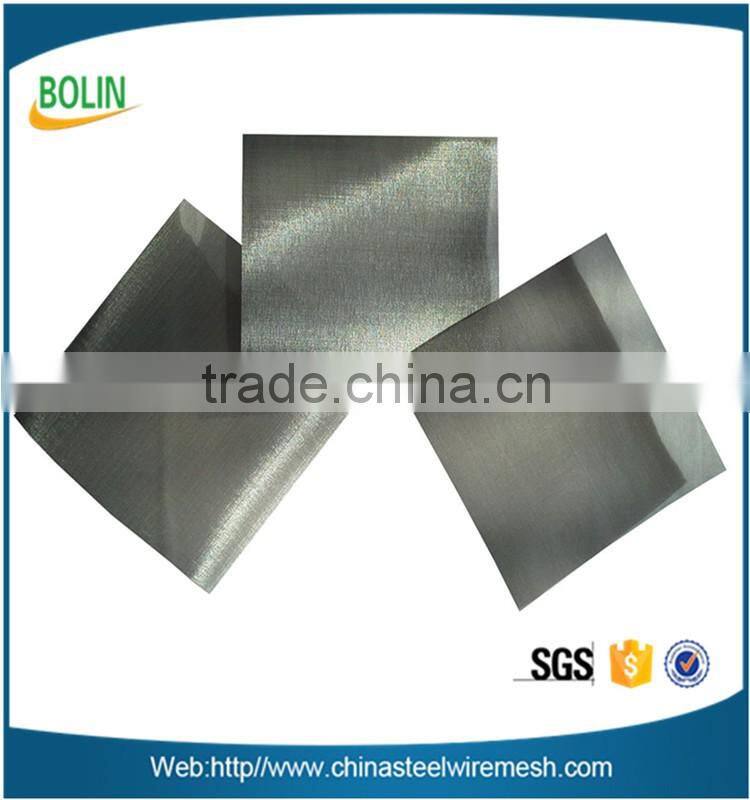

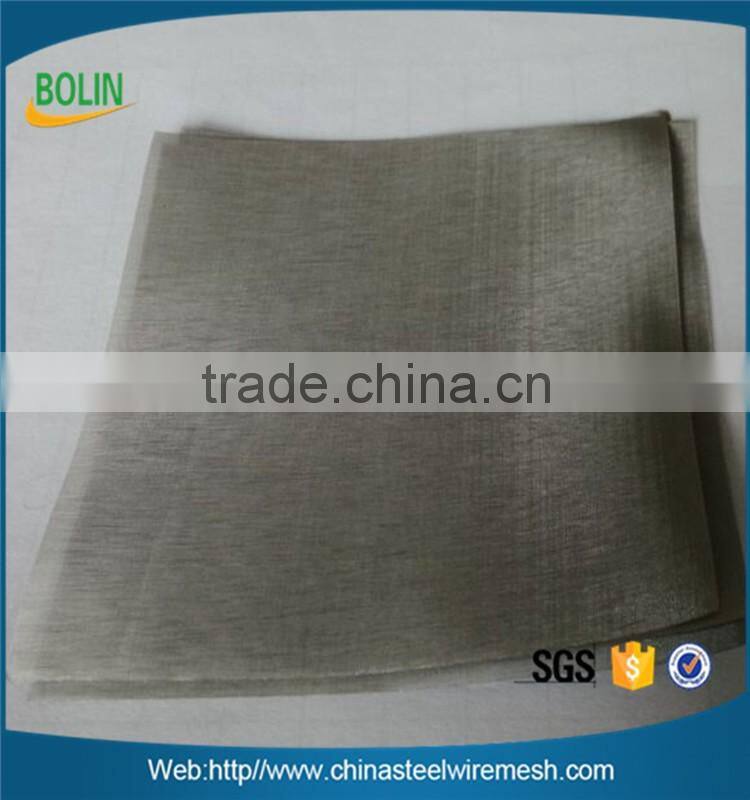

2 mesh 4 mesh 6 mesh 8 mesh T304 Stainless Steel Woven Wire Mesh Screen
1. Details
| material | stainelss steel 304 316 316L 430 310S 904 904L 2205 2507 |
| wire diameter | 0.025-2.03mm |
| weaving type | plain weave,twill weave,dutch weave,etc. |
| mesh counts |
Plain weave can be woven up to 400 mesh. Twill weave can be woven from 400 to 635mesh. Dutch weave can be woven up to 3200mesh |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| surface | smooth |
| hole shape | square |
| feature | magnetic,acid resistance,alkali resistance,temperature resistance |
| Delivery Detail | 7-15 days after receiving the 30% deposit or as required |
2.Size
stainless steel wire mesh | |||||
Mesh/Inch |
Wire diameter |
Aperture |
Mesh/Inch |
Wire diameter |
Aperture |
1 mesh |
5.00×5.00 |
20.40 |
18 mesh |
0.35×0.35 |
1.06 |
2 mesh |
1.80×1.80 |
10.90 |
20 mesh |
0.30×0.30 |
0.97 |
3 mesh |
1.60×1.60 |
6.87 |
30 mesh |
0.25×0.25 |
0.60 |
4 mesh |
1.20×1.20 |
5.15 |
40 mesh |
0.21×0.21 |
0.43 |
5 mesh |
1.00×1.00 |
4.08 |
50 mesh |
0.19×0.19 |
0.32 |
6 mesh |
0.80×0.80 |
3.43 |
60 mesh |
0.15×0.15 |
0.27 |
7 mesh |
0.70×0.70 |
2.93 |
70 mesh |
0.14×0.14 |
0.22 |
8 mesh |
0.65×0.65 |
2.53 |
80 mesh |
0.12×0.12 |
0.20 |
10 mesh |
0.60×0.60 |
1.94 |
100 mesh |
0.10×0.10 |
0.154 |
12 mesh |
0.50×0.50 |
1.62 |
120 mesh |
0.08×0.08 |
0.132 |
14 mesh |
0.45×0.45 |
1.36 |
150 mesh |
0.065×0.065 |
0.104 |
15 mesh |
0.40×0.40 |
1.29 |
200 mesh |
0.050×0.050 |
0.077 |
16 mesh |
0.40×0.40 |
1.19 |
250 mesh |
0.040×0.040 |
0.062 |
3. Weave Type
OEM |
Yes |
Special Sizes or Shape |
Yes |
Customized packing |
Yes |
Sample |
Can be offered or Made |
Delivery time |
7-20 days after received the advance payment |
Payment terms |
T/T, Western Union, PayPal, Escrow, L/C,etc |
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS |
