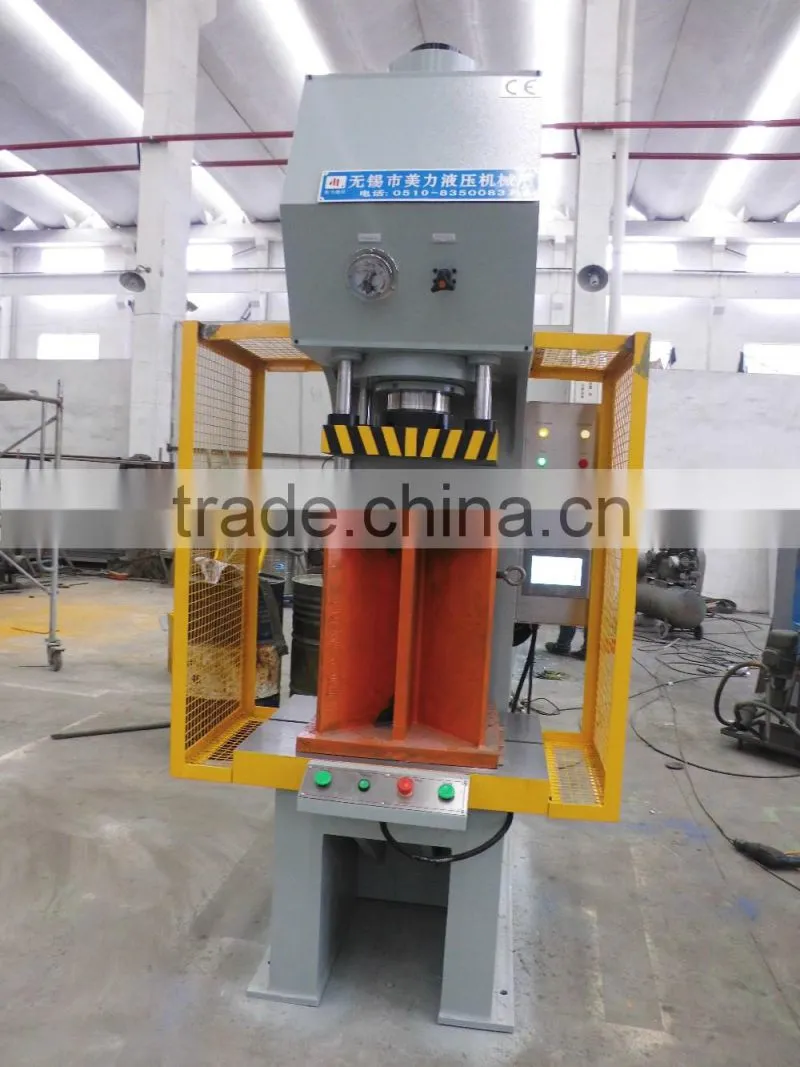

good quality and best selling single arm hydraulic press
- 30 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | Used | Year: | 2016 | CNC or Not: | CNC |
Power Source: | Hydraulic | Place of Origin: | Jiangsu, China | Brand Name: | MEILI |
Model Number: | Y41B-160ton | Voltage: | 220V/380V(According | Power(W): | 10kw |
Weight: | 8T | Dimension(L*W*H): | 1500*700*1800mm | Certification: | CE ISO |
Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

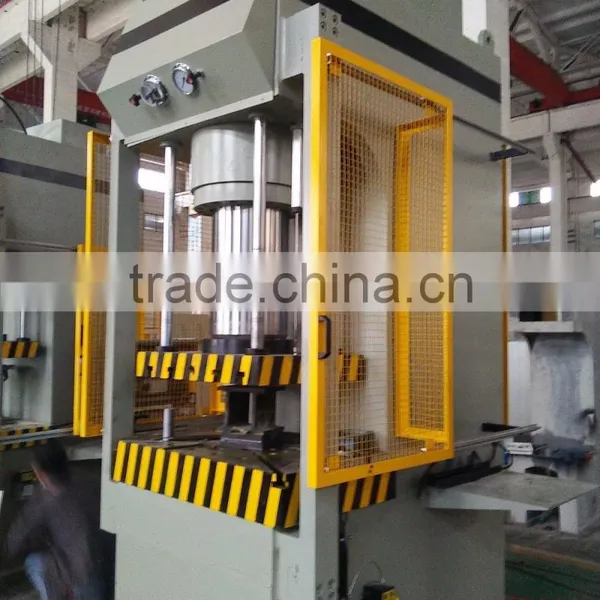

Y41BSeries four column hydraulic press is mainly applied to smaller auoto parts, bearings, electric appliance, plastic forming and train etc.
Controlled by PLC, double hands buttons and emergency button in automatic and manual.
Following are the specifications
Nominal Force | KN | 1000 | 1600 | 1600 | 2500 | |
Max. pressure of liquid | Mpa | 25 | 25 | 25 | 25 | |
Max. opening height | mm | 800 | 800 | 800 | 800 | |
Max. slide stroke | mm | 500 | 500 | 500 | 500 | |
Slider Speed | Downstream Speed | mm/s | 200 | 210 | 260 | 210 |
Working Speed | mm/s | 10 | 18 | 7-15 | 12 | |
Return Speed | mm/s | 180 | 250 | 240 | 200 | |
Throat Depth | mm | 320 | 330 | 330 | 330 | |
Cushion Force | KN | 400 | 630 | 630 | 1000 | |
Cushion Stroke | mm | 200 | 200 | 200 | 200 | |
Cushion Size | mm | 360x360 | 500x500 | 500x500 | 500x500 | |
The force of upper ejector | KN | / | 60 | 60 | 60 | |
The stroke of upper ejector | mm | / | 210 | 200 | 210 | |
Upper Ejector Diameter | mm | / | 140 | 140 | 140 | |
Upper-table Size | F.B. | mm | 500 | 600 | 600 | 600 |
L.R. | mm | 550 | 800 | 800 | 800 | |
Lower-table Size | F.B. | mm | 600 | 650 | 650 | 650 |
L.R. | mm | 800 | 900 | 900 | 1100 | |
Cushion speed | Eject up | mm | / | / | 80 | / |
Return | mm | / | / | 140 | / | |
The height between worktable and the floor | mm | 950 | 980 | 980 | 1100 | |
Overall Dimensions (Approx) | L.R. | mm | 1530 | 1630 | 1300 | 1700 |
F.B. | mm | 1530 | 1700 | 1600 | 2000 | |
Height above floor | mm | 3300 | 3560 | 3600 | 3800 | |
Motor Power | KW | 7.5 | 11 | 18.5 | 15 | |
Voltage |
| 380V, 50Hz, 3 Phase | ||||
Operating Temperature | ℃ | 0-40 | 0-40 | 0-40 | 0-40 | |
Weight | Tons | 6 | 9 | 9 | 12 | |
Upper ejector | / | √ | √ | √ | ||
Movable protective net | √ | √ | √ | √ | ||
Side supports | √ | √ | √ | √ |
