Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > CE Servo Control Horizontal Hydraulic Press Machine for Ethernet Computer

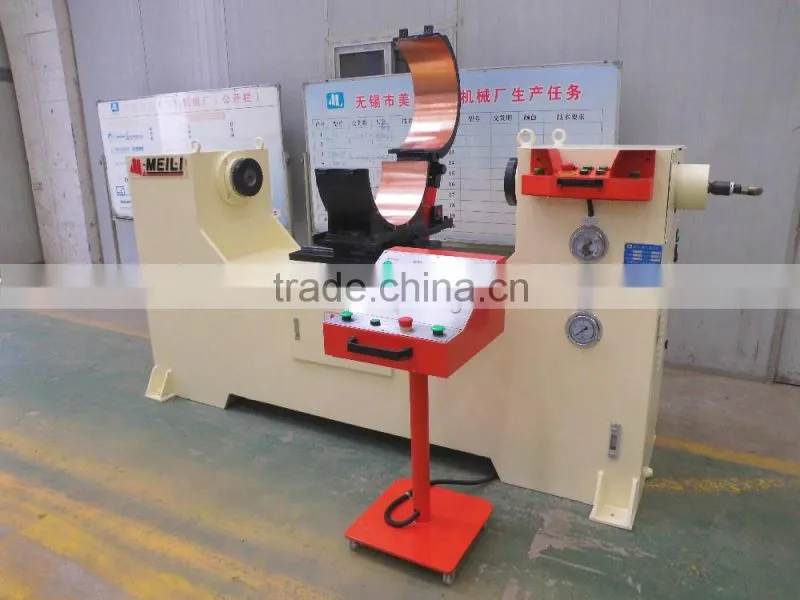

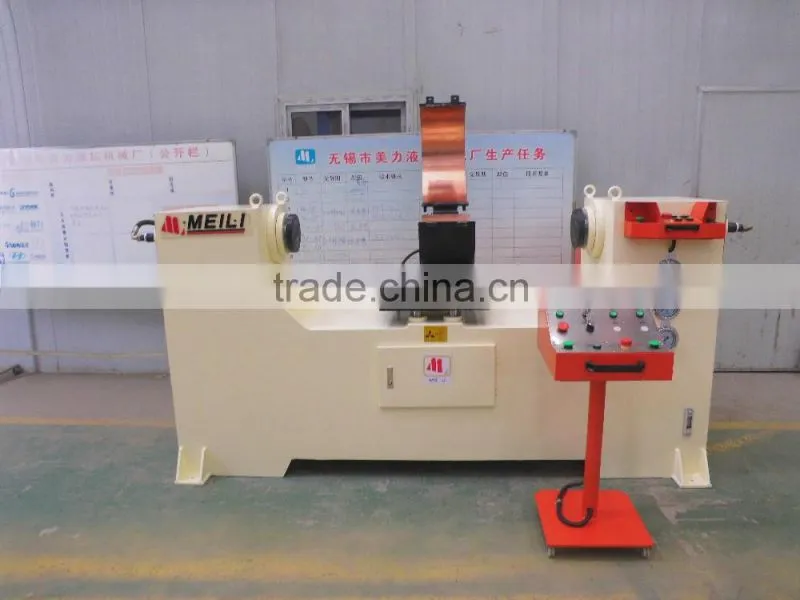

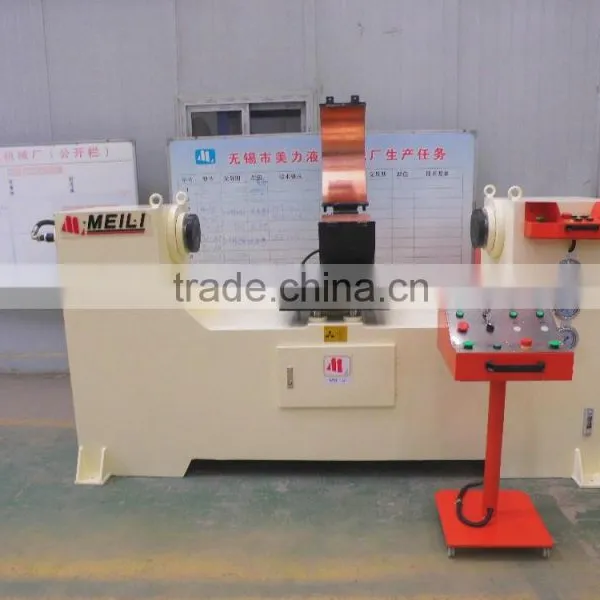

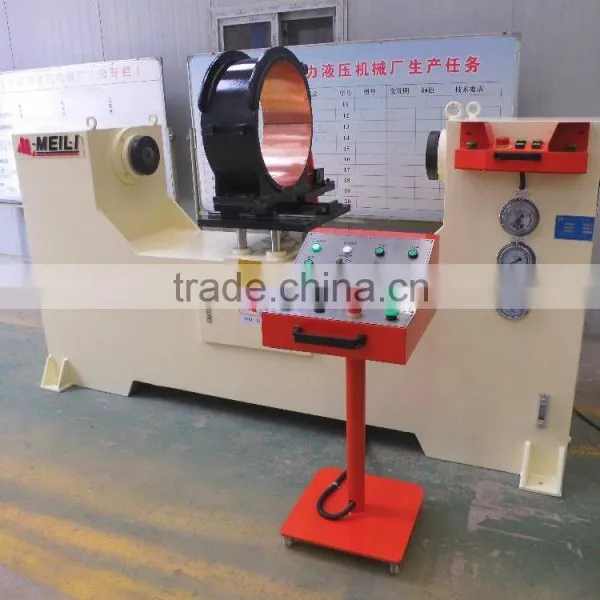

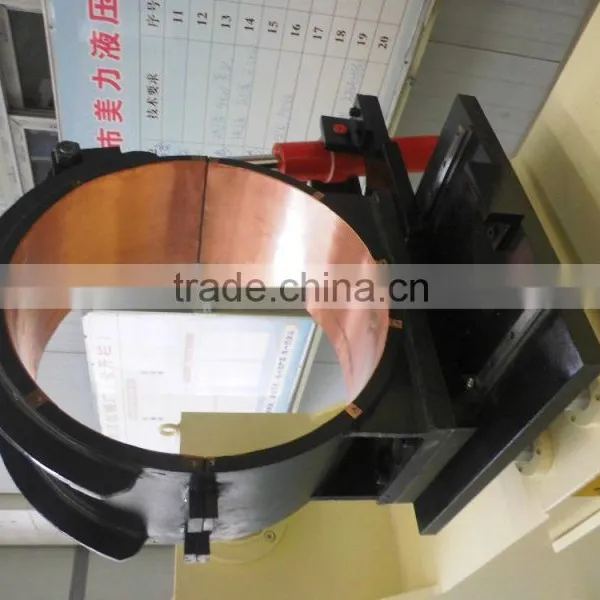

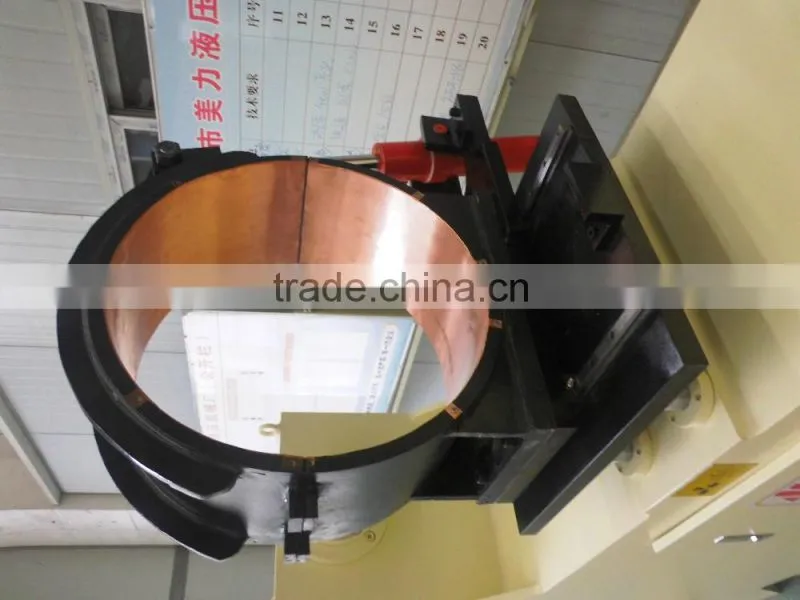

CE Servo Control Horizontal Hydraulic Press Machine for Ethernet Computer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HPP-160T Hydraulic Punching Press Machine With Good Quality and Low PriceNegotiableMOQ: 1 Set -
Fast Speed C Frame 250ton Hydraulic MachineNegotiableMOQ: 1 Set
-
Deep Throat C Frame Hydrolic Punching Hydraulic Press MachineNegotiableMOQ: 1 Set
-
160ton C Frame Hydraulic Metal Punch PressNegotiableMOQ: 1
-
Hydraulic Press Machine With High Quality and Low PriceUS$ 9999.00 - 9999.00MOQ: 1 Set
Condition
New
CNC or Not
CNC
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Model Number
YWL32 Four Column Hydraulic Press
Voltage
380V/220V Optional
Power(W)
22KW
Weight
12ton
Dimension(L*W*H)
2504*1790*3715mm
Certification
CE ISO
Warranty
2 Years
Horizontal hydraulic press is mainly applied to smaller auoto parts, bearings, electric appliance, plastic forming and train etc.
Controlled by PLC, double hands buttons and emergency button in automatic and manual.
Following are the specifications
| Model | Unit | 160T | ||
| Norminal force | KN | 1600 | ||
| Max. Liquid | Mpa | 19.9 | ||
| From ram to worktable | mm | 900 | ||
| Stroke | mm | 500 | ||
| Down speed | mm | 24 | ||
| Return speed | mm | 65 | ||
| Throat | mm | 325 | ||
| Worktable | FB | mm | 600 | |
| LR | mm | 1200 | ||
| Worktable above the floor | mm | 700 | ||
| Blanking aperture | mm | 100 | ||
| Motor power | Kw | 15 | ||
| Overall size | FB | mm | 1630 | |
| LF | mm | 2000 | ||
| Height | mm | 2500 | ||
| Gross weight | Kg | 16000 | ||
