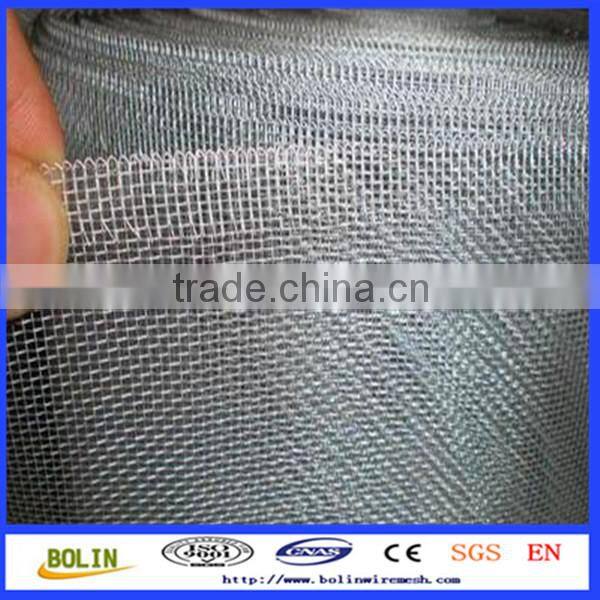

Stainless Steel Wire Material and Wire Cloth Type Food Grade 14 Mesh 410 ss 430 ss Plain Weave Magnetic Wire Mesh
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Website 430 904L Woven Wire Mesh Magnetic Stainless Steel Micro Filter Mesh
-
Ultra Fine 200 Mesh 904L Duplex Stainless Steel Wire Mesh for Sea Water Filtering
-
0.23mm (225 Micron or 31 AWG) Magnetic 430 Grade Stainless Steel Filter Wire Mesh
-
0.36mm (355 Micron or 27 AWG) Magnetic 430 Grade Stainless Steel Filter Mesh
-
China Suppliers High Quality Steel Wire Mesh
-
Stainless Steel 325 Mesh Wire Mesh Screen for Gas Filter (free Sample)
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Weave Wire Mesh | Application | Filters | |
| Weave Style | Other, plain weave, twill weave, dutch weave | Wire Diameter | 0.025mm--1.80mm | |
| Technique | Woven | Model Number | BL--gls-254 | |
| Brand Name | bolin |
Product Description
stainless steel wire material and wire cloth type food grade 14 mesh 410 ss 430 ss plain weave magnetic wire mesh
Product Description
| materials | sus201, 302, 304, 304L, 316, 316L, 310S, 410, 430, 904L etc |
| weave | plain weave, twill weave, dutch weave |
| mesh | plain weave 2--635, dutch weave: 12*64--500*3200 |
| character | acid-resisting, alkali-resisting and wear-resisting |
| application | used in mine, oil, chemical industry, food industry, pharmaceutical industry and machine-making etc |
weave
Stainless Steel Wire Mesh | ||||||
mesh/inch | wire diameter | aperture |
| mesh/inch | wire diameter | aperture |
2mesh | 1.80 | 10.90 |
| 60mesh | 0.15 | 0.273 |
3mesh | 1.60 | 6.866 |
| 70mesh | 0.14 | 0.223 |
4mesh | 1.20 | 5.15 |
| 80mesh | 0.12 | 0.198 |
5mesh | 0.91 | 4.17 |
| 90mesh | 0.11 | 0.172 |
6mesh | 0.80 | 3.433 |
| 100mesh | 0.10 | 0.154 |
8mesh | 0.60 | 2.575 |
| 120mesh | 0.08 | 0.132 |
10mesh | 0.55 | 1.990 |
| 140mesh | 0.07 | 0.111 |
12mesh | 0.50 | 1.616 |
| 150mesh | 0.065 | 0.104 |
14mesh | 0.45 | 1.362 |
| 160mesh | 0.065 | 0.094 |
16mesh | 0.40 | 1.188 |
| 180mesh | 0.053 | 0.088 |
18mesh | 0.35 | 1.060 |
| 200mesh | 0.053 | 0.074 |
20mesh | 0.30 | 0.970 |
| 250mesh | 0.04 | 0.061 |
26mesh | 0.28 | 0.696 |
| 300mesh | 0.035 | 0.049 |
30mesh | 0.25 | 0.596 |
| 325mesh | 0.03 | 0.048 |
40mesh | 0.21 | 0.425 |
| 350mesh | 0.03 | 0.042 |
50mesh | 0.19 | 0.318 |
| 400mesh | 0.025 | 0.0385 |
Width of Stainless Steel Wire Mesh: 0.6m-6.0m | ||||||
Stainless Steel Dutch Weave Wire Mesh | ||||||
Weave Type | Mesh Count | Warp Wire | Weft Wire | Absolute Rating | Nominal Rating | Weight |
PDW | 8x20 | 0.014 | 0.0126 | 330-350 | 280 | 49 |
PDW | 12x64 | 0.024 | 0.0165 | 270-290 | 200 | 84 |
PDW | 14x88 | 0.02 | 0.013 | 220-240 | 150 | 75 |
PDW | 16x80 | 0.0196 | 0.0134 | 225-235 | 140 | 79 |
PDW | 24x110 | 0.015 | 0.01 | 115-125 | 80 | 55 |
PDW | 24x128 | 2 x 0.010 | 0.004 | 110-120 | 75 | 34 |
PDW | 30x150 | 0.009 | 0.007 | 110-112 | 63 | 33 |
PDW | 30x150 | 2 x0.009 | .007" | 95-113 | 60 | 33 |
PDW | 40x200 | 0.007 | 0.0055 | 70-75 | 55 | 27 |
PDW | 50x250 | 0.0055 | 0.0045 | 58-63 | 40 | 22 |
PDW | 80x400 | 0.005 | 0.003 | 40-45 | 35 | 17 |
TDW | 30x250 | 0.01 | 0.008 | 110-120 | 53 | 66 |
TDW | 80x700 | 0.004 | 0.003 | 35-40 | 25 | 25 |
TDW | 120x400 | 0.004 | 0.0025 | 50-55 | 40 | 15 |
TDW | 165x800 | 0.0028 | 0.002 | 25-28 | 15 | 14 |
TDW | 200x600 | 0.0024 | 0.0018 | 30 | 20 | 10 |
TDW | 165x1400 | 0.0028 | 0.0016 | 16-20 | 10 | 14 |
TDW | 200x1400 | 0.0028 | 0.0016 | 12-14 | 5 | 15 |
TDW | 325x2300 | 0.0014 | 0.001 | 8-9 | 2 | 10 |
TDW | 400x2800 | 0.001 | 0.0008 | 6-7 | 1 | 8 |
OEM | Yes |
Special Sizes or Shape | Yes |
Customized packing | Yes |
Sample | Can be offered or Made |
Delivery time | Usually within 7-15 working days |
Payment terms | T/T, Western Union, PayPal., Escrow, L/C |
Optional Way of Transportation | Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EM
|
Anping County Bolin Metal Wire Mesh Co.,Ltd was established in 2004 and located in Anping, which
is home to wire mesh.With more than 10 years experience, we manufacture and export all kind of wire mesh,
including stainless steel wire mesh,nickel wire mesh,nickel alloy wire mesh,copper wire mesh,
titanium wire mesh and related deep processing products.
Professional & experienced factory(over 20 years)
Professional design team& excellent sales team for your service;
Quick delivery& superior quality
Alibaba golden supplier& SGS report

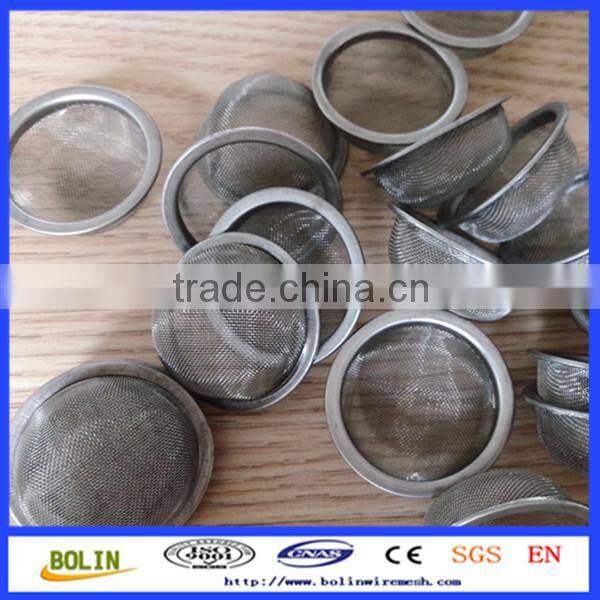

deep processing

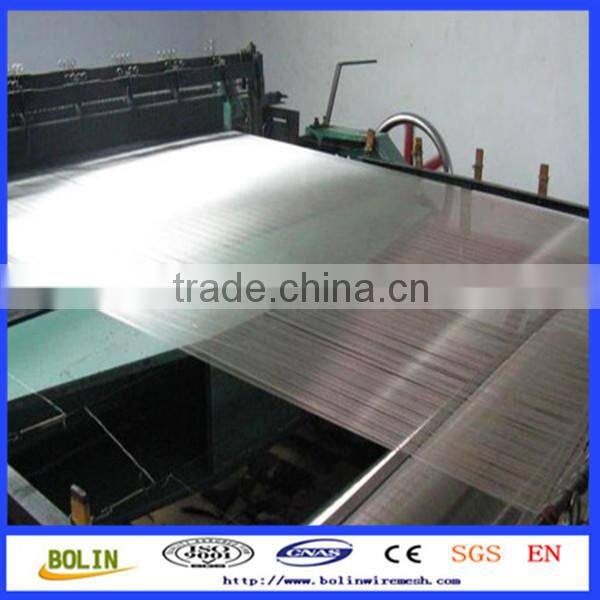

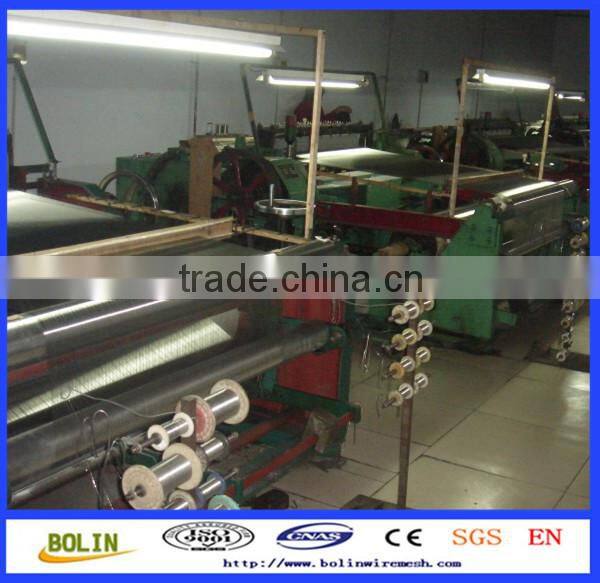

production

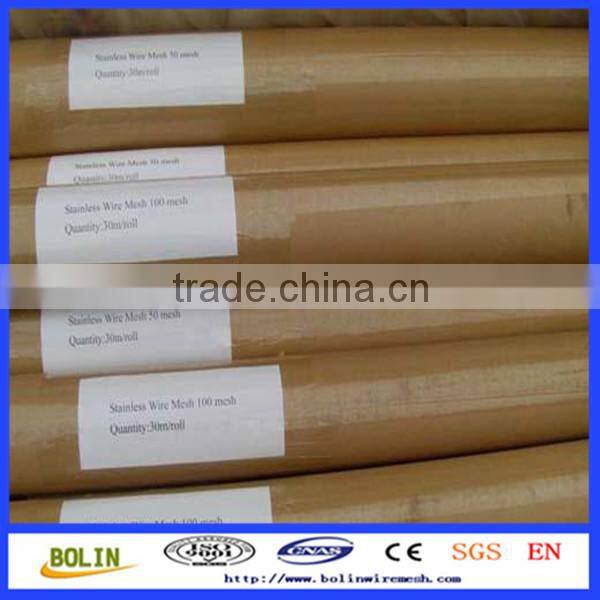

package
Thanks for your time to visit us, any of your kind inquiry will be highly appreciated all the time.
