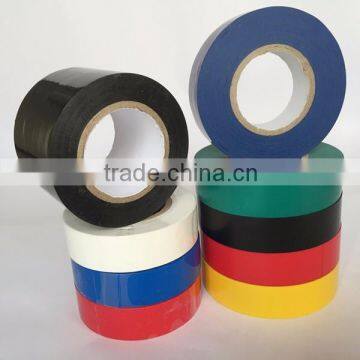

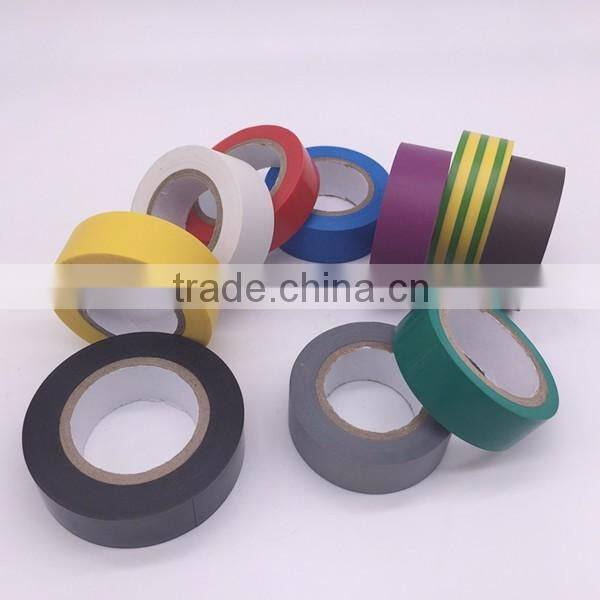

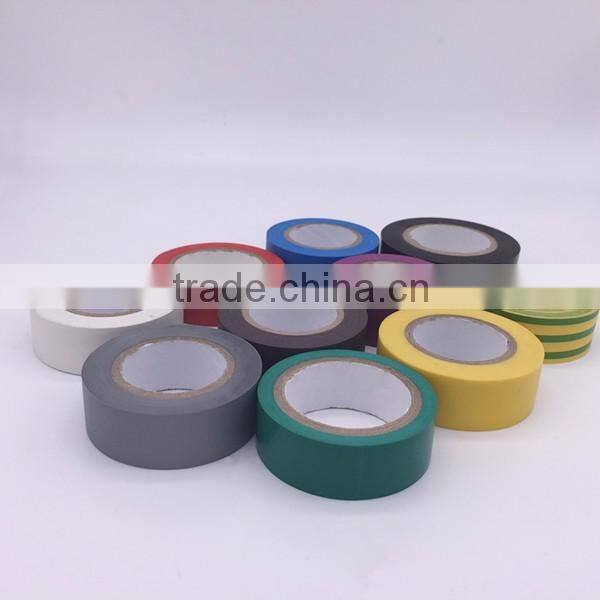

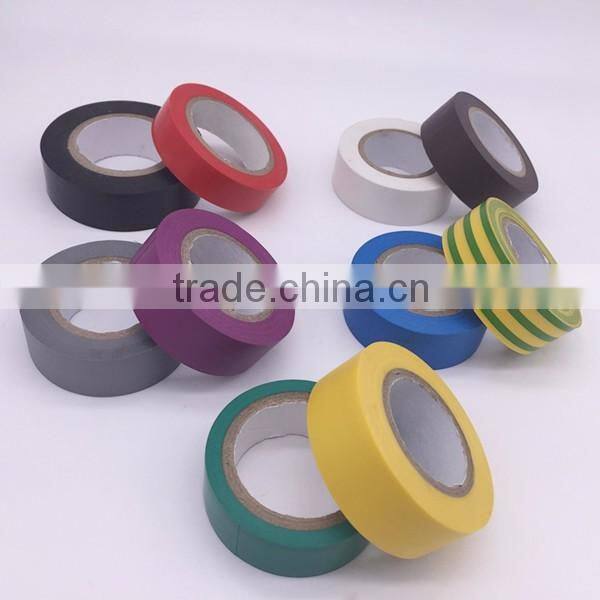

Easy Wrap General Purpose Electrical Rainbow tape
PVC tape,electrical quality(600V), is made from soft pvc film as backing material, coated with rubber pressure-sensitive adhesive which allows it to be streched for easier application. Working temperature
from -18°C to +80°C. It is specially conceived for professional electrical insulating applications where environmental safety is concerned.
Characteristics
• Length: 5m-20m
• Width: 15mm-50mm
• Thickness: 0.12mm-0.20mm

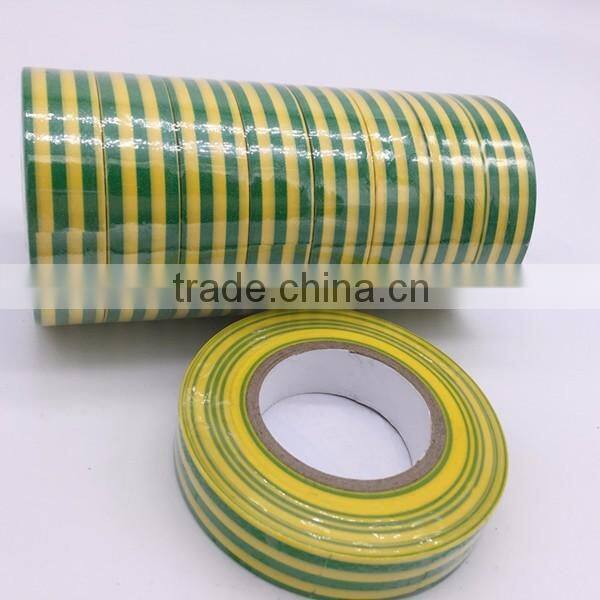

• Color: black,white,yellow,blue,green,red,yellow-green/Earth,clear.
Technical Data:
Property |
Unit |
HT12 |
HT13 |
HT15 |
HT18 |
Testing method |
Total thickness |
mm |
0.12 |
0.13 |
0.15 |
0.18 |
ASTM D1000 |
Tensile strength |
N/cm |
18 |
20 |
22 |
26 |
ASTM D1000 |
Elongation |
% |
160 |
180 |
190 |
200 |
ASTM D1000 |
Adhesion to steel |
N/cm |
1.5 |
1.5 |
1.5 |
1.5 |
ASTM D1000 |
Temperature rating |
°C |
80 |
80 |
80 |
80 |
ASTM D1000 |
Marks: Different sizes and OEM service are available. Pls Inquiry for more information.

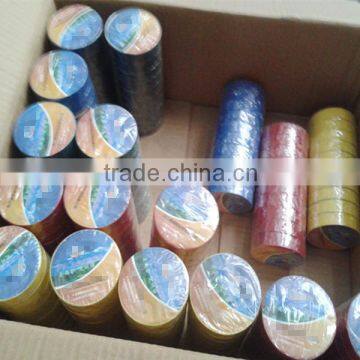

Packing: Each roll shrink or wrap individually, 10rolls per tower,250/ 500rolls per box.
Wecome your inquiry,pls contact us if you interested in our pvc tape.
